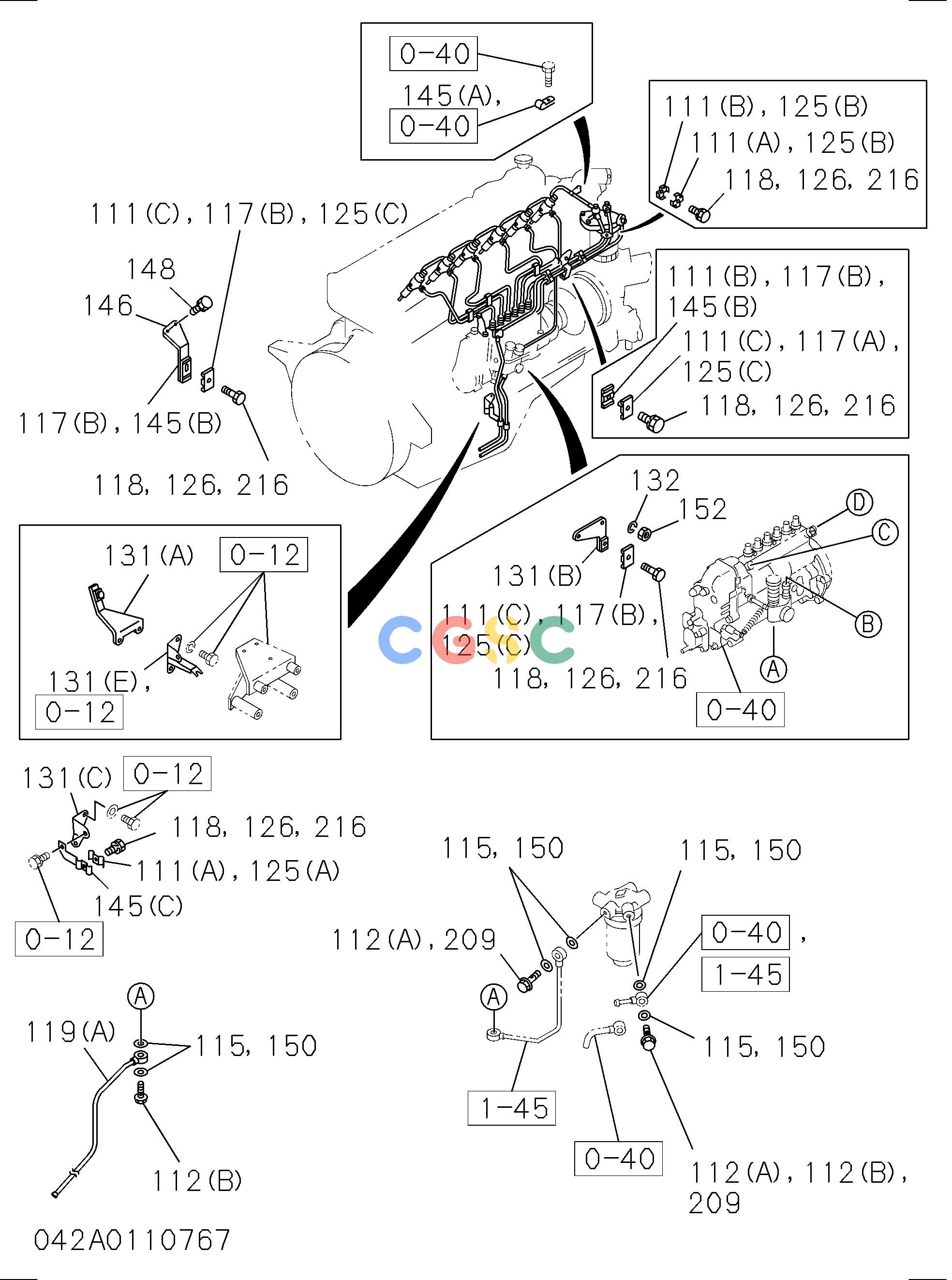

日立零件查询（CG45）FUEL PUMP AND PIPE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
626 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 107. | 5154115060 | [1] | PIPE; FUEL,FEED PUMP TO FUEL FILTER | |
| 119(B). | 5154115070 | [1] | PIPE; FUEL,FUEL FILTER TO INJ PUMP | |
| 123(A). | 5154117531 | [1] | PIPE; FUEL,FUEL FILTER LEAK OFF | |
| 124. | 1094680021 | [1] | NUT; CAP,FUEL PIPE | |
| 125(C). | 5097091030 | [1] | CLIP; FUEL PIPE | |
| 125(C). | 5097091040 | [1] | CLIP; FUEL PIPE | WO/TUBE L=45 |
| 145(A). | 9095245550 | [1] | CLIP; FUEL PIPE | |
| 145(B). | 5097091040 | [1] | CLIP; FUEL PIPE | |
| 150. | 1096300850 | [2] | GASKET; FUEL PIPE | ID=14.2 OD=19.2 |
| 150. | 1096300850 | [4] | GASKET; FUEL PIPE | ID=14.2 OD=19.2 |
| 209. | 1096750860 | [2] | BOLT; EYE,FUEL FILTER | M14X27 |
| 212(A). | 1132600011 | [1] | VALVE; OVERFLOW | |
| 216. | 0500406300 | [1] | BOLT; CLIP,FUEL PIPE | |
| 217. | 1096300850 | [1] | GASKET; OVERFLOW VLV | |
