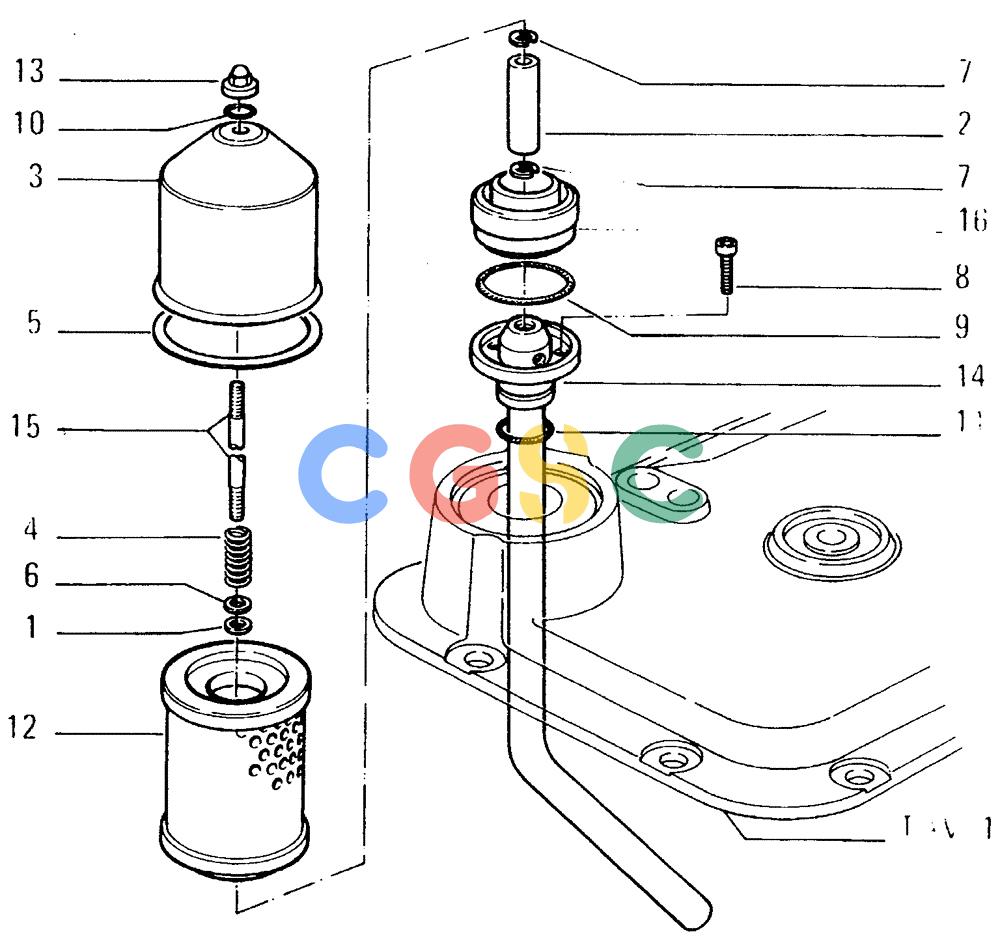

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2770[013]) - REAR TRANSMISSION-OIL FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1008 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4964396 | [1] | OIL SEAL,9mm ID x 18mm OD x 3mm Thk | LECSEAL |
| 2. | 4964869 | [1] | MAGNETIC CORE | MODMAGNETIC ROD |
| 3. | 4979711 | [1] | FILTER BOWL | LEC |
| 4. | 4979713 | [1] | SPRING | LEC Superseded by part number: 75201466 |
| 5. | 4979714 | [1] | SEAL,113mm ID x 124mm OD x 2.5mm Thk | LECSEAL |
| 6. | 12638601 | [1] | WASHER,M10 x 18 x 2 | BHB Superseded by part number: 14499521 |
| 7. | 13404476 | [2] | LOCKING RING | LECSNAP RING 9,6x1,2 |
| 8. | 14306234 | [3] | HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 10.9, Full Thd | LEC Superseded by part number: 14306230 |
| 9. | 14455880 | [1] | O-RING,75.92mm ID x 1.78" Width | LEC-041, 70 Duro, 2.989" ID x .070" Thk (M75.92 ID x 1.78 Thk) Superseded by part number: 172033 |
| 11. | 14464080 | [1] | O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro | LEC3,53x37,69 |
| 12. | 79032229 | [1] | ELEMENT | MKTOIL FILTER Superseded by part number: 1930543 |
| 13. | 79038352 | [1] | NUT | LEC |
| 14. | 79071766 | [1] | RIGID TUBE | LECTUBE Superseded by part number: 79111263 |
| 15. | 79071769 | [1] | STUD | LEC |
| 16. | 79084111 | [1] | RING | LECC2720 Superseded by part number: 76042427, 76042418 |
| 16. | 79098784 | [1] | RING | LECD2720 Superseded by part number: 76042427, 76042418 |
| 10. | 14457281 | [1] | O-RING,0.612" ID x 0.103" Width | TTF-114, Cl 7, .612" ID x .103" Thk |
