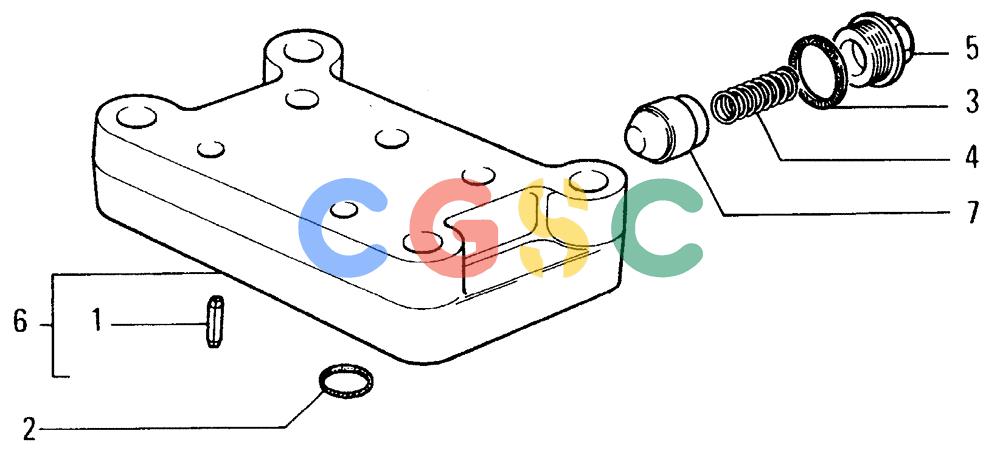

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2770[014]) - REAR TRANSMISSION-TRIMMER VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
964 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 14163670 | [1] | ROLL PIN,M4 x 14, Slotted | TTFSPRING PIN 4,4x14 |
| 3. | 79028876 | [2] | SEAL,21.5mm ID x 28.7mm OD x 2.5mm Thk | LECSEAL |
| 4. | 79035955 | [2] | SPRING | LEC |
| 5. | 79096006 | [2] | PLUG | LEC |
| 6. | 79096008 | [1] | BODY | LEC- ASSEMBLY |
| 7. | 79096007 | [2] | PLUNGER | LEC |
| 2. | 14453181 | [5] | O-RING,0.489" ID x 0.07" Width | TTF-014, Cl 7, .489" ID x .070" Thk (M12.42 ID x 1.78 Thk) |
