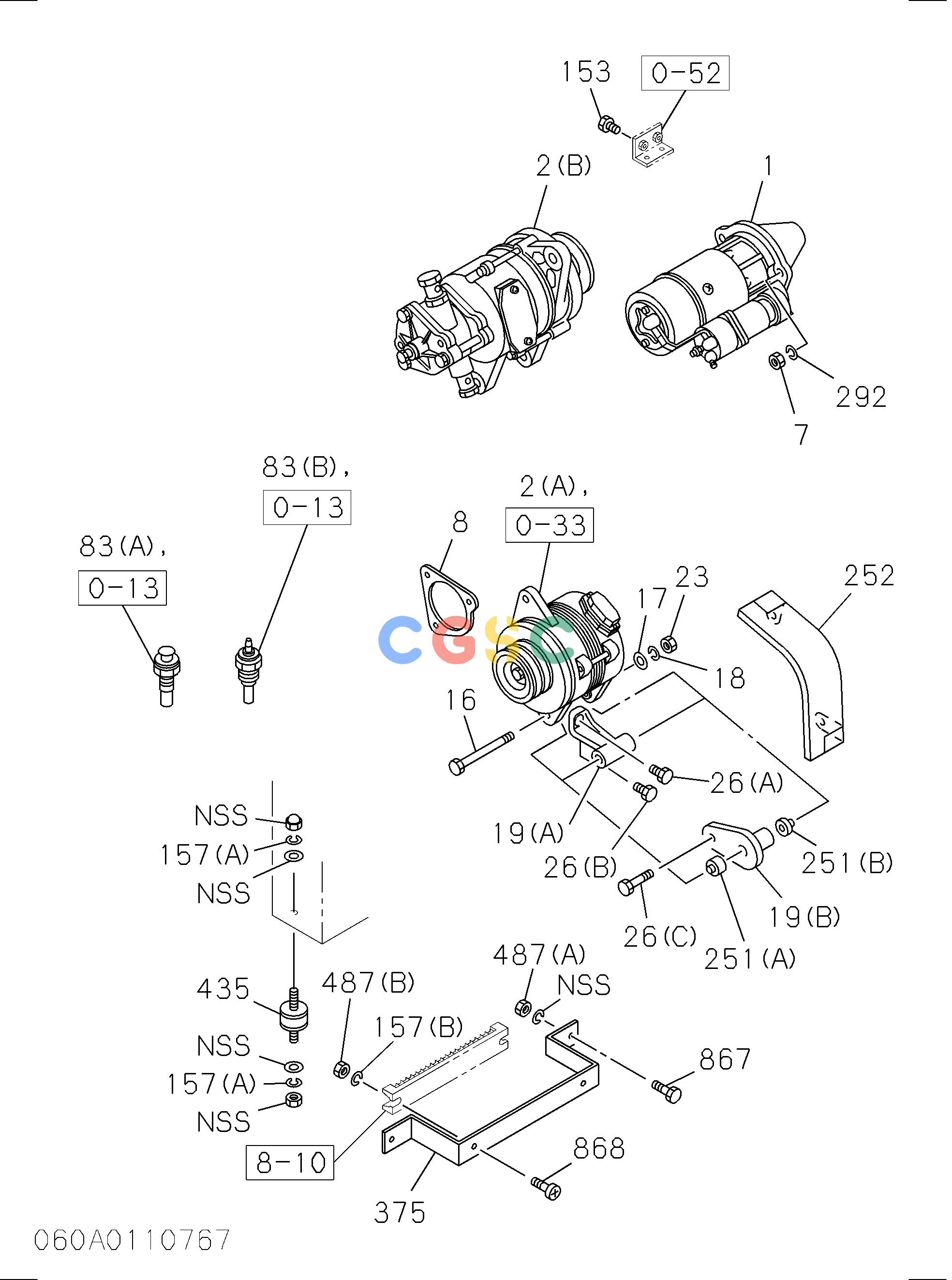

日立零件查询（CG45）ENGINE ELECTRICAL CONTROL PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
967 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1811001911 | [1] | STARTER ASM | 24V 4.5KWSEE FIG-NO 0-65 FOR COMPONENT. |
| 1. | 1811001911 | [1] | STARTER ASM | 24V 4.5KWSEE FIG-NO 0-65 FOR COMPONENT. |
| 1. | 1811003430 | [1] | STARTER ASM | 24V 4.5KWSEE FIG-NO 0-65 FOR COMPONENT. |
| 2(A). | 1812002050 | [1] | GENERATOR ASM | 24V 25ASEE FIG-NO 0-66 FOR COMPONENT. |
| 2(A). | 1812005120 | [1] | GENERATOR ASM | 12V 30ASEE FIG-NO 0-66 FOR COMPONENT. |
| 7. | 9991104120 | [3] | NUT; STARTER | M12 |
| 16. | 1090001331 | [1] | BOLT; GEN | M14X135 |
| 17. | 9091605140 | [1] | WASHER; PL,GEN | ID=14 OD=26 T=2.3 |
| 18. | 9091505140 | [1] | WASHER; LK,GEN | ID=14 |
| 19(A). | 5197110312 | [1] | BRACKET; GEN | |
| 23. | 9991104140 | [1] | NUT; GEN | M14 RH THREAD |
| 26(A). | 0500410250 | [1] | BOLT; GEN BRKT | |
| 26(A). | 0280810250 | [1] | BOLT; GEN BRKT | |
| 26(B). | 0500410350 | [2] | BOLT; GEN BRKT | |
| 26(B). | 0286810350 | [2] | BOLT; GEN BRKT | |
| 38. | 1814200040 | [1] | RESISTOR; CONT,GLOW PLUG | 24V |
| 56(A). | 5831510030 | [1] | SWITCH; OIL PRESSURE WARNING | |
| 56(D). | 9827200690 | [1] | SWITCH; OIL PRESSURE WARNING | P10 |
| 56(E). | 1824100180 | [1] | SWITCH; OIL PRESSURE WARNING | P10 |
| 83(B). | 9831514320 | [1] | THERMOMETER UNIT | |
| 88. | 9099022380 | [1] | ADAPTER; SW | |
| 89(A). | 1824500140 | [1] | SWITCH; OVER HEAT WARNING | M16 95ﾟC |
| 89(A). | 1824500140 | [1] | SWITCH; OVER HEAT WARNING | C M16 95ﾟC |
| 292. | 9091505120 | [3] | WASHER; LK,STARTER | ID=12 |
| 293. | 9829322110 | [1] | CABLE; STARTER EARTH | |
| 488(B). | 1819001372 | [1] | STOPPER; ENG | |
| 554(A). | 1819090980 | [1] | CABLE ASM; ENG STOP | L=1020 |
| 647(C). | 1825530140 | [1] | RELAY; HOUR METER | A |
| 647(B). | 8971140000 | [1] | RELAY; HOUR METER | |
