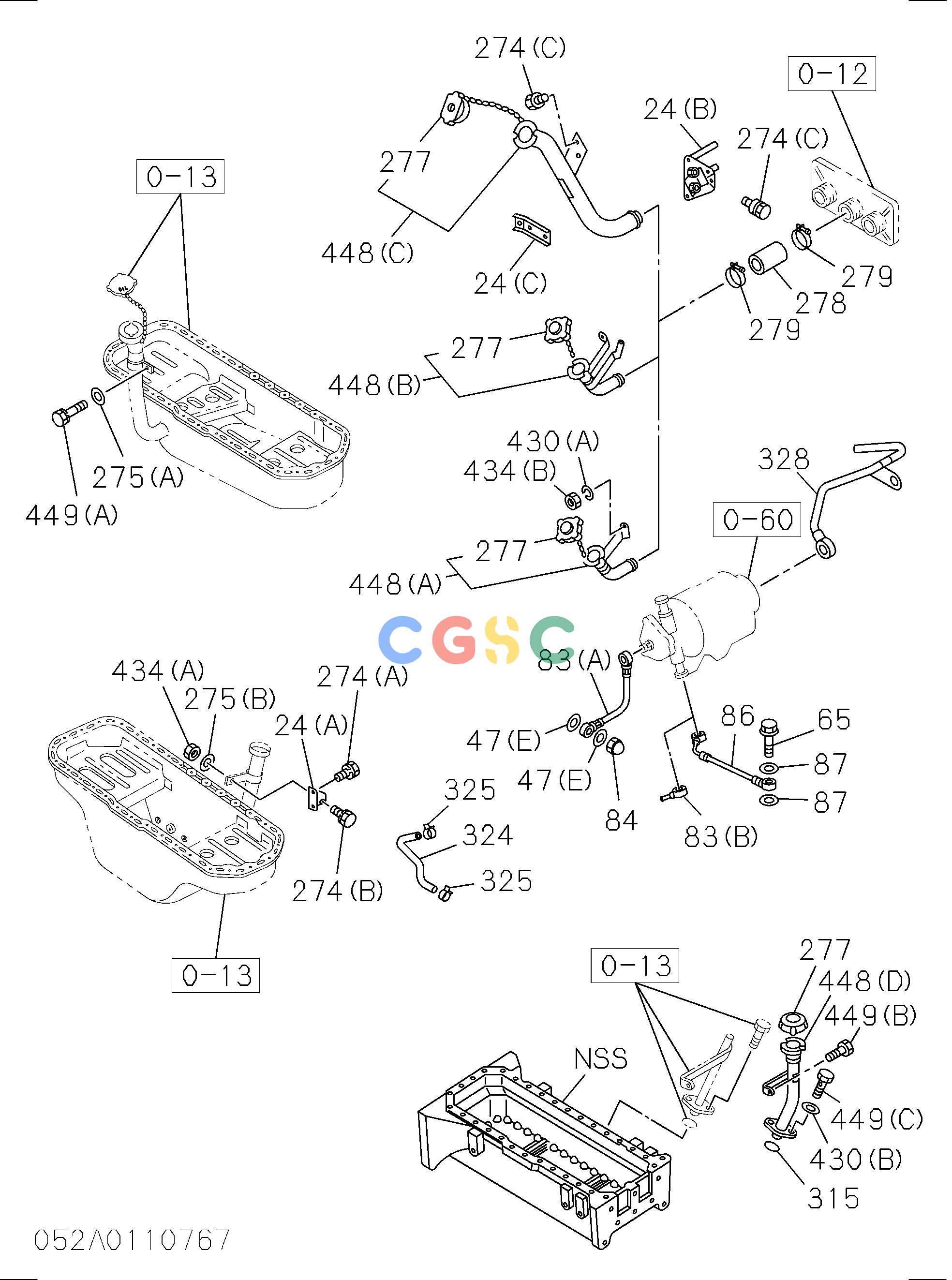

日立零件查询（CG45）OIL AND VACUUM PIPING; ENGINE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
773 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 5133112050 | [1] | PIPE; OIL,INJ PUMP TO C/BL | |
| 3(A). | 1096300830 | [2] | GASKET; EYE BOLT,OIL PIPE | ID=10.2ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 37(A). | 5133111190 | [1] | PIPE; OIL,FILTER TO COOLER | |
| 40(A). | 0500408400 | [4] | BOLT; OIL PIPE | A |
| 40(A). | 0286808400 | [4] | BOLT; OIL PIPE | |
| 47(A). | 9099211880 | [2] | GASKET; OIL PIPE | ID=18ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 47(B). | 1096234620 | [2] | GASKET; OIL PIPE | ID=22.8ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 62. | 1133115322 | [1] | PIPE; OIL,PUMP TO C/BL | |
| 110. | 9098440220 | [1] | NUT; CAP OIL PIPE | M13 |
| 134. | 9099171051 | [1] | CLIP; PIPE,INJ PUMP | M19 |
| 143. | 0500408400 | [4] | BOLT; OIL PIPE,OIL PUMP TO C/BL | |
| 143. | 0286808400 | [4] | BOLT; OIL PIPE,OIL PUMP TO C/BL | |
| 143. | 0500408400 | [4] | BOLT; OIL PIPE,OIL PUMP TO C/BL | |
| 275(A). | 9091606080 | [1] | WASHER; PL,BRKT OIL FILLER | |
