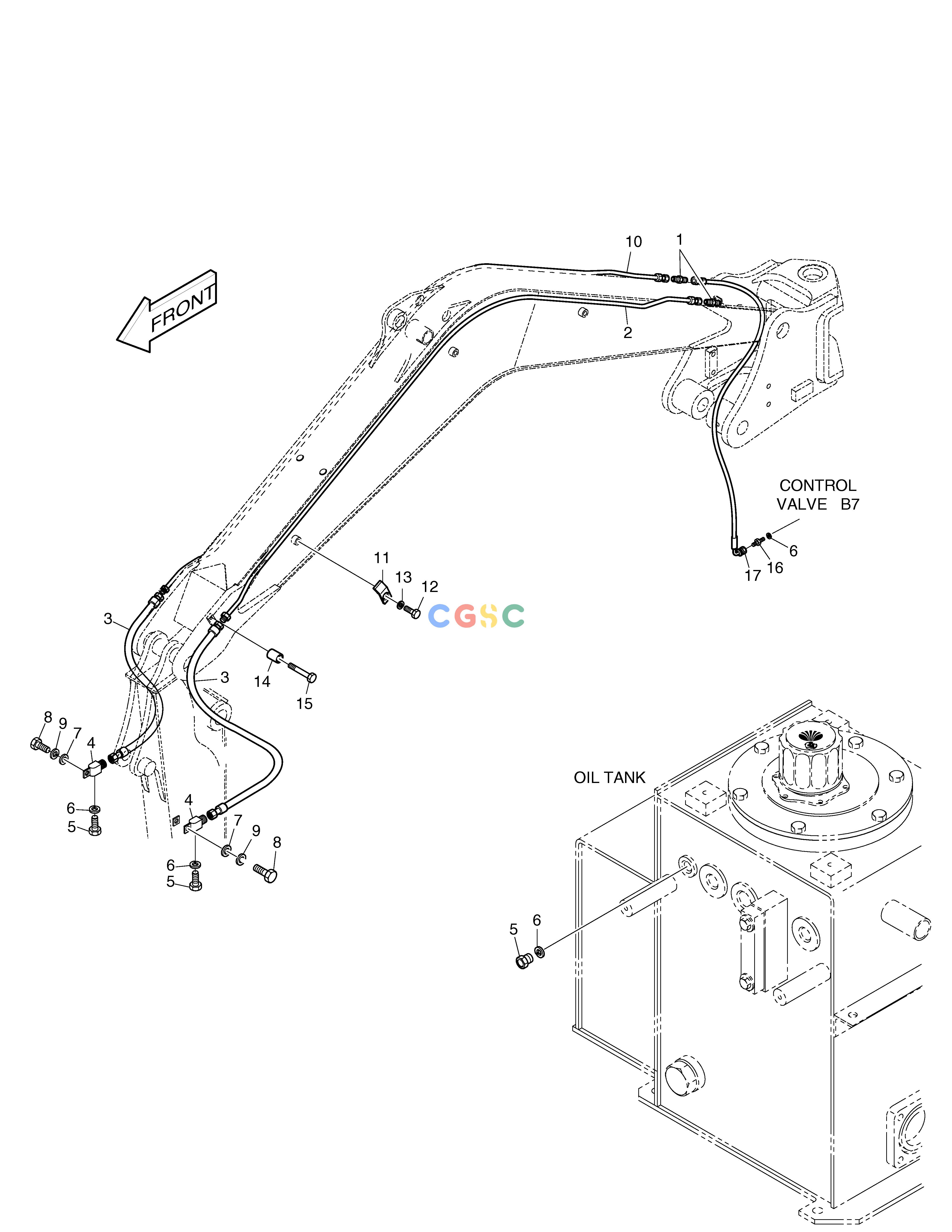

斗山零件查询FRONT PIPING(2)-TWO WAY SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
249 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00616
|
[-] |
FRONT PIPING
|
|
| 1. |
2181-2718
|
[2] |
ADAPTER;JOINT
|
|
| 10. |
2182-1659B
|
[1] |
PIPE
|
|
| 11. |
2124-1631
|
[6] |
CLAMP
|
|
| 12. |
S0508653
|
[6] |
BOLT
|
|
| 13. |
S5102503
|
[6] |
. WASHER
|
|
| 14. |
2114-1886A
|
[2] |
COLLAR
|
|
| 15. |
S0558553
|
[2] |
BOLT;HEX.
|
|
| 16. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 17. |
DS2055684
|
[1] |
HOSE PF3/8-1400L
|
|
| 2. |
2182-1658B
|
[1] |
PIPE
|
|
| 3. |
2184-1054D71
|
[2] |
HOSE PF3/8-750L
|
|
| 4. |
2181-2669
|
[2] |
ELBOW
|
|
| 5. |
2181-1950D2
|
[2] |
PLUG
|
|
| 6. |
S8000141
|
[2] |
O-RING
|
|
| 7. |
S5010613
|
[2] |
WASHER
|
|
| 8. |
S0511853
|
[2] |
BOLT
|
|
| 9. |
S5102603
|
[2] |
. WASHER
|
|
