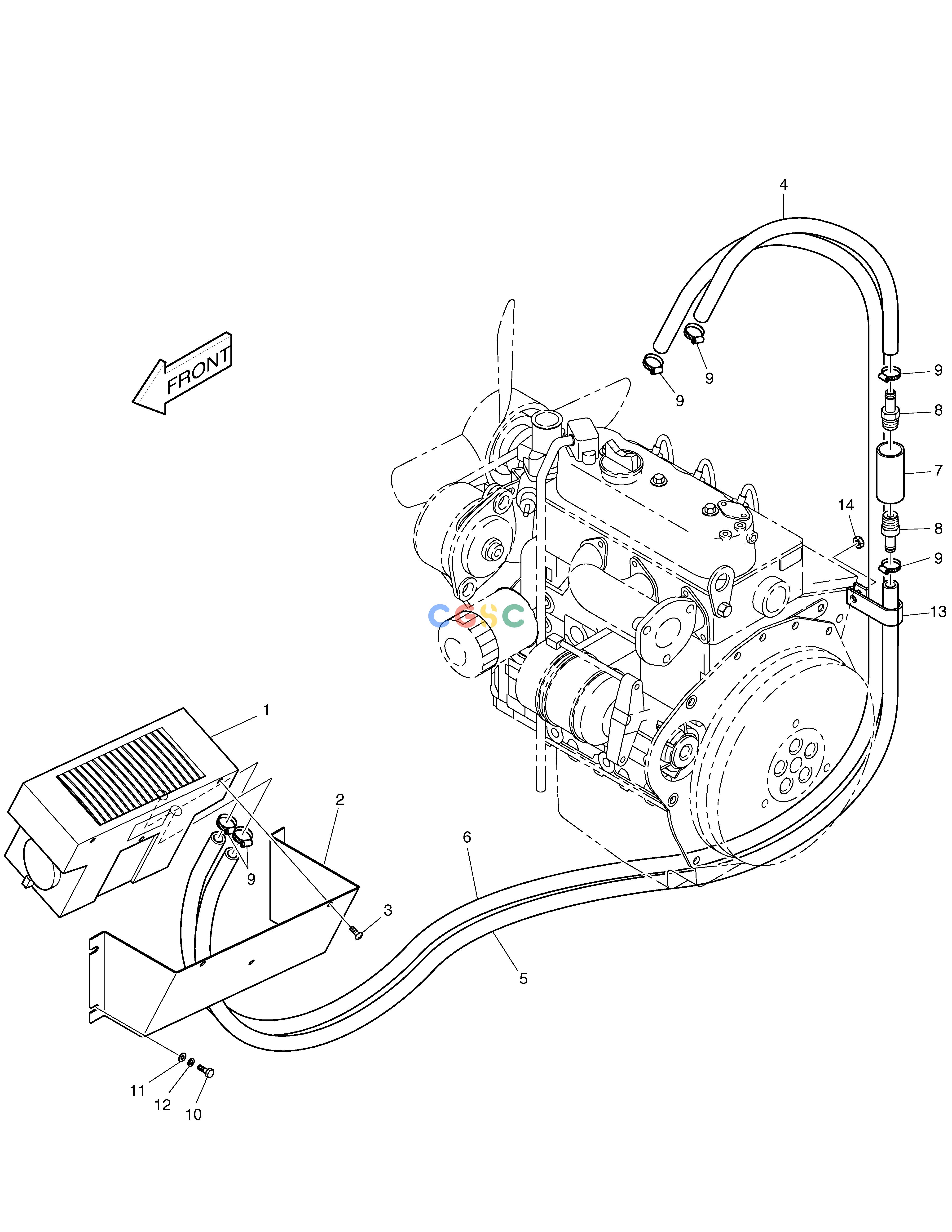

斗山零件查询HEATER SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
357 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00603
|
[-] |
HEATER ASS'Y
|
|
| 1. |
920-00095
|
[1] |
HEATER
|
|
| 10. |
S0504653
|
[4] |
. BOLT
|
|
| 11. |
S5010313
|
[4] |
WASHER
|
|
| 12. |
S5102303
|
[4] |
. WASHER
|
|
| 13. |
2124-1509D3
|
[1] |
CLIP D24/M8
|
|
| 14. |
2121-1305
|
[1] |
NUT
|
|
| 2. |
621-01392A
|
[1] |
COVER;HEATER
|
|
| 3. |
S3654523
|
[3] |
SCREW
|
|
| 4. |
2185-1308D31
|
[1] |
HOSE
|
|
| 5. |
2185-1308D32
|
[1] |
HOSE-1600L
|
|
| 6. |
2185-1308D13
|
[1] |
HOSE
|
|
| 7. |
186-00001
|
[1] |
COCK;DRAIN
|
|
| 8. |
181-00096
|
[2] |
NIPPLE;HOSE
|
|
| 9. |
S8450016
|
[6] |
. CLAMP
|
|
