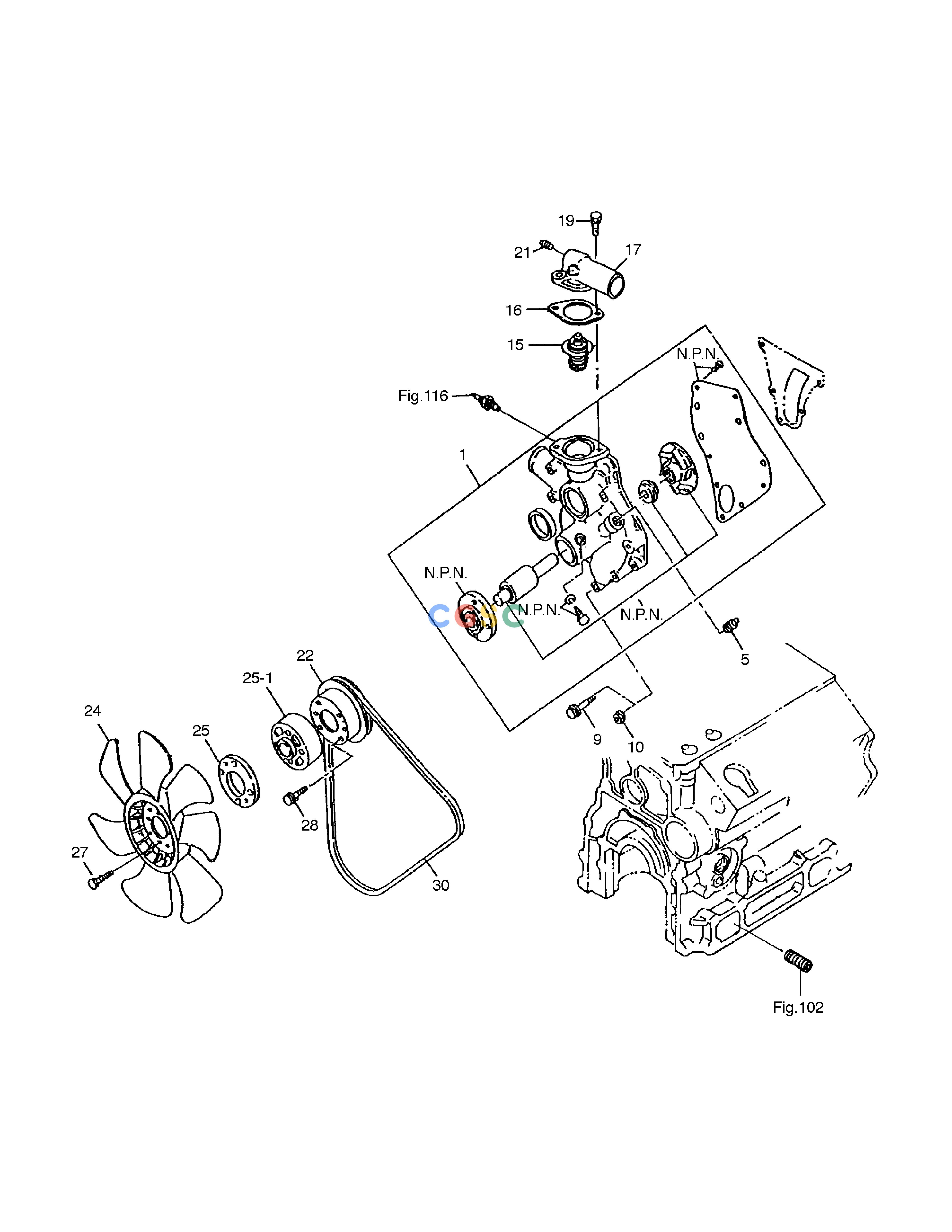

斗山零件查询COOLING SYSTEM SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
658 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
897069-8821
|
[1] |
PUMP ASS'Y;WATER
|
|
| 10. |
091150-2080
|
[2] |
NUT;EXH MANIFOLD
|
|
| 15. |
894325-5131
|
[1] |
THERMOSTAT
|
|
| 16. |
894325-9561
|
[1] |
PACKING;OUTLET PIPE
|
|
| 17. |
897104-7500
|
[1] |
PIPE;WATER OUTLET
|
|
| 19. |
028080-8400
|
[1] |
BOLT;W/P FIX L=40
|
|
| 21. |
509605-0050
|
[1] |
PLUG;HEATER PT3/8
|
|
| 22. |
897074-7120
|
[1] |
PULLEY;FAN D=116
|
|
| 24. |
897039-6510
|
[1] |
FAN ASS'Y D=360 7 SUCTION
|
|
| 25. |
897063-4001
|
[1] |
SPACER;FAN-PULLEY T=4.5
|
|
| 25-1. |
913642-0770
|
[1] |
SPACER;FAN-PULLEY T=26
|
|
| 27. |
028080-8450
|
[1] |
BOLT;FAN FIX
|
|
| 28. |
020800-6120
|
[2] |
BOLT;PULLEY-W/PUMP
|
|
| 30. |
897068-7980
|
[1] |
BELT;COOLING FAN L=836
|
|
| 5. |
509605-0050
|
[1] |
PLUG;HEATER PT3/8
|
|
| 9. |
028080-8400
|
[2] |
BOLT;W/P FIX L=40
|
|
