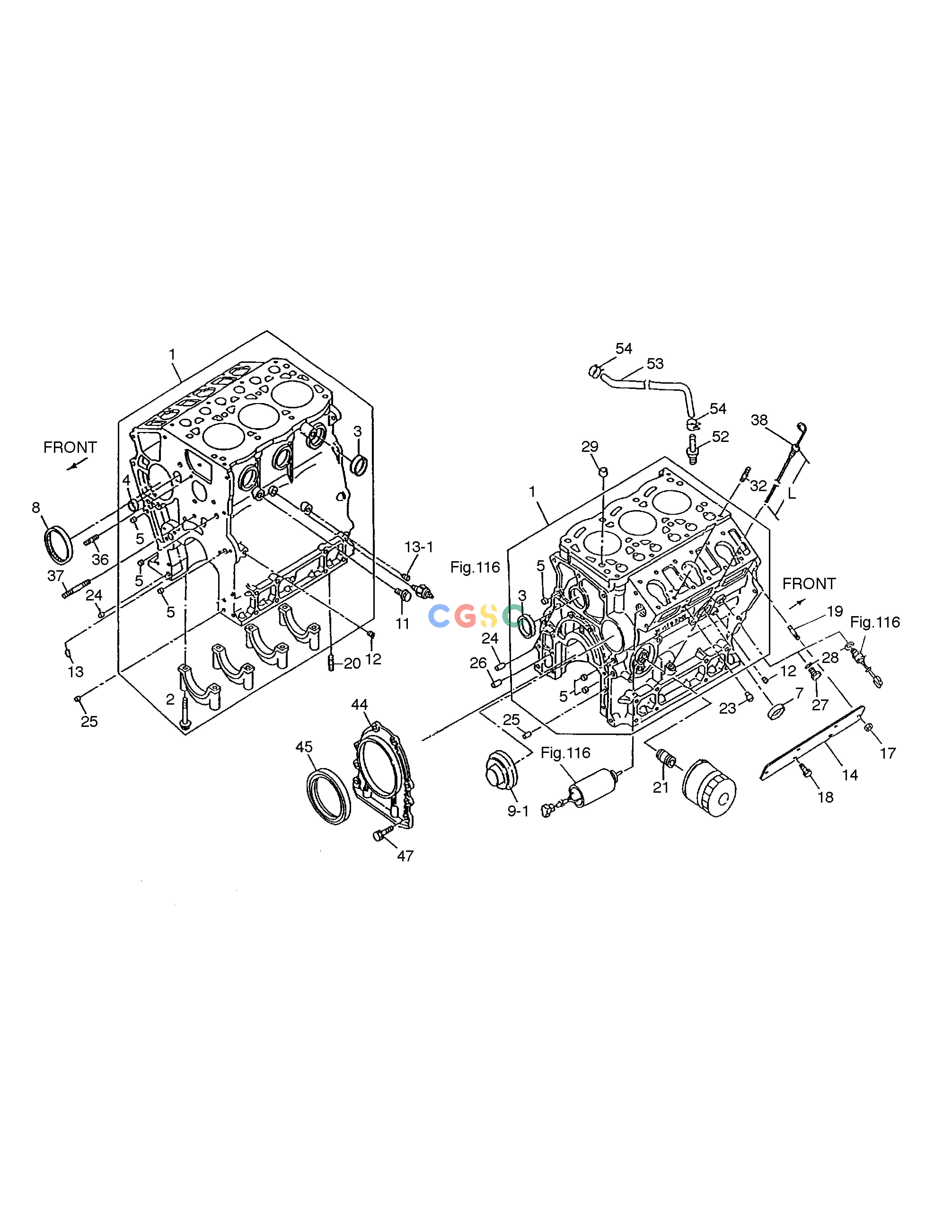

斗山零件查询CYLINDER BLOCK SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
593 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
897106-1943
|
[1] |
CYLINDER BLOCK ASS'Y
|
|
| 11. |
909664-0010
|
[1] |
PLUG;WASHER DRAIN PT1/4
|
|
| 12. |
109605-0500
|
[1] |
PLUG;OILGALLERY PT1/8
|
109605-0040
|
| 12. |
109605-0040
|
[1] |
PLUG;OILGALLERY PT1/8
|
|
| 13. |
109605-0040
|
[1] |
PLUG;OILGALLERY PT1/8
|
|
| 13-1. |
109605-0190
|
[1] |
PLUG;OILGALLERY PT1/8
|
|
| 14. |
897106-2031
|
[1] |
COVER;INJ PUMP HOUSING
|
|
| 17. |
091150-2060
|
[2] |
NUT;COVER FIX
|
|
| 18. |
028080-6140
|
[4] |
BOLT;COVER FIX
|
|
| 19. |
894343-8960
|
[1] |
STUD;INJ.PUMP HSG COV
|
|
| 19. |
904110-6160
|
[1] |
STUD;INLET PIPE
|
|
| 2. |
894167-4711
|
[8] |
BOLT;METAL CAP FIX
|
|
| 20. |
894325-5950
|
[2] |
STUD;INJ FILTER L1=12
|
|
| 21. |
894325-5950
|
[1] |
STUD;INJ FILTER L1=12
|
|
| 23. |
897039-4953
|
[2] |
PIN;CONTROL LINK
|
|
| 24. |
908160-8160
|
[2] |
PIN;STRAIGHT HOUSING
|
|
| 25. |
911229-0581
|
[2] |
DOWEL;OIL PUMP
|
|
| 26. |
908160-6160
|
[2] |
PIN;STRAIGHT RETAINER
|
|
| 26. |
908160-6160
|
[3] |
PIN;STRAIGHT RETAINER
|
|
| 27. |
509604-0160
|
[1] |
PLUG;CYL BLOCK M14
|
|
| 28. |
909571-4140
|
[1] |
PACKING;PLUG
|
909572-0140
|
| 28. |
909572-0140
|
[1] |
PACKING;PLUG
|
|
| 29. |
894200-8190
|
[2] |
DOWEL;CYL HEAD
|
|
| 3. |
894229-8530
|
[4] |
CUP;SEALING D=35
|
|
| 32. |
109305-0050
|
[6] |
STUD;INJ PUMP FIX L=20
|
|
| 36. |
904110-8400
|
[1] |
STUD;WATER PUMP FIX
|
|
| 37. |
904110-8600
|
[1] |
STUD;TIMING CASE L=60
|
|
| 38. |
897043-9421
|
[1] |
LEVEL GAUGE;OIL L=103
|
|
| 4. |
109600-0112
|
[1] |
CUP;SEALING D=22
|
|
| 44. |
897044-7862
|
[1] |
RETAINER;CRANK REAR
|
|
| 45. |
509625-0940
|
[1] |
SEAL;OIL CRANK REAR
|
|
| 47. |
028080-6200
|
[6] |
BOLT;COCER FIX
|
|
| 5. |
509600-0130
|
[4] |
CUP;SEALING D=12
|
|
| 5. |
509600-0130
|
[5] |
CUP;SEALING D=12
|
|
| 5. |
509600-0130
|
[1] |
CUP;SEALING D=12
|
|
| 52. |
511179-0520
|
[1] |
CONNECTOR;PCV
|
|
| 53. |
897083-5901
|
[1] |
HOSE;PCV
|
|
| 54. |
509707-0051
|
[2] |
CLIP;FUEL HOSE
|
|
| 7. |
109600-0121
|
[1] |
CUP;SEALING D=32
|
|
| 8. |
897047-0560
|
[1] |
BEARING;NEEDLE CAM CENT
|
|
| 9-1. |
897047-1421
|
[1] |
PLUG;THRUST CAM
|
|
