纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.1010[001]) - SUSPENSION-ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
154 次

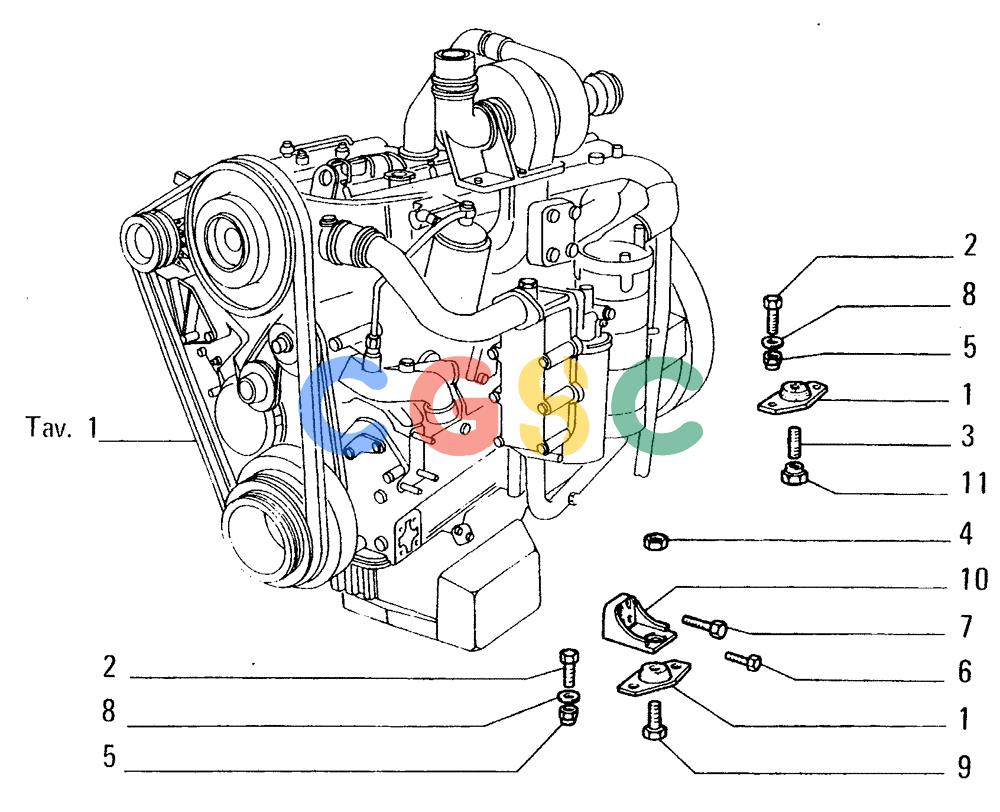

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4955094 | [4] | ISOLATOR | LECBLOCK |
| 2. | 11391531 | [8] | BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd | LECSCREW 16x1,5x45 Superseded by part number: 11391537 |
| 3. | 11813930 | [2] | STUD | LEC24x2x97 |
| 4. | 12575321 | [2] | NUT,M24 x 2, Cl 10 | LECNUT, LOCK, M24 x 2, Cl 10 |
| 5. | 15504021 | [8] | NUT,M16 x 1.5 | MKTNUT, LOCK, M16 x 1.5, Cl 10 |
| 6. | 14274831 | [4] | LOCK BOLT,Self Lkg, M12 x 1.25 x 45mm | TTF12x1825x45 Superseded by part number: 14274834 |
| 7. | 14258131 | [4] | SCREW,Hex, M16 x 1.5 x 50mm, Cl 10.9 | LEC16x1,5x50 |
| 8. | 14496931 | [8] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 9. | 11398131 | [2] | BOLT,Hex, M24 x 2 x 80mm, Cl 10.9 | LEC Superseded by part number: 11398134 |
| 10. | 79011784 | [1] | SUPPORT | LEC- FRONT RIGHT |
| 10. | 79013204 | [1] | SUPPORT | LEC- FRONT LEFT |
| 11. | 79013815 | [2] | NUT | LEC |
