纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0450[001]) - HOOKS-ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
868 次

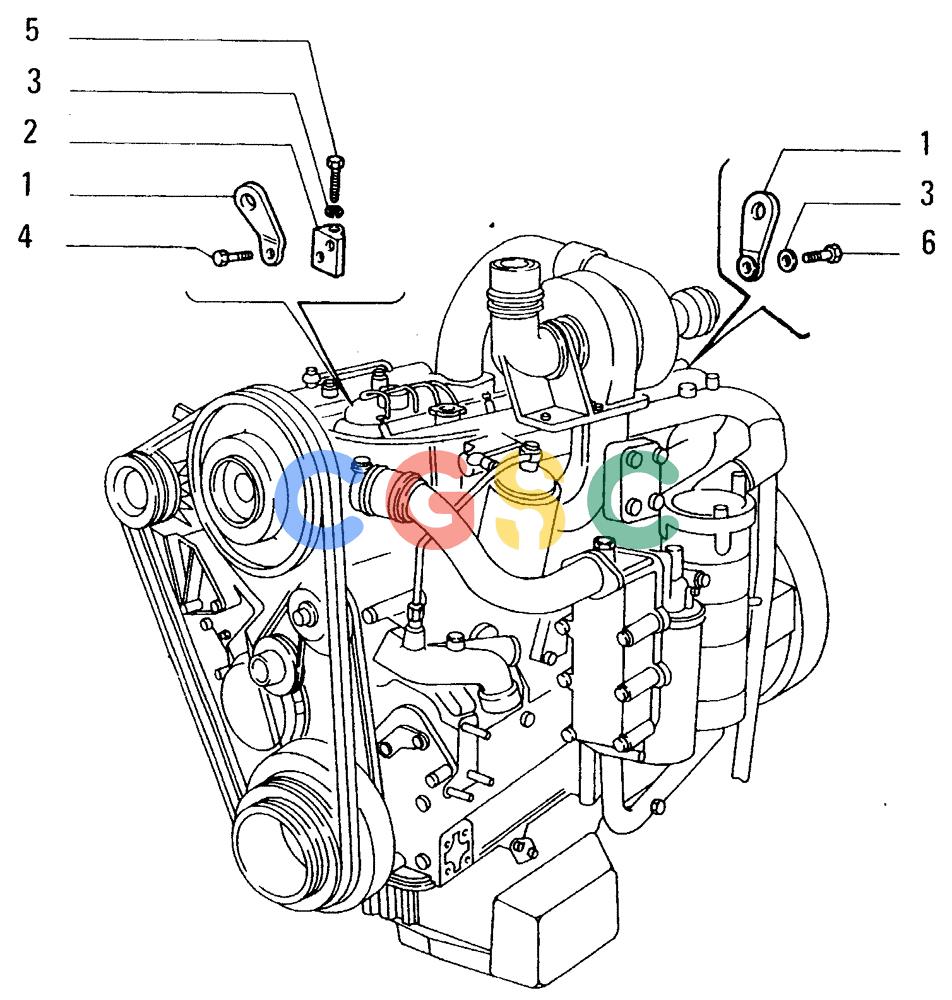

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4718603 | [2] | EYELET | BREHOOK |
| 2. | 4723225 | [1] | BLOCK | LEC |
| 3. | 11198371 | [2] | BELLEVILLE WASHER,Belleville, M10.5 | MKTLOCKWASHER 10,5x20 Superseded by part number: 11198374 |
| 4. | 11307031 | [1] | BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9 | TORSCREW 10x1,25x40 |
| 5. | 11343731 | [1] | SCREW,Hex, M10 x 1.25 x 65mm, Cl 10.9 | LEC10x1,25x65 Superseded by part number: |
| 6. | 14233421 | [1] | LOCK BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd | MKT40V Superseded by part number: 14233424 |
