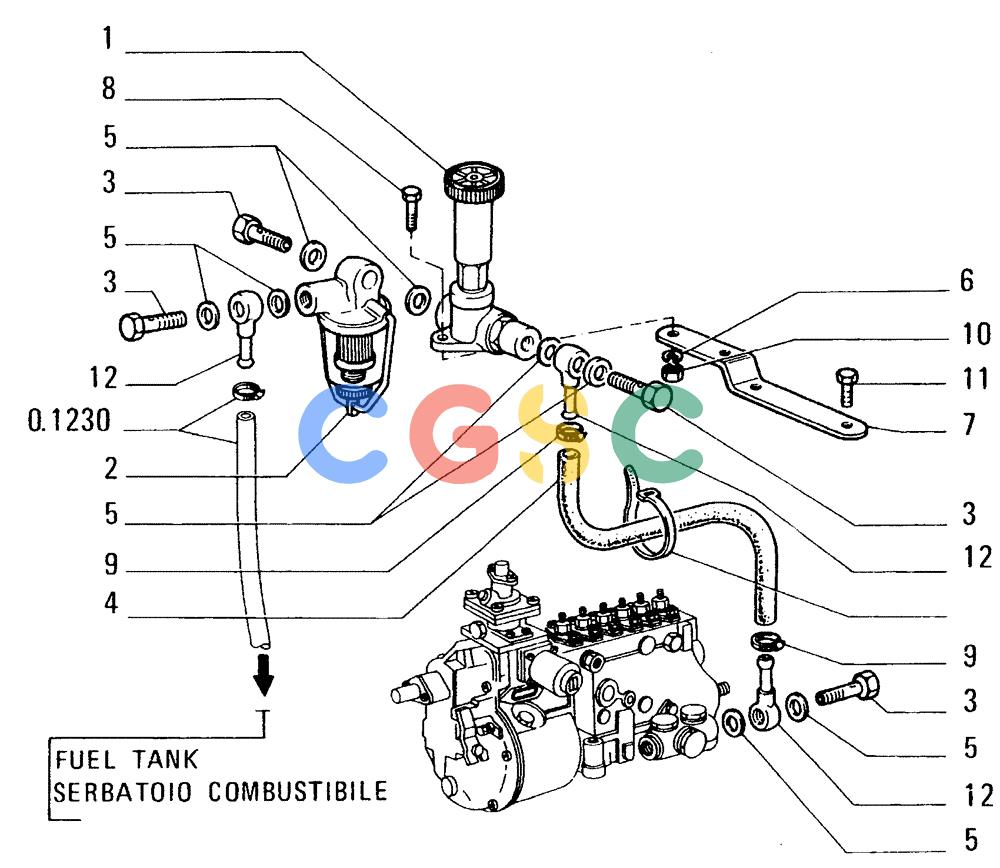

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.1010[004]) - FUEL FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
309 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4797317 | [1] | FUEL PUMP | LECPUMP |
| 2. | 4797320 | [1] | FUEL FILTER | LECr> Superseded by part number: 4822227 |
| 3. | 10184317 | [4] | BANJO BOLT,M14 x 1.5 x 27mm | BHBFITTING 14x1,5x27 Superseded by part number: 10184311 |
| 4. | 19056787 | [1] | FLEXIBLE HOSE | LECHOSE 11x3,75 |
| 5. | 79035959 | [8] | SEAL | LECSEAL Superseded by part number: 44906168 |
| 6. | 14496431 | [2] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 7. | 79081674 | [1] | BRACKET | LEC |
| 8. | 10902631 | [2] | BOLT,Hex, M6 x 25mm, Cl 10.9 | BHB Superseded by part number: 10902633 |
| 9. | 79084753 | [2] | HOSE CLIP,M10-18 | LECCLAMP, HOSE, M10-18 |
| 10. | 15896221 | [2] | NUT,Hex, M6, 5.20mm High, Cl 10 | ZED Superseded by part number: 86500688 |
| 11. | 16043431 | [2] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 12. | 4783070 | [3] | BANJO FITTING | LECFITTING Superseded by part number: 98417523 |
