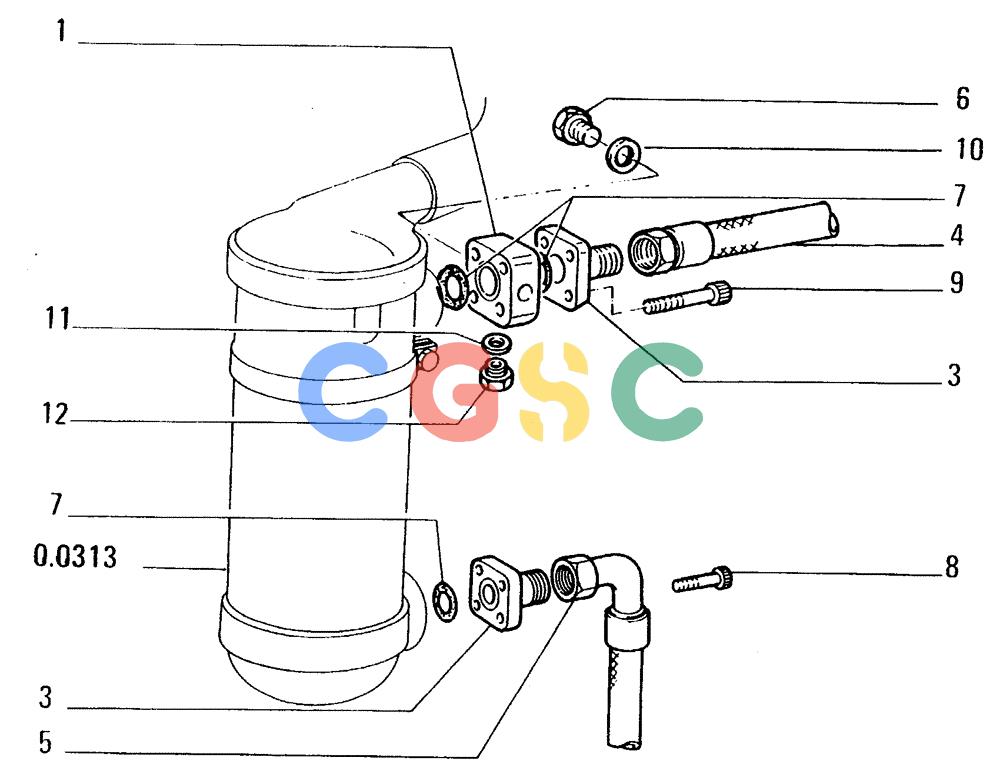

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.1010[005]) - PIPING-HEAT EXCHANGER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
583 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79084881 | [1] | SPACER | LEC |
| 3. | 79083397 | [2] | FLANGE | LEC |
| 4. | 79072504 | [1] | FLEXIBLE HOSE | LECHOSE ASSY |
| 5. | 79072505 | [1] | FLEXIBLE HOSE | LECHOSE ASSY |
| 6. | 4741955 | [1] | PLUG | LEC |
| 7. | 14458280 | [3] | O-RING,31.42mm ID x 2.62mm | LEC0-RING 2,62x31,42 Superseded by part number: 14458281 |
| 8. | 14307531 | [4] | HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 10.9, Full Thd | LEC10x1,25x30 |
| 9. | 14308131 | [4] | HEX SOC SCREW,M10 x 1.25 x 60mm, Cl 10.9 | LEC10x1,25x60 |
| 10. | 79028953 | [1] | SEAL,16.45mm ID x 25.55mm OD x 2.1mm Thk | LECSEAL |
| 11. | 79028876 | [1] | SEAL,21.5mm ID x 28.7mm OD x 2.5mm Thk | LEC |
| 12. | 4595833 | [1] | PLUG | MOD |
