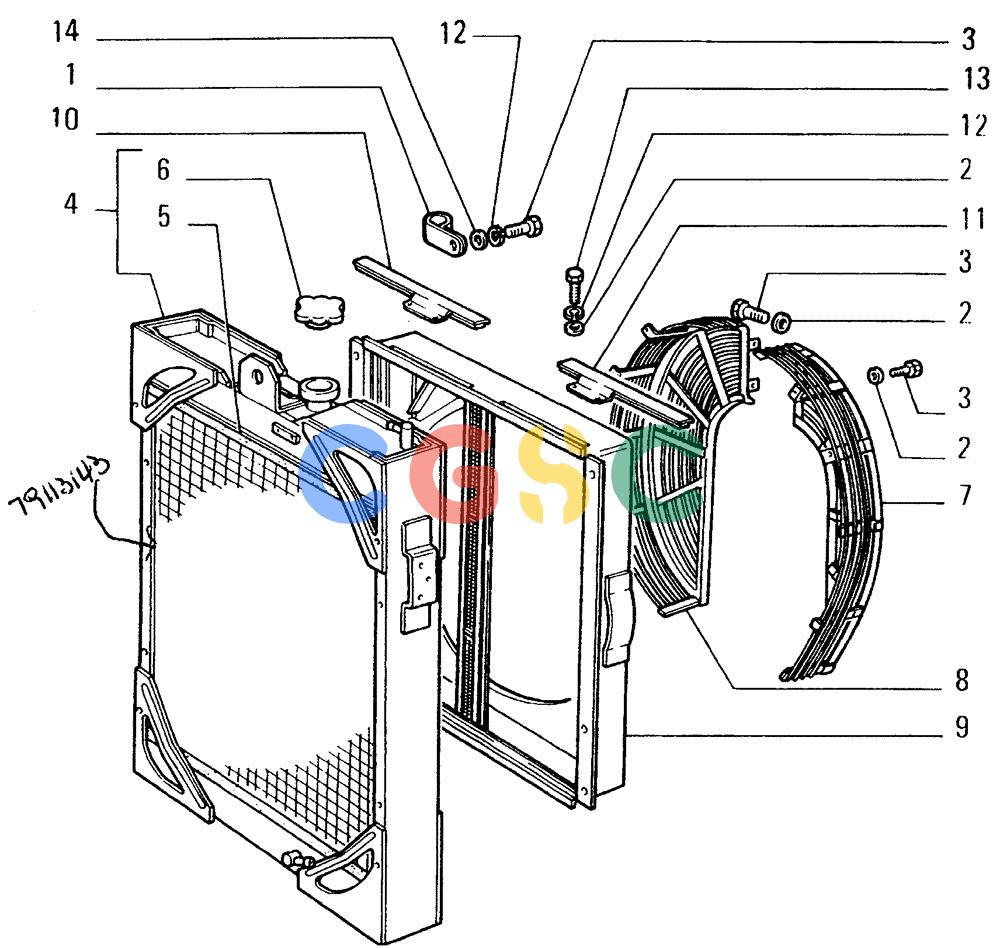

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.1660[001]) - ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
142 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10450190 | [2] | CLAMP,10mm, Coat, 9mm Bolt Hole, P Type | JESCLIP 66x9 Superseded by part number: |
| 2. | 14496531 | [12] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 3. | 16043231 | [16] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 4. | 79088080 | [1] | RADIATOR | LECWATER RADIATOR - ASSEMBLY Superseded by part number: 79093120, 79088081 |
| 5. | 79093120 | [4] | SEAL | LEC |
| 6. | 76008464 | [1] | PLUG | LEC Superseded by part number: 76027863 |
| 7. | 79066506 | [1] | GRILLE | LECGRID |
| 8. | 79066505 | [1] | GRILLE | LECGRID |
| 9. | 79087856 | [1] | CONVEYOR | LECSHROUD C2676 Superseded by part number: 79098892 |
| 9. | 79098892 | [1] | CONVEYOR | LECSHROUD D2676 |
| 10. | 79093121 | [1] | SUPPORT | LEC |
| 11. | 79093124 | [1] | SUPPORT | LEC |
| 12. | 10615679 | [12] | LOCK WASHER,Ext Tooth, M8 | BHBWASHER Superseded by part number: 10615671 |
| 13. | 16043431 | [4] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 14. | 12645031 | [4] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
