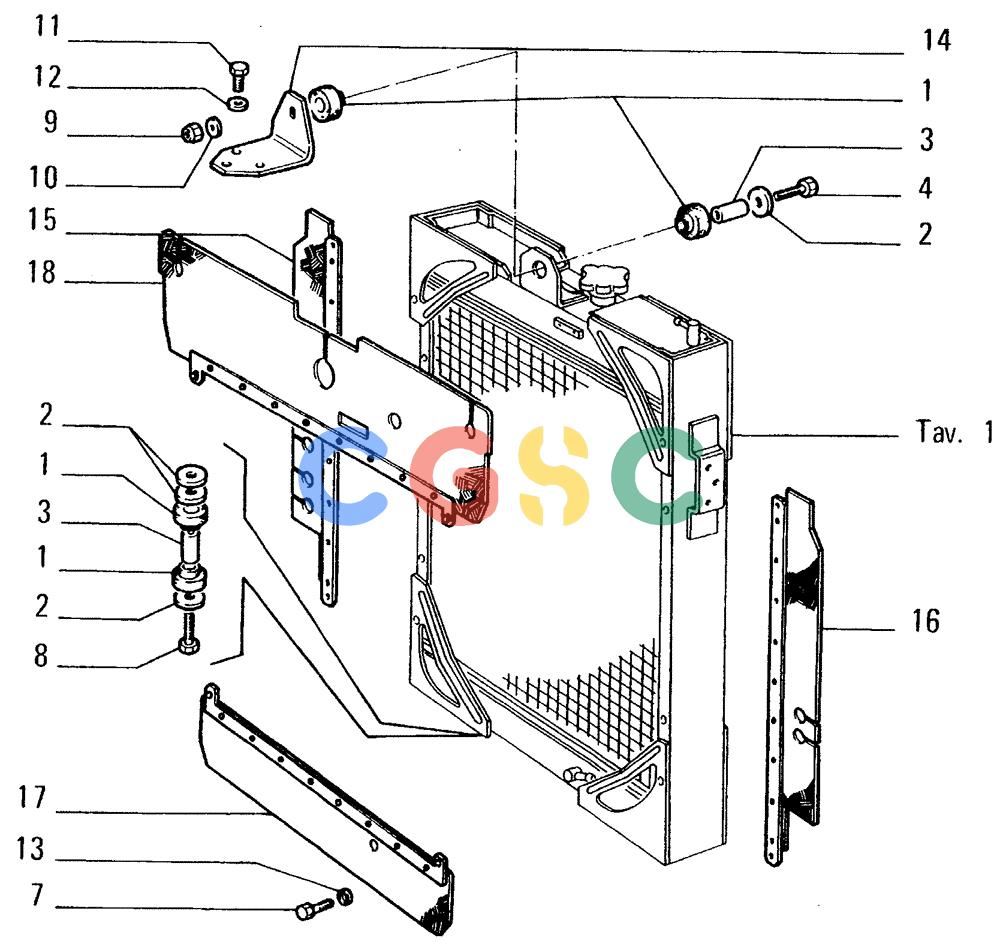

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.1660[002]) - ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
827 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4977098 | [6] | ISOLATOR | LECBLOCK |
| 2. | 4977099 | [15] | WASHER | LEC Superseded by part number: 75223895 |
| 3. | 4977100 | [3] | SPACER | LEC Superseded by part number: 75223896 |
| 4. | 11113831 | [1] | SCREW,Hex, M12 x 80mm, Cl 10.9 | LECM12 x 80, 10.9 Superseded by part number: 11113821, 412085 |
| 7. | 16043434 | [6] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16043431 |
| 8. | 11113634 | [2] | SCREW | LEC Superseded by part number: 11113631 |
| 9. | 12577521 | [1] | NUT,M12 x 1.75 | LECNUT, LOCK, M12 x 1.75 |
| 10. | 12648531 | [1] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 11. | 11106434 | [3] | BOLT,Hex, M10 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11106431 |
| 12. | 12626231 | [3] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 13. | 14496531 | [6] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 14. | 79086539 | [1] | BRACKET | LEC |
| 15. | 79076651 | [1] | GUARD | LEC- RIGHT C2706 Superseded by part number: 79099574 |
| 15. | 79099574 | [1] | GUARD | LEC- RIGHT D2706 |
| 16. | 79076652 | [1] | GUARD | LEC- LEFT C2706 Superseded by part number: 79098202 |
| 16. | 79098202 | [1] | GUARD | LEC- LEFT D2706 |
| 17. | 79087902 | [1] | GUARD | LEC |
| 18. | 79098201 | [1] | GUARD | LEC |
