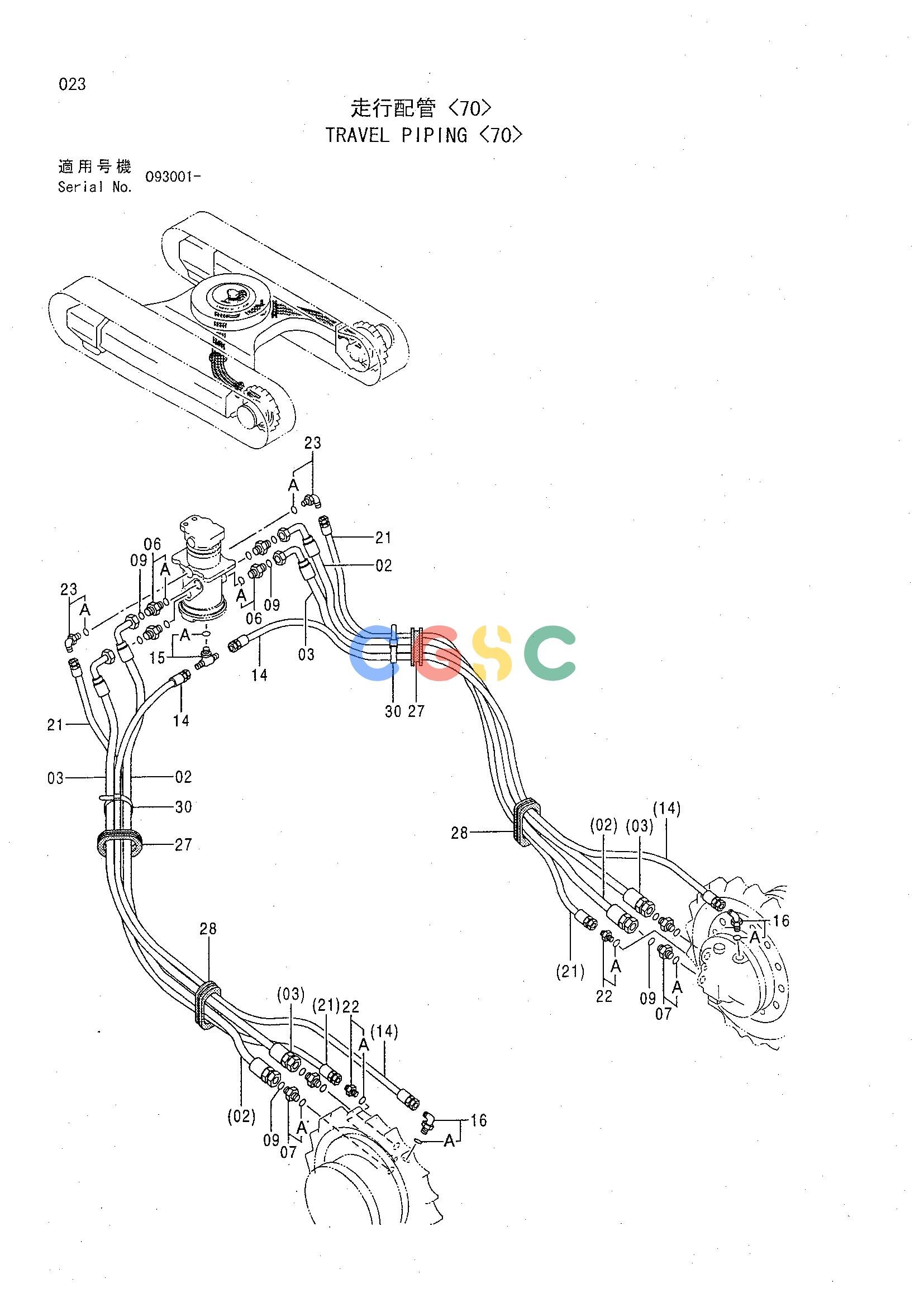

日立零件查询（CHR70）TRAVEL PIPING <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
133 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 4258284 | [2] | HOSE | |
| 03. | 4219356 | [2] | HOSE | |
| 06. | 4188623 | [4] | ADAPTER;S | |
| 06A. | 4506424 | [1] | O-RING | |
| 07. | 4188623 | [4] | ADAPTER;S | |
| 07A. | 4506424 | [1] | O-RING | |
| 09. | 4138938 | [8] | O-RING | |
| 14. | 4286513 | [2] | HOSE | |
| 15. | 4221224 | [1] | TEE;S | |
| 15A. | 4506418 | [1] | O-RING | |
| 16. | 4154672 | [2] | ELBOW;S | |
| 16A. | 4506418 | [1] | O-RING | |
| 21. | 4412689 | [2] | HOSE | |
| 22. | 4200465 | [2] | ADAPTER;S | |
| 22A. | 957366 | [1] | O-RING | |
| 23. | 4154670 | [2] | ELBOW;S | |
| 23A. | 957366 | [1] | O-RING | |
| 27. | 4334566 | [2] | BUSHING;RUBBER | |
| 28. | 4259604 | [2] | BUSHING;RUBBER | |
| 30. | 4121859 | [2] | CLIP;BAND | |
