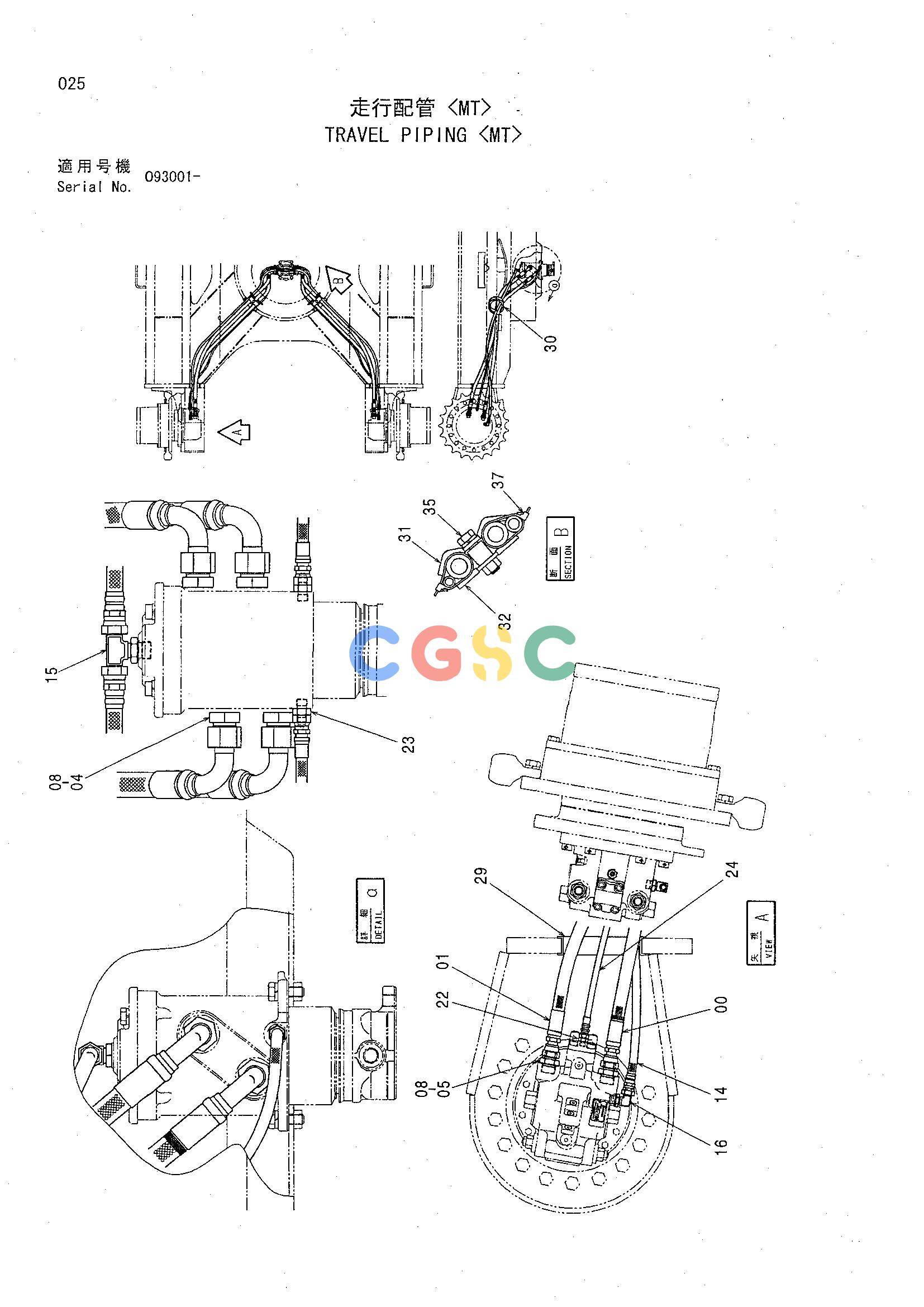

日立零件查询（CHR70）TRAVEL PIPING <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
646 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4437710 | [2] | HOSE (WHITE) | |
| 01. | 4284250 | [2] | HOSE | |
| 04. | 4189619 | [4] | ADAPTER;S | |
| 04A. | 4506424 | [1] | O-RING | |
| 05. | 4189537 | [4] | ADAPTER;S | |
| 05A. | 4506429 | [1] | O-RING | |
| 08. | 4187308 | [8] | O-RING | |
| 14. | 4286514 | [2] | HOSE | |
| 15. | 4221224 | [1] | TEE;S | |
| 15A. | 4506418 | [1] | O-RING | |
| 16. | 4154672 | [2] | ELBOW;S | |
| 16A. | 4506418 | [1] | O-RING | |
| 22. | 4200465 | [2] | ADAPTER;S | |
| 22A. | 957366 | [1] | O-RING | |
| 23. | 4200465 | [2] | ADAPTER;S | |
| 23A. | 957366 | [1] | O-RING | |
| 24. | 4437711 | [2] | HOSE | |
| 29. | 4345761 | [2] | BUSHING;RUBBER | |
| 30. | 4191978 | [2] | BUSHING;RUBBER | |
| 31. | 4202103 | [2] | CLAMP | |
| 32. | 9727822 | [2] | CLAMP | |
| 35. | J011250 | [2] | BOLT;SEMS | |
| 35. | J271250 | [2] | BOLT;SEMS | TJ901250 |
| 35. | J271250 | [2] | BOLT;SEMS | TJ222012 |
| 37. | 4121859 | [4] | CLIP;BAND | |
