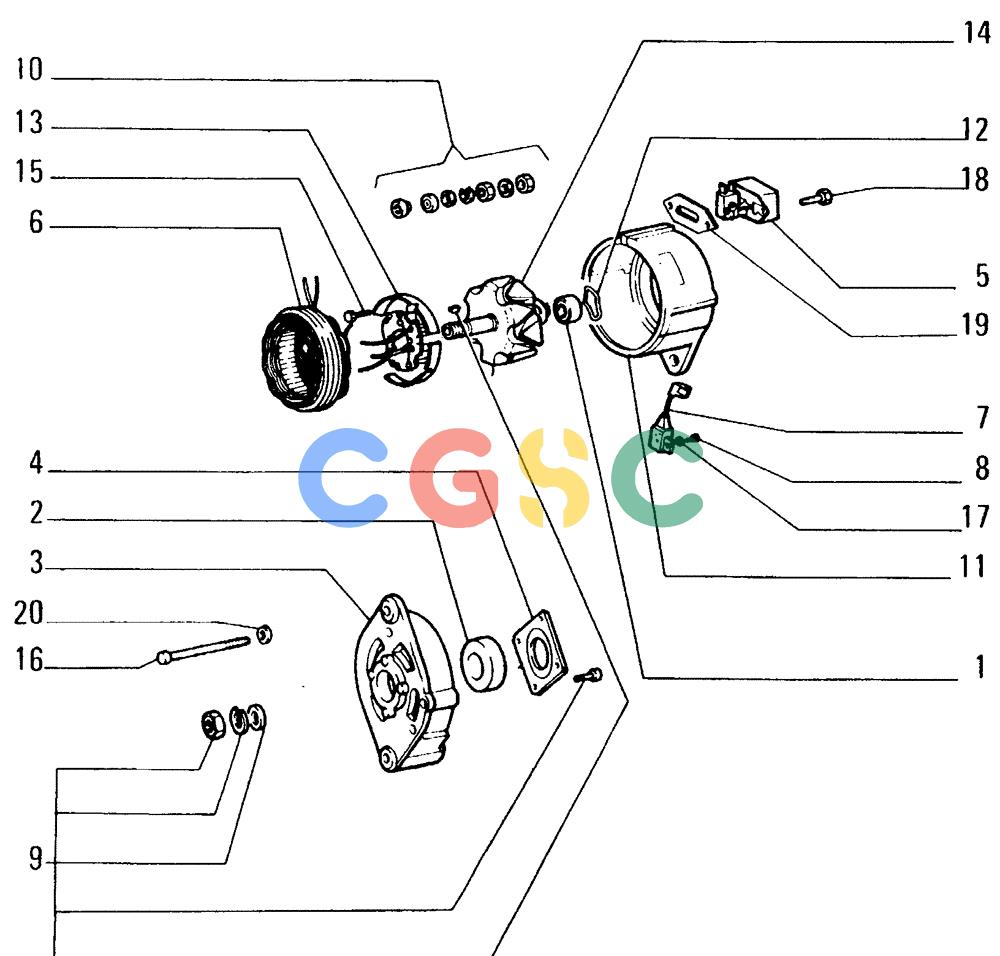

纽荷兰零件查询(FD14E) - CRAWLER DOZER (90.1080[002]) - ALTERNATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
265 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 24941650 | [1] | BALL BEARING,12mm ID x 32mm OD x 14mm W | TORBEARING 12x32 |
| 2. | 24941660 | [1] | BALL BEARING | LECBEARING 17x47 Superseded by part number: 87306803 |
| 3. | 79074704 | [1] | SUPPORT | LEC |
| 4. | 79022468 | [1] | PLATE | MOD Superseded by part number: 42531218 |
| 5. | 79074715 | [1] | VOLTAGE REGULATOR | LECREGULATOR Superseded by part number: 93158421 |
| 6. | 79074705 | [1] | ALTERNATOR STATOR | LECSTATOR |
| 7. | 3079389R1 | [1] | CAPACITOR | IH |
| 8. | 79074711 | [1] | SCREW | LEC |
| 9. | 1307188 | [1] | KIT | TORSET |
| 10. | 79074707 | [1] | KIT | LECSET |
| 11. | 79074708 | [1] | SUPPORT | LEC |
| 12. | 79025494 | [1] | RING | TOR0-RING |
| 13. | 79074712 | [1] | RECTIFIER | LEC Superseded by part number: |
| 14. | 79087247 | [1] | ROTOR | LEC Superseded by part number: |
| 15. | 79093985 | [2] | SCREW | LEC |
| 16. | 9968592 | [4] | SCREW | LEC |
| 17. | 79074710 | [3] | LOCK WASHER | LECLOCKWASHER |
| 18. | 79075883 | [2] | SCREW | MOD Superseded by part number: 93160239 |
| 19. | 75207757 | [1] | GASKET | BHBSEAL |
| 20. | 14497821 | [4] | WASHER | LEC |
