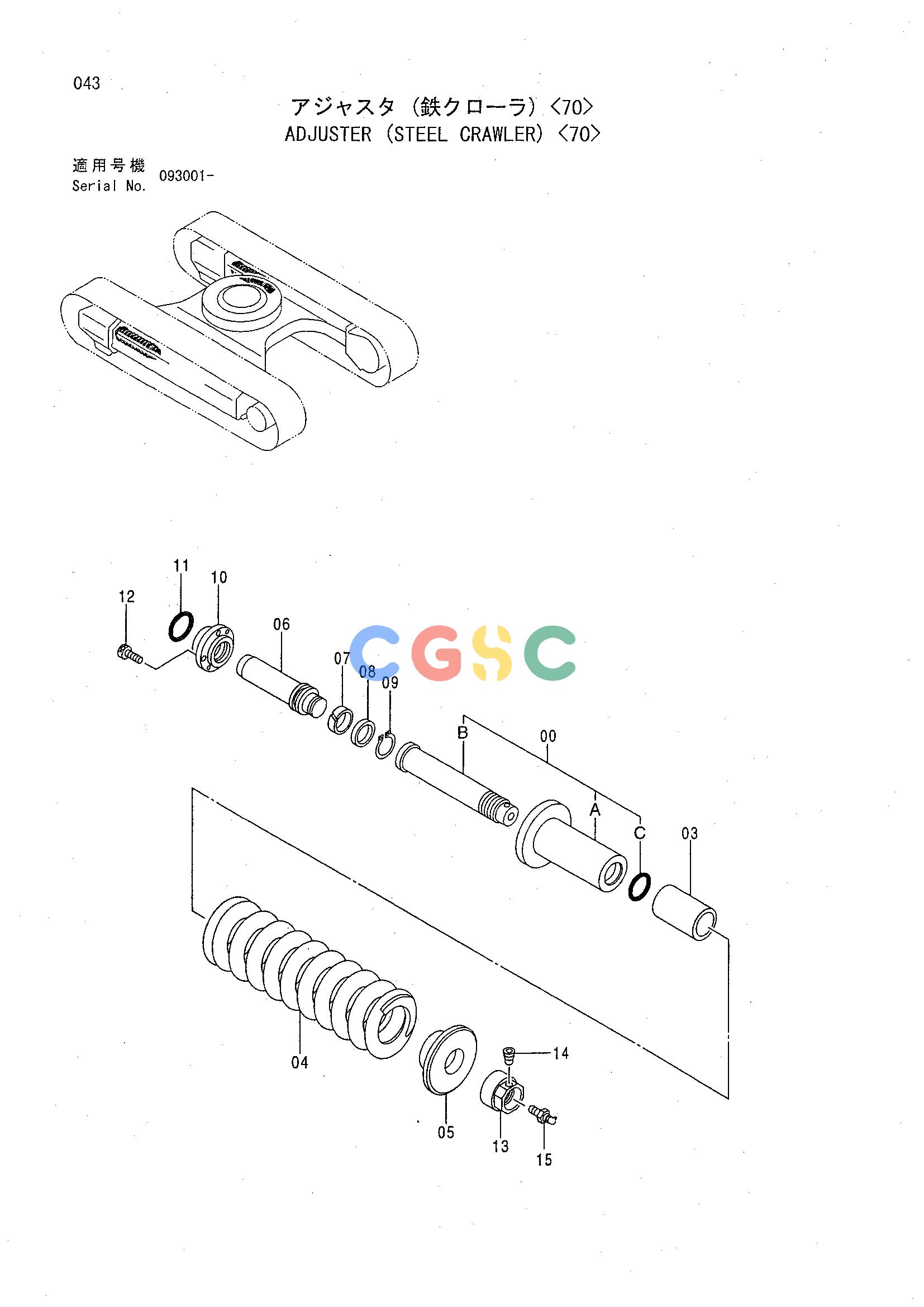

日立零件查询（CHR70）ADJUSTER (STEEL CRAWLER) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
1003 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9144656 | [2] | ADJUSTER ASS'Y | |
| 00. | 9144657 | [1] | CYL. ASS'Y | |
| 00A. | 3073803 | [1] | CYL. | |
| 00B. | 3076991 | [1] | ROD | |
| 00C. | 4360347 | [1] | O-RING | |
| 03. | 4357537 | [1] | SPACER | |
| 04. | 3078186 | [1] | SPRING | |
| 05. | 4357538 | [1] | WASHER | |
| 06. | 3034935 | [1] | ROD;PISTON | |
| 07. | 4182361 | [1] | RING;WEAR | |
| 08. | 4179303 | [1] | PACKING;U-RING | |
| 09. | 959499 | [1] | RING;RETAINING | |
| 10. | 3073805 | [1] | FLANGE | |
| 11. | 4113160 | [1] | O-RING | |
| 12. | M340820 | [4] | BOLT;SOCKET | |
| 13. | 4357539 | [1] | NUT | |
| 14. | 4248106 | [1] | PLUG | |
| 15. | 4255055 | [1] | VALVE | |
