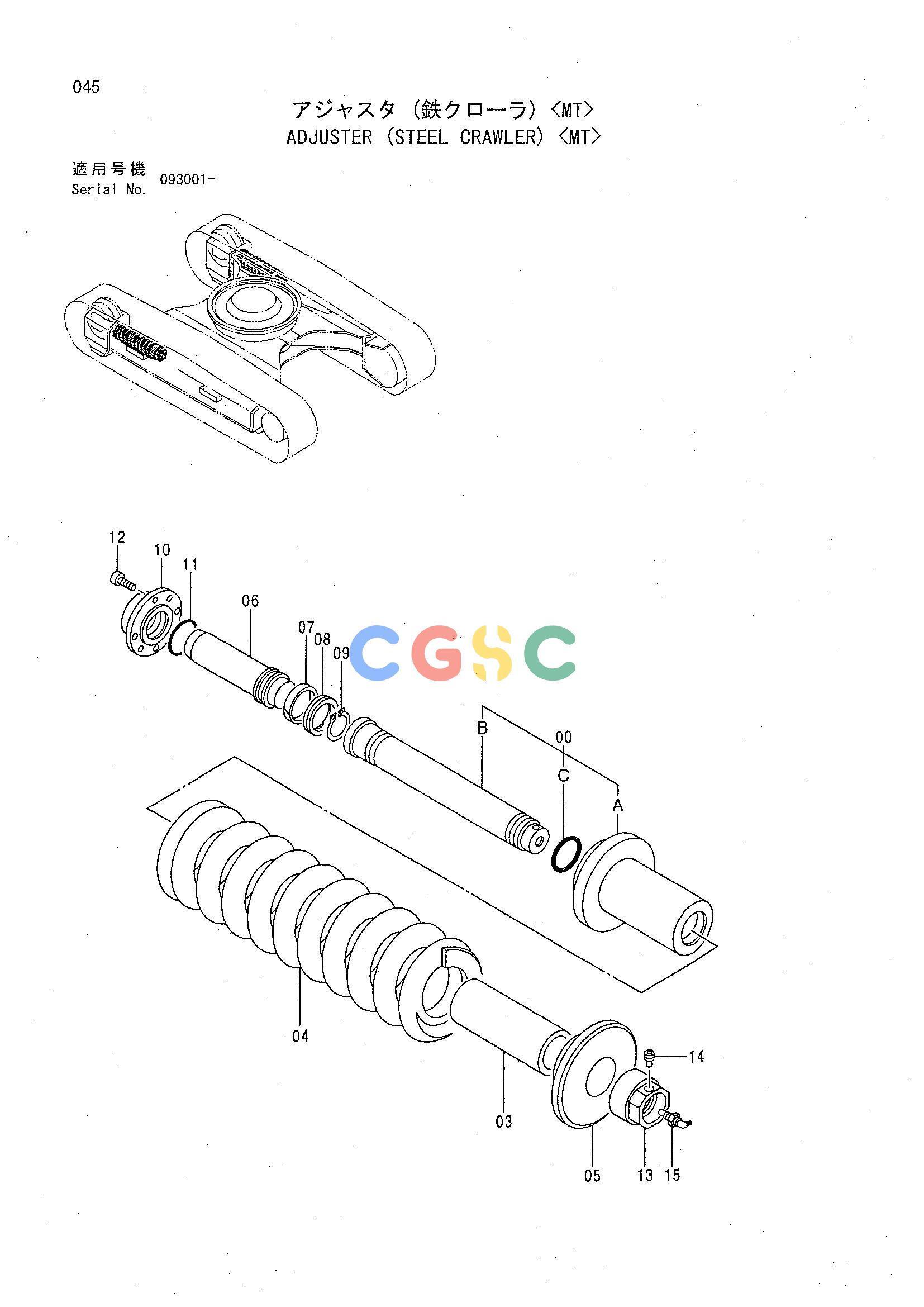

日立零件查询（CHR70）ADJUSTER (STEEL CRAWLER) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
593 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9144658 | [2] | ADJUSTER ASS'Y | |
| 00. | 9144659 | [1] | CYL. ASS'Y | |
| 00A. | 3073799 | [1] | CYL. | |
| 00B. | 3076992 | [1] | ROD | |
| 00C. | 4360345 | [1] | O-RING | |
| 03. | 4357535 | [1] | SPACER | |
| 04. | 3070191 | [1] | SPRING | |
| 05. | 3073801 | [1] | WASHER | |
| 06. | 3076993 | [1] | ROD;PISTON | |
| 07. | 4177838 | [1] | RING;WEAR | |
| 08. | 4177837 | [1] | PACKING;U-RING | |
| 09. | 960323 | [1] | RING;RETAINING | |
| 10. | 3073802 | [1] | FLANGE | |
| 11. | 4113162 | [1] | O-RING | |
| 12. | M341022 | [4] | BOLT;SOCKET | IM341025 |
| 12. | M341025 | [4] | BOLT;SOCKET | |
| 13. | 4357536 | [1] | NUT | |
| 14. | 4248106 | [1] | PLUG | |
| 15. | 4255055 | [1] | VALVE | |
