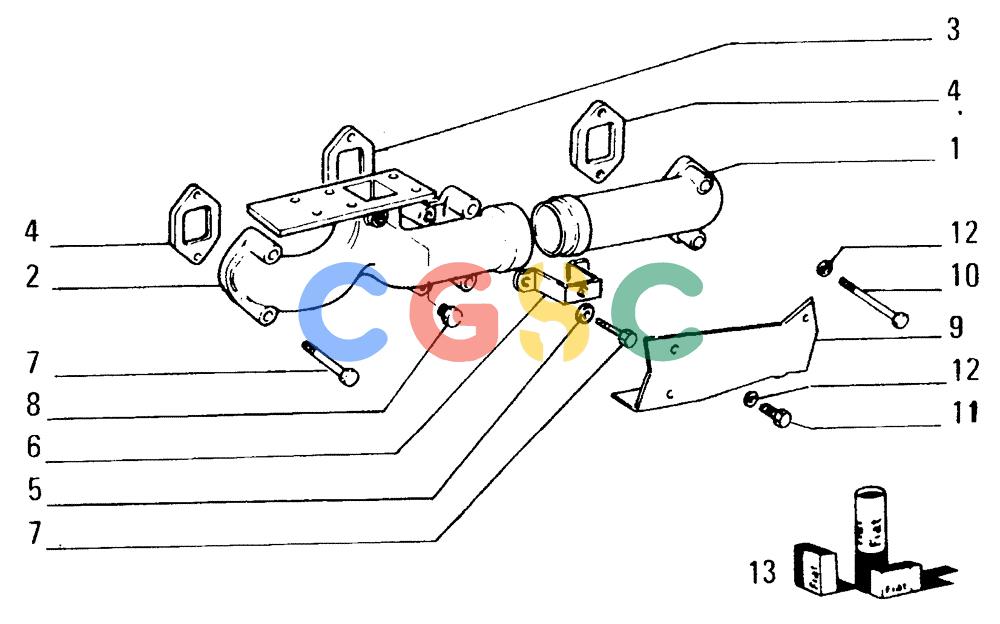

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0077[001]) - EXHAUST MANIFOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
854 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4798423 | [1] | EXHAUST MANIFOLD | MOD- |
| 2. | 4799609 | [1] | EXHAUST MANIFOLD | BRE- Superseded by part number: 4859818 |
| 3. | 4858223 | [1] | GASKET | TOR Superseded by part number: 98434846 |
| 4. | 4858224 | [2] | GASKET | TOR Superseded by part number: 98434847 |
| 5. | 4742408 | [4] | SPACER,10.2mm ID x 20mm OD x 25mm L | BRE |
| 6. | 4808546 | [2] | BRACKET | LEC |
| 7. | 4742406 | [7] | SCREW | BRE Superseded by part number: 98490937 |
| 8. | 4817522 | [1] | PLUG | MOD |
| 9. | 4729704 | [1] | GUARD | LEC |
| 10. | 4737709 | [1] | SCREW | LEC |
| 11. | 15970724 | [2] | SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd | TTFBOLT, , threaded on both ends Hex, M10 x 1.25 x 25, 8.8, Full Thd |
| 12. | 12638620 | [3] | WASHER | MKT10,2x18 Superseded by part number: 17095014 |
| 13. | 79086656 | [1] | KIT | LECSEE PAGE 32 Superseded by part number: 99444733, 98428396, 98415922, 98420478, 98412509, 75127432, 4858608, 4734747, 4729026, 98482093, 4858609 |
