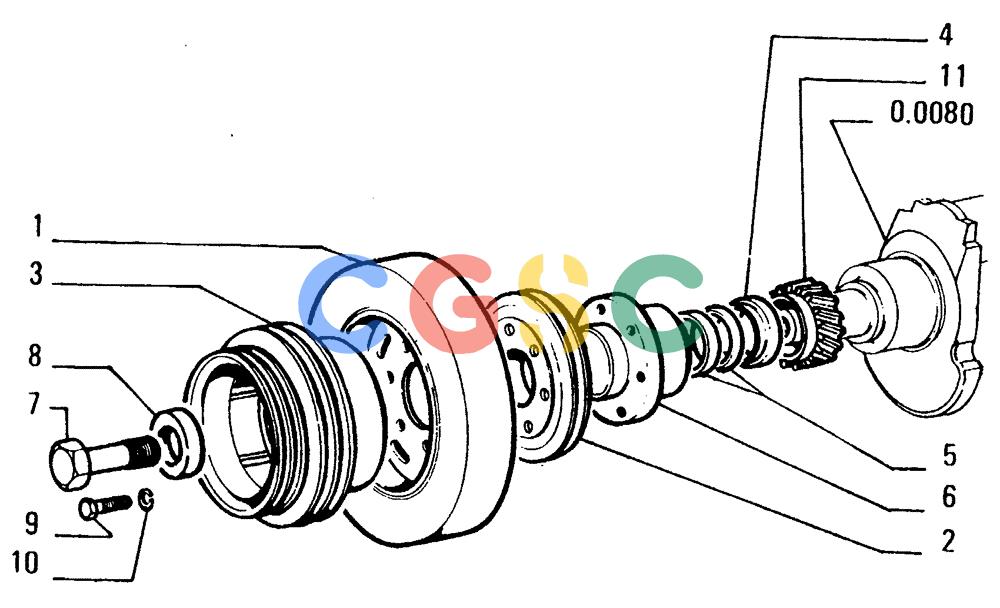

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0084[001]) - DAMPER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
863 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8831256 | [1] | DAMPER | MOD |
| 2. | 4711933 | [1] | PULLEY | LEC |
| 3. | 4813558 | [1] | PULLEY | LEC |
| 4. | 4711787 | [1] | SPACER | MOD |
| 5. | 4811426 | [2] | SPACER | MODRING |
| 6. | 4711786 | [1] | HUB | MOD Superseded by part number: 4820917, 4811426 |
| 7. | 8823774 | [1] | SCREW | MOD |
| 8. | 8823773 | [1] | WASHER | MOD |
| 9. | 11307031 | [6] | BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9 | TORSCREW 10x1,25x40 |
| 10. | 11198379 | [6] | SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk | TTFLOCKWASHER 10,5x20 Superseded by part number: 11198374 |
| 11. | 4710645 | [1] | GEAR | MOD |
