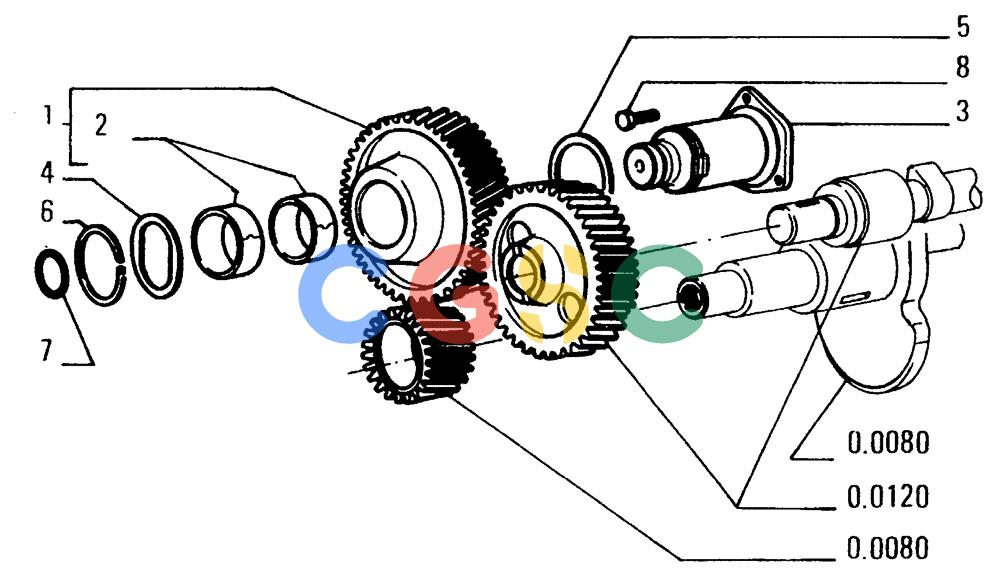

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0100[001]) - TIMING CONTROL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1002 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4708423 | [1] | DRIVEN GEAR | MODGEAR - ASSEMBLY C2728 Superseded by part number: 98407508 |
| 1. | 98407508 | [1] | DRIVEN GEAR | MODGEAR - ASSEMBLY D2728 |
| 2. | 4601834 | [2] | BUSHING,49.73mm ID x 54.18mm OD x 16.99mm L | MOD- IN ALTERNATIVE |
| 2. | 4670937 | [2] | BUSHING | MOD- IN ALTERNATIVE Superseded by part number: 4601834 |
| 3. | 4708424 | [1] | PIN | MOD |
| 4. | 4667498 | [1] | WASHER | FORRING |
| 5. | 4604833 | [1] | SEALING WASHER | MODTHRUST PLATE Superseded by part number: 4809425 |
| 6. | 4708213 | [1] | RING | FORSNAP RING |
| 7. | 14463181 | [1] | O-RING,921" ID x 0.139" Width | LEC-213, Cl 7, .921" ID x .139" Thk Superseded by part number: 17288581 |
| 8. | 14238030 | [1] | SCREW,M8 x 1.25 x 30mm | JES8x1.25x20 Superseded by part number: |
