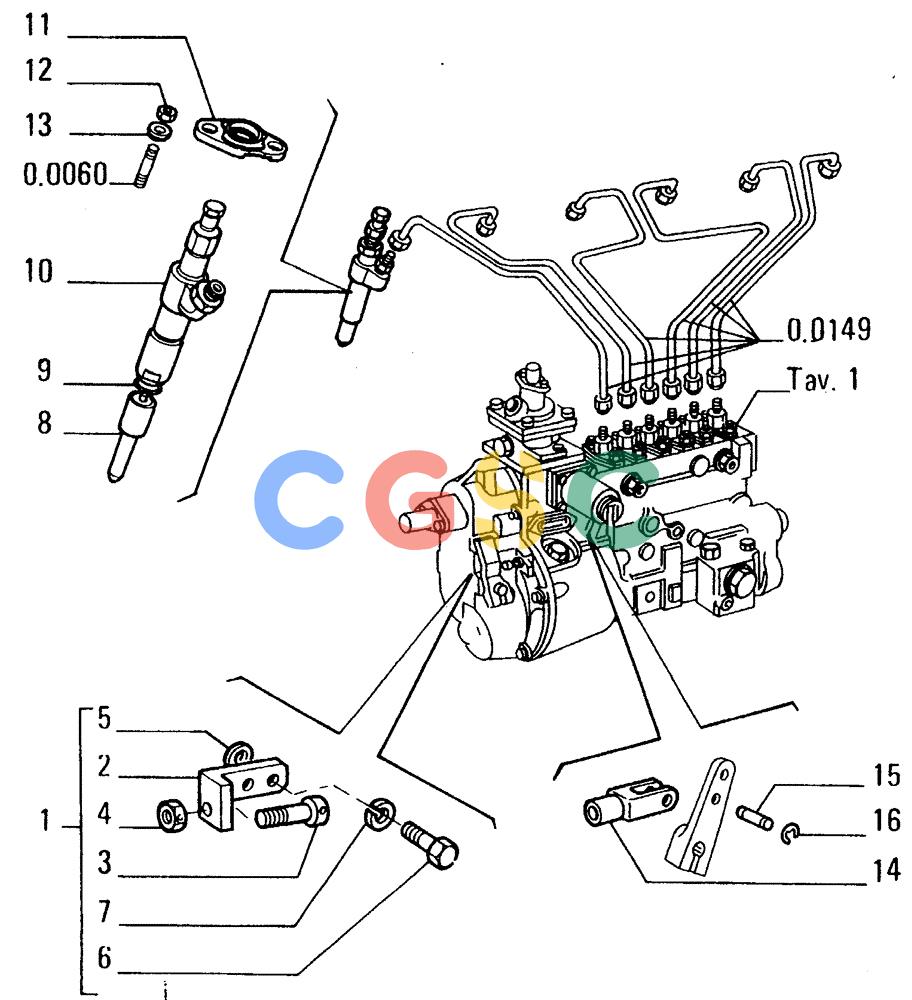

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0140[002]) - INJECTION EQUIPMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
885 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4756612 | [1] | CONTROL UNIT | MODGOVERNOR - ASSEMBLY |
| 2. | 4756614 | [1] | BRACKET | LEC Superseded by part number: 4756612 |
| 3. | 4756615 | [1] | SCREW | MOD |
| 4. | 4756616 | [1] | NUT | MOD |
| 5. | 4799685 | [2] | WASHER | MOD Superseded by part number: 17094724 |
| 6. | 10902211 | [2] | BOLT,Hex, M6 x 16mm, Cl 5.8, Full Thd | MKTSCREW 6x1x16 Superseded by part number: 10902221 |
| 7. | 10571571 | [2] | LOCK WASHER,M6 | TTFLOCKWASHER 6,1x1,6 Superseded by part number: 10516471 |
| 8. | 4750416 | [6] | NOZZLE | MOD |
| 9. | 767111 | [6] | O-RING,20mm ID x 27.4mm OD x 10.5mm Thk | MOD0-RING |
| 10. | 4750417 | [6] | INJECTOR NOZZLE HOLDER | MODNOZZLE HOLDER - ASSEMBLY SEE TAV.14 Superseded by part number: |
| 11. | 4795296 | [6] | FLANGE | MODSUPPORT |
| 12. | 16100821 | [12] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 13. | 771326 | [12] | WASHER,8.40mm ID | TOR |
| 14. | 10001071 | [1] | YOKE | MKT |
| 15. | 10249110 | [1] | PIN | TTF |
| 16. | 11087776 | [2] | CIRCLIP,Ext., M6, BLO | JESSNAP RING 5x11 Superseded by part number: 17087174 |
