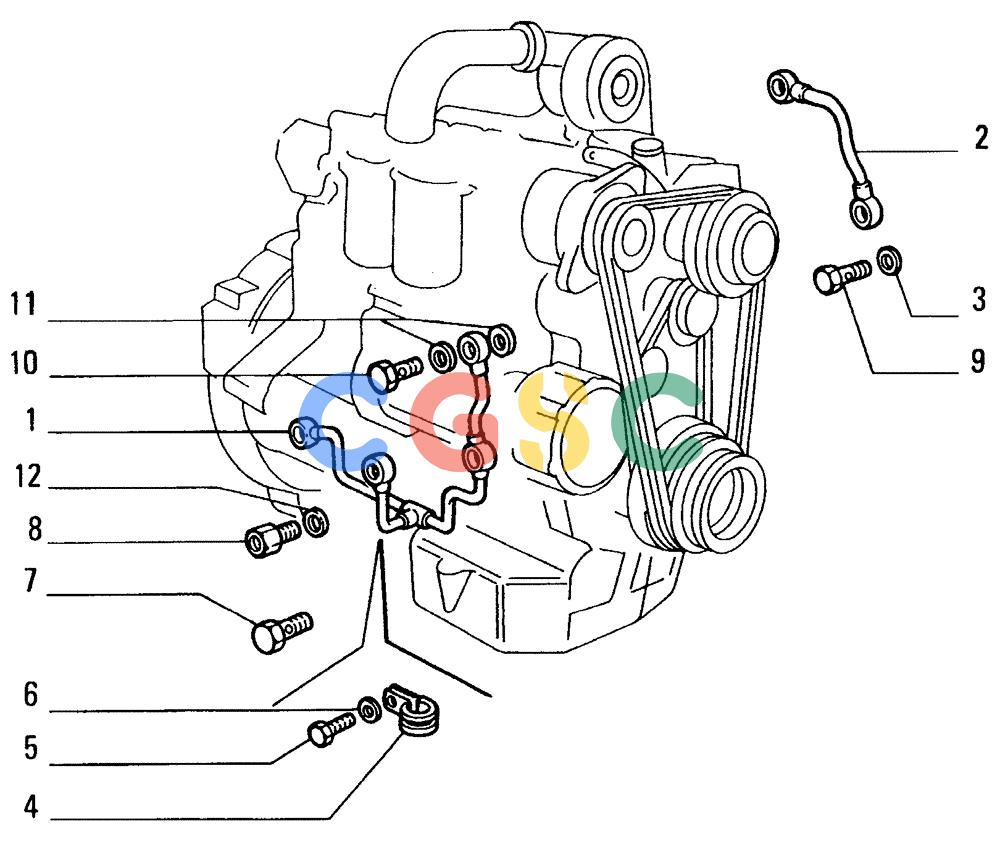

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0140[003]) - INJECTION EQUIPMENT-PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
889 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4817433 | [1] | RIGID TUBE | LECTUBE |
| 2. | 4766747 | [1] | RIGID TUBE | MODTUBE Superseded by part number: 98431115 |
| 3. | 10298360 | [2] | SEALING WASHER,M10.2 x 16 x 1, Copper | LECGASKET 10,2x16 Superseded by part number: 4858606 |
| 4. | 10450090 | [1] | CLAMP,8mm, Coat, 9mm Bolt Hole, P Type | IMO8 x 9 |
| 6. | 11193879 | [1] | BELLEVILLE WASHER,Belleville, M8.4 | TTFWASHER, SPRING, Belleville, M8.4 Superseded by part number: 11193874 |
| 7. | 1390713 | [1] | BANJO BOLT | MODFITTING Superseded by part number: 4864079 |
| 8. | 4750513 | [1] | HYD CONNECTOR | LECFITTING |
| 9. | 11903814 | [3] | BANJO BOLT,M10 x 1.25 x 19mm | LECFITTING 10x1.25x19 Superseded by part number: 4864080 |
| 10. | 10181714 | [2] | BANJO BOLT | LECFITTING 12x1,5x11 Superseded by part number: 10181717 |
| 11. | 2854292 | [4] | SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk | TORWASHER, SEALING, , Copper M12.2 x 18 x 1.5 Superseded by part number: 10298460 |
| 12. | 12638660 | [1] | WASHER | MKTGASKET 10,2x18 Superseded by part number: 17095014 |
| 5. | 16043224 | [1] | BOLT,Hex, M8 x 16mm, Cl 8.8 | NHBOLT, Hex, M8 x 16, 8.8, Full Thd |
