| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

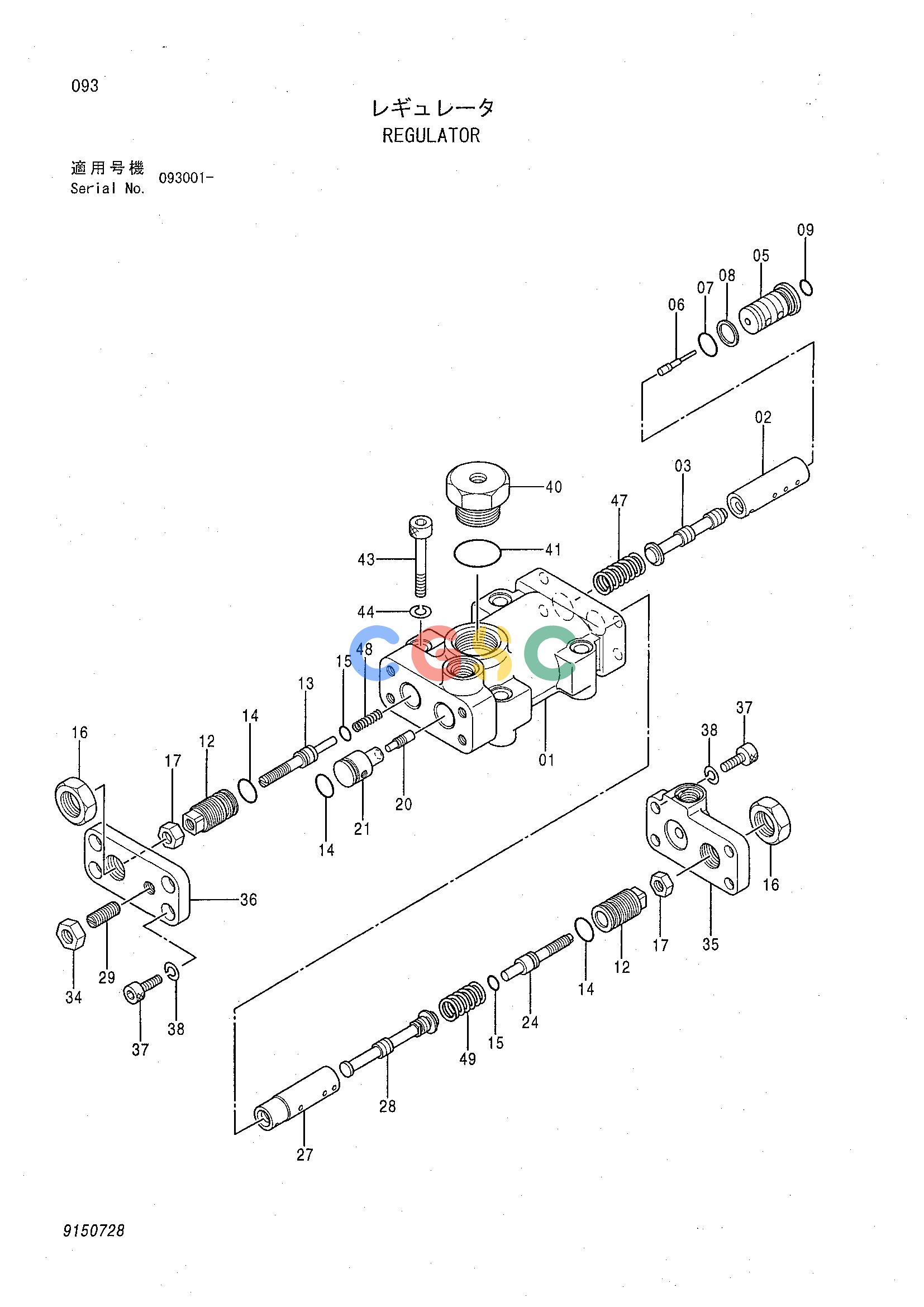

| 9150728 | [1] | REGULATOR | I91526699150728 <for assembly of machine> | |
| (9152669) | [1] | REGULATOR | <for transportation> | |
| 01. | 1022489 | [1] | CASING | |
| 02. | 4179155 | [1] | SLEEVE | |
| 03. | 4179156 | [1] | SPOOL | |
| 05. | 4367385 | [1] | CYL.;LOAD | |
| 06. | 4367500 | [1] | PISTON | |
| 07. | 4150302 | [1] | O-RING | |
| 08. | 4085607 | [1] | RING;BACK-UP | |
| 09. | 4180349 | [1] | O-RING | |
| 12. | 4179161 | [2] | STOPPER | |
| 13. | 4368619 | [1] | STOPPER | |
| 14. | 4342843 | [3] | O-RING | |
| 15. | 4342841 | [2] | O-RING | |
| 16. | 4068898 | [2] | NUT | |
| 17. | M500807 | [2] | NUT | |
| 20. | 4179171 | [1] | PISTON | |
| 21. | 4179170 | [1] | CYL. | |
| 24. | 4347107 | [1] | STOPPER;INNER | |
| 27. | 4346522 | [1] | SLEEVE | |
| 28. | 4346521 | [1] | SPOOL | |
| 29. | 4265964 | [1] | SCREW;SET | |
| 34. | J950010 | [1] | NUT | |
| 35. | 3075775 | [1] | COVER;REAR | |
| 36. | 4179173 | [1] | COVER | |
| 37. | M340820 | [8] | BOLT;SOCKET | |
| 38. | 4514388 | [8] | WASHER;SPRING | |
| 40. | 4179174 | [1] | PLUG | |
| 41. | 4342846 | [1] | O-RING | |
| 43. | M341056 | [4] | BOLT;SOCKET | |
| 44. | 984054 | [4] | WASHER;SPRING | |
| 47. | 4194176 | [1] | SPRING;COMPRES. | |
| 48. | 4350938 | [1] | SPRING;COMPRES. | |
| 49. | 4350928 | [1] | SPRING;COMPRES. |
