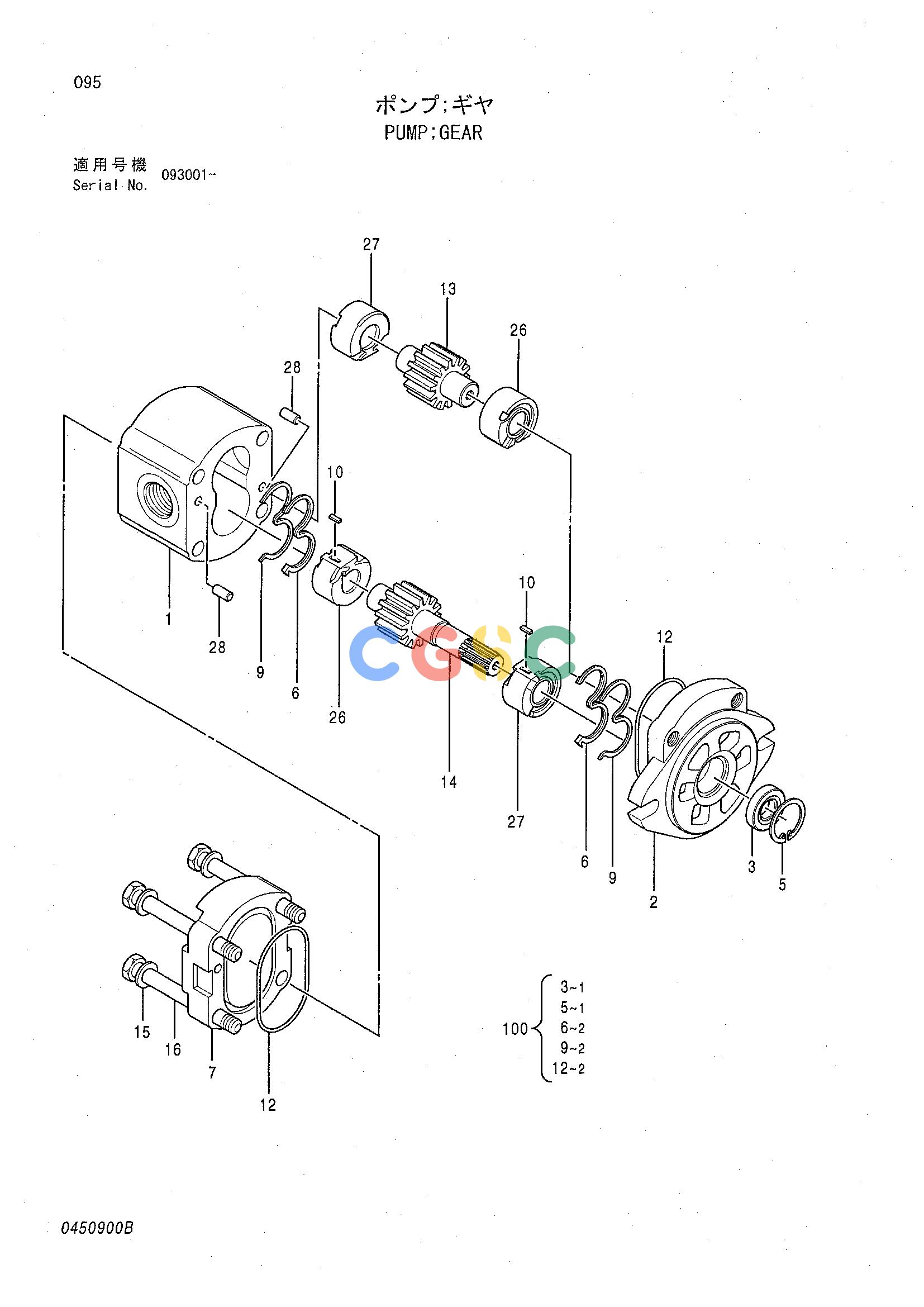

日立零件查询（CHR70）PUMP;GEAR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
315 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4276918 | [1] | PUMP;GEAR | 0450900B
|
| 1. | +++++++ | [1] | HOUSING | |
| 2. | 0354601 | [1] | FLANGE | |
| 3. | 0408202 | [1] | SEAL;OIL | |
| 5. | 0354604 | [1] | RING;RETAINING | |
| 6. | 0408203 | [2] | SEAL | |
| 7. | 0354603 | [1] | COVER | |
| 9. | 0354607 | [2] | RING;BACK-UP | |
| 10. | 0354614 | [2] | KEY | |
| 12. | 0354608 | [2] | O-RING | |
| 13. | +++++++ | [1] | GEAR | |
| 14. | +++++++ | [1] | GEAR | |
| 15. | 0354611 | [4] | WASHER | |
| 16. | 0408204 | [4] | BOLT | |
| 26. | +++++++ | [2] | BUSH | |
| 27. | +++++++ | [2] | BUSH | |
| 28. | 0354610 | [4] | PIN | |
| 100. | 0408207 | [1] | KIT;SEAL | |
