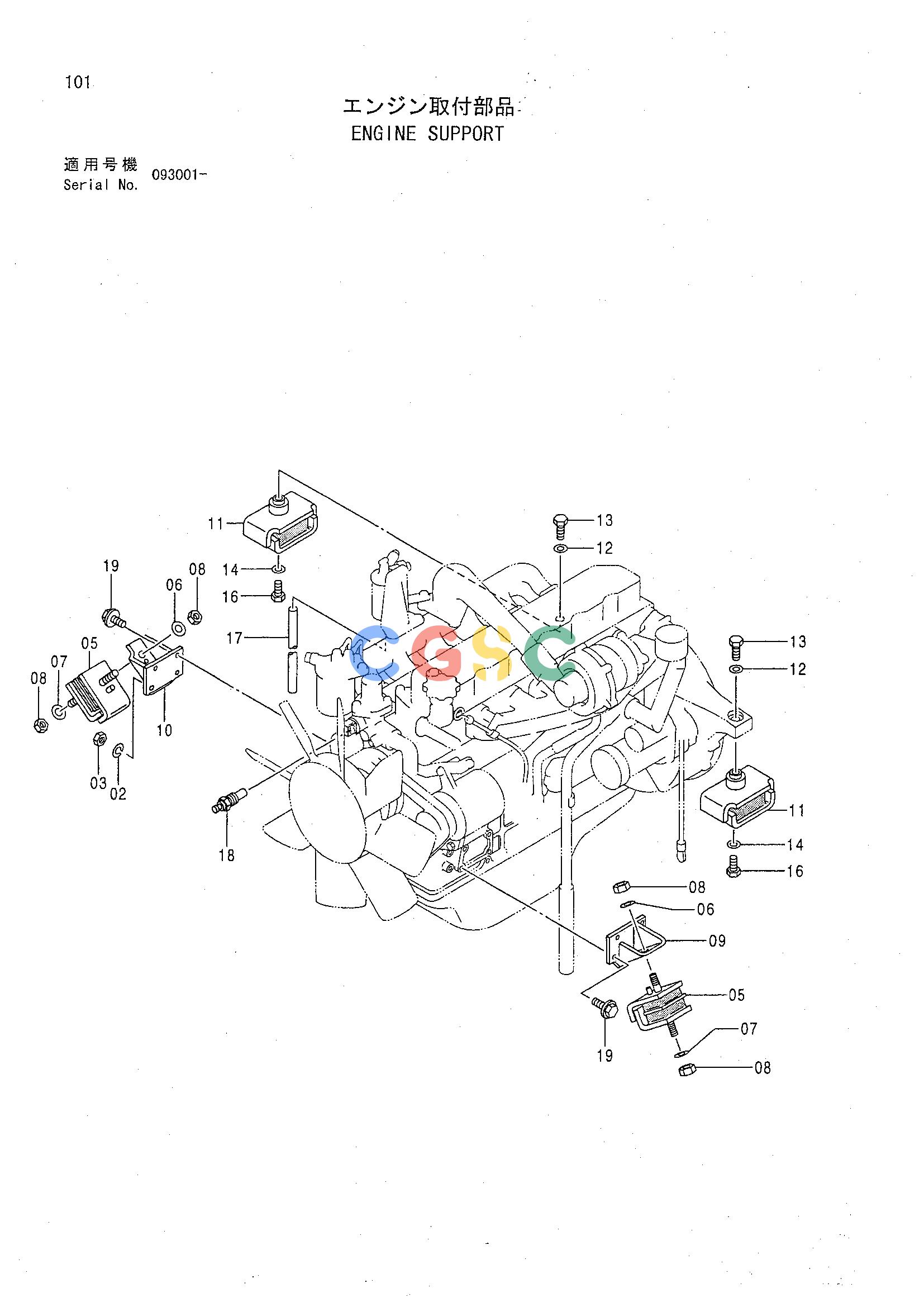

日立零件查询（CHR70）ENGINE SUPPORT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
128 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | A590910 | [1] | WASHER;SPRING | |
| 03. | J952010 | [1] | NUT | |
| 05. | 4123994 | [2] | RUBBER | |
| 06. | 4114404 | [2] | WASHER | |
| 07. | 4086894 | [2] | WASHER | |
| 08. | J950014 | [4] | NUT | |
| 09. | 8064364 | [1] | BRACKET | |
| 10. | 8064357 | [1] | BRACKET | |
| 11. | 4248362 | [2] | RUBBER | |
| 12. | J257218 | [2] | WASHER;SPRING | |
| 13. | J921865 | [2] | BOLT | |
| 14. | 4087197 | [4] | WASHER | |
| 16. | J901630 | [4] | BOLT | |
| 17. | 4206284 | [1] | HOSE;VINYL | |
| 18. | 4257129 | [1] | UNIT | (COOLANT SENSOR) |
| 19. | M171025 | [7] | BOLT;SEMS | |
| 19. | J841025 | [7] | BOLT;SEMS | TJ241025 |
| 19. | J841025 | [7] | BOLT;SEMS | TJ222010 |
