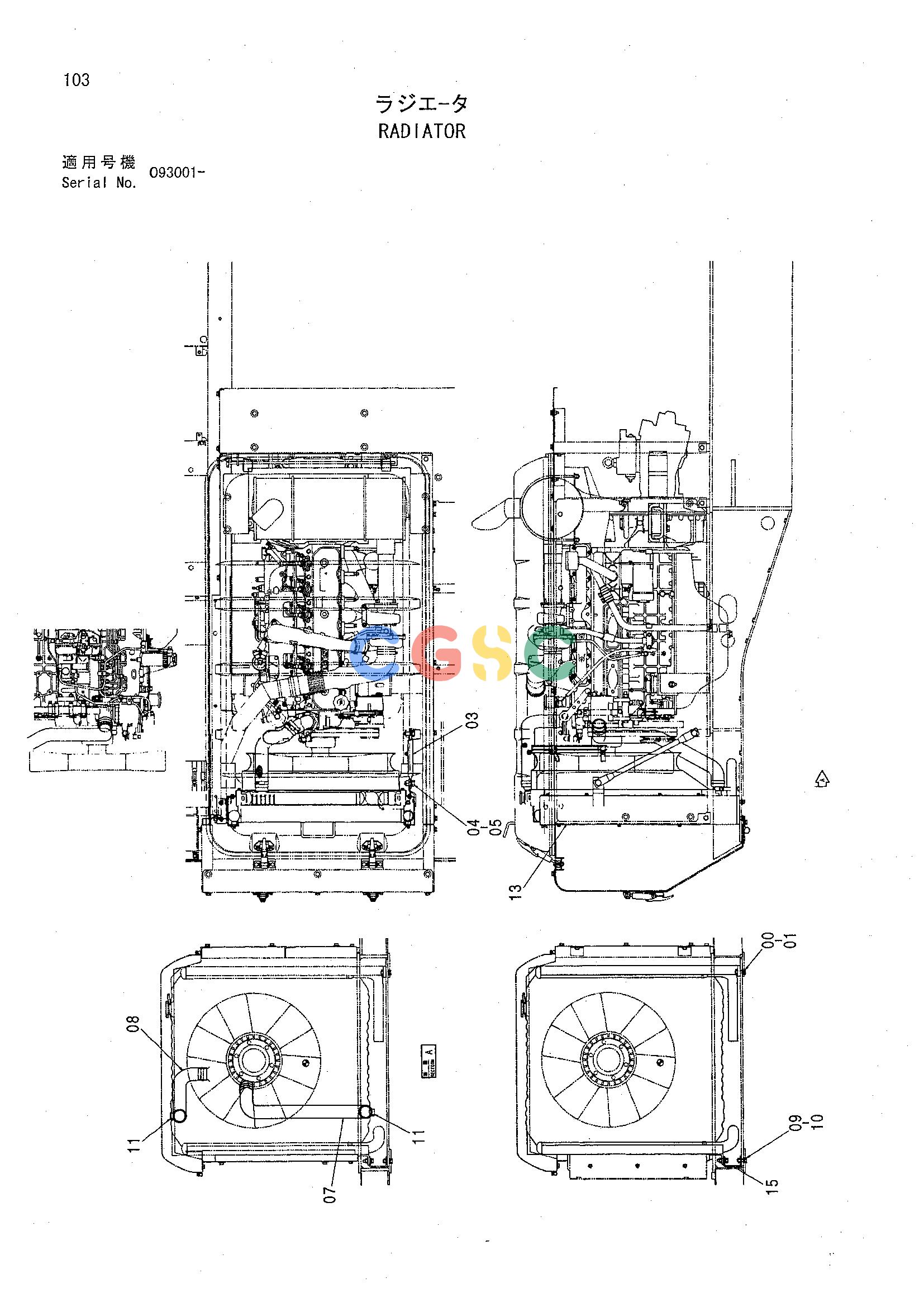

日立零件查询（CHR70）RADIATOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
916 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | J222012 | [4] | WASHER | |
| 01. | J011240 | [4] | BOLT;SEMS | |
| 01. | J271240 | [4] | BOLT;SEMS | TJ901240 |
| 01. | J271240 | [4] | BOLT;SEMS | TJ222012 |
| 03. | 4248560 | [1] | STAY | |
| 04. | A590916 | [2] | WASHER;SPRING | |
| 05. | J901635 | [2] | BOLT | |
| 07. | 3072426 | [1] | HOSE;WATER | |
| 08. | 3068554 | [1] | HOSE;WATER | |
| 09. | J021235 | [2] | BOLT;SEMS | |
| 09. | J271235 | [2] | BOLT;SEMS | TJ901235 |
| 09. | J271235 | [2] | BOLT;SEMS | TJ222012 |
| 10. | J950012 | [2] | NUT | |
| 11. | 4357297 | [4] | CLAMP;HOSE | |
| 13. | 4358196 | [1] | RADIATOR ASS'Y | <for details: see separate page> |
| 15. | 4401795 | [1] | BRACKET | |
