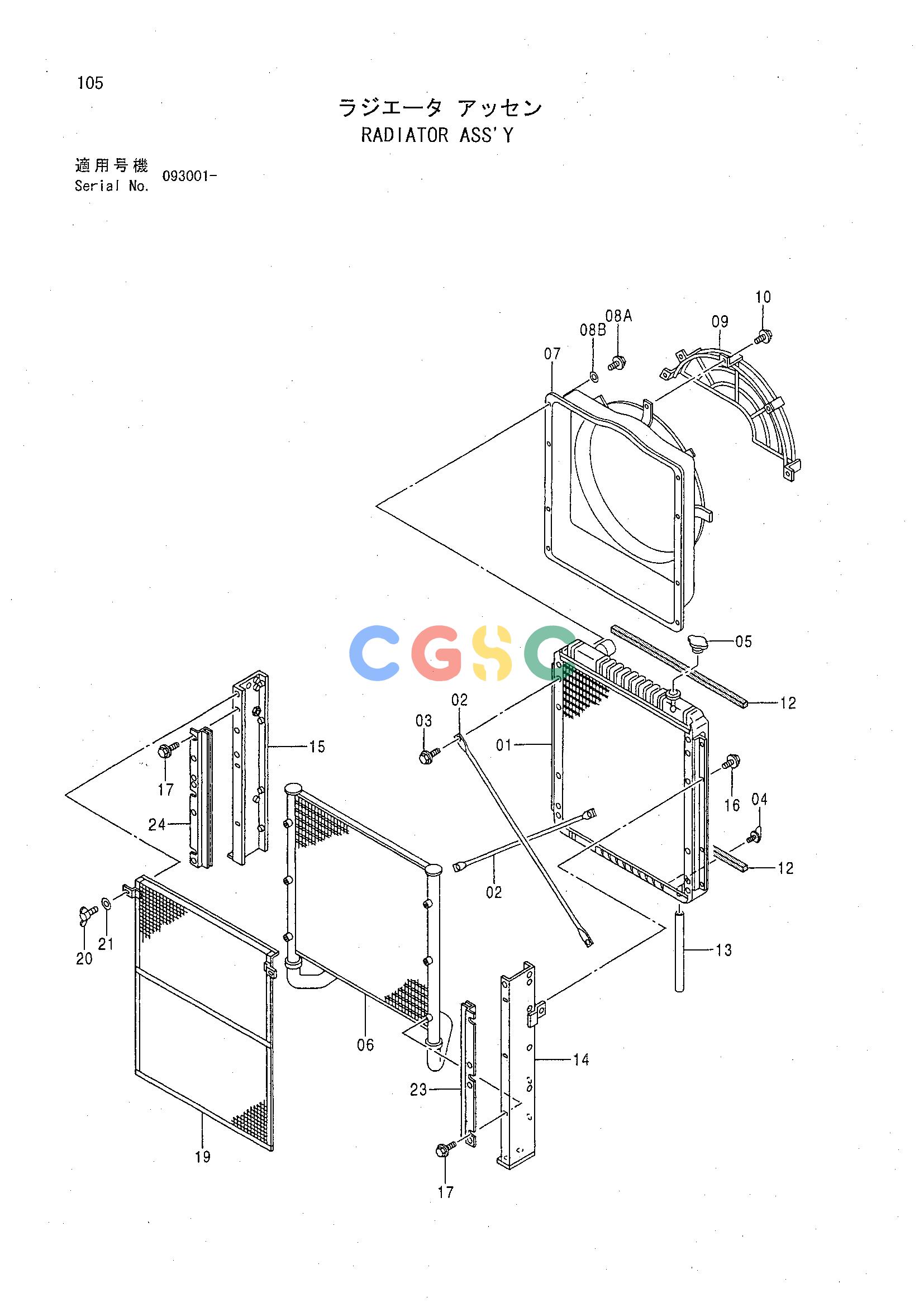

日立零件查询（CHR70）RADIATOR ASS'Y Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
405 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4358196 | [1] | RADIATOR ASS'Y | |
| 01. | 4370980 | [1] | CORE;RADIATOR | |
| 02. | 4370982 | [2] | ROD | |
| 03. | J020616 | [4] | BOLT;SEMS | |
| 03. | J260616 | [4] | BOLT;SEMS | TJ900616 |
| 03. | J260616 | [4] | BOLT;SEMS | TA590106 |
| 04. | 4206928 | [1] | PLUG;DRAIN | |
| 05. | 4438117 | [1] | CAP | |
| 06. | 4370983 | [1] | COOLER;OIL | |
| 07. | 4370998 | [1] | SHROUD | |
| 08A. | J010814 | [8] | BOLT;SEMS | |
| 08A. | J260814 | [8] | BOLT;SEMS | TJ900816 |
| 08A. | J260814 | [8] | BOLT;SEMS | TA590108 |
| 08B. | A590108 | [8] | WASHER;PLANE | |
| 09. | 4370997 | [1] | GUARD;FAN | |
| 10. | J010816 | [5] | BOLT;SEMS | |
| 10. | J260816 | [5] | BOLT;SEMS | TJ900816 |
| 10. | J260816 | [5] | BOLT;SEMS | TA590108 |
| 12. | 4371029 | [2] | PACKING | |
| 13. | 4206927 | [1] | HOSE | |
| 14. | 4371003 | [1] | BRACKET | |
| 15. | 4371004 | [1] | BRACKET | |
| 16. | J020816 | [8] | BOLT;SEMS | |
| 16. | J260816 | [8] | BOLT;SEMS | TJ900816 |
| 16. | J260816 | [8] | BOLT;SEMS | TA590108 |
| 17. | J020816 | [6] | BOLT;SEMS | |
| 17. | J260816 | [6] | BOLT;SEMS | TJ900816 |
| 17. | J260816 | [6] | BOLT;SEMS | TA590108 |
| 19. | 4371007 | [1] | NET | |
| 20. | 4206930 | [2] | BOLT;WING | |
| 21. | 4206931 | [2] | WASHER | |
| 23. | 4371005 | [1] | BRACKET | |
| 24. | 4371006 | [1] | BRACKET | |
