斗山零件查询FLOOR PLATE SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
683 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

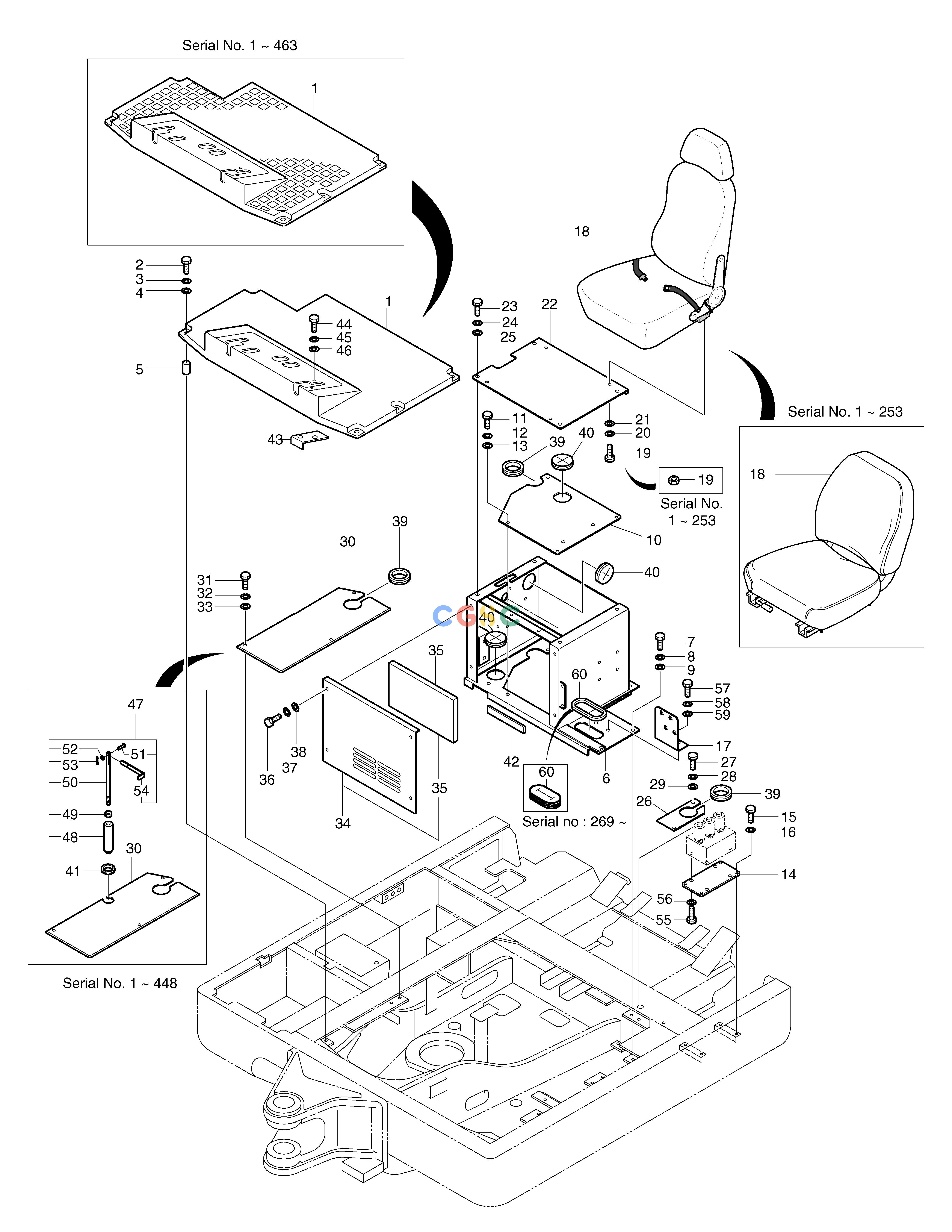

2901-7005
|
[-] |
FLOOR ASS'Y
|
|
| 1. |
12002-03921
|
[1] |
PLATE;FLOOR
|
161-00006
|
| 1. |
161-00006
|
[1] |
PLATE;FLOOR
|
|
| 10. |
2191-3830A
|
[1] |
PLATE;FLOOR
|
|
| 11. |
S0508853
|
[4] |
. BOLT
|
|
| 12. |
S5102503
|
[4] |
. WASHER
|
|
| 13. |
S5010513
|
[4] |
WASHER
|
|
| 14. |
2621-3509
|
[1] |
PLATE
|
|
| 15. |
S0508853
|
[4] |
. BOLT
|
|
| 16. |
S5102503
|
[4] |
. WASHER
|
|
| 17. |
2197-1269
|
[1] |
PLATE
|
|
| 18. |
41301-01710
|
[1] |
SEAT
|
|
| 18. |
2901-9030
|
[1] |
SEAT
|
2901-9030A
|
| 18. |
2901-9030A
|
[1] |
SEAT
|
|
| 19. |
S4012533
|
[4] |
NUT
|
|
| 19. |
S0508653
|
[4] |
BOLT
|
|
| 2. |
S0509053
|
[5] |
. BOLT
|
|
| 20. |
S5102503
|
[4] |
. WASHER
|
|
| 21. |
S5010513
|
[4] |
WASHER
|
|
| 22. |
2191-3946A
|
[1] |
PLATE;SEAT
|
|
| 22. |
2191-3946B
|
[1] |
PLATE;SEAT
|
|
| 23. |
S0511853
|
[4] |
BOLT
|
|
| 24. |
S5102603
|
[4] |
. WASHER
|
|
| 25. |
S5010613
|
[4] |
WASHER
|
|
| 26. |
2621-3310A
|
[1] |
PLATE;FLOOR(C)
|
|
| 27. |
S0508853
|
[2] |
. BOLT
|
|
| 28. |
S5102503
|
[2] |
. WASHER
|
|
| 29. |
S5010513
|
[2] |
WASHER
|
|
| 3. |
S5102503
|
[5] |
. WASHER
|
|
| 30. |
2621-3309A
|
[1] |
PLATE;FLOOR(D)
|
621-00111
|
| 30. |
621-00111
|
[1] |
PLATE;FLOOR D
|
|
| 31. |
S0508853
|
[3] |
. BOLT
|
|
| 32. |
S5102503
|
[3] |
. WASHER
|
|
| 33. |
S5010513
|
[3] |
WASHER
|
|
| 34. |
2621-3256A
|
[1] |
COVER
|
|
| 34. |
2621-3256B
|
[1] |
COVER
|
2621-3256E
|
| 34. |
2621-3256E
|
[1] |
COVER
|
|
| 35. |
2161-2064
|
[1] |
URETHAN FOAM
|
2161-2064A
|
| 35. |
2161-2064A
|
[1] |
URETHAN FOAM
|
|
| 36. |
S0504653
|
[4] |
. BOLT
|
|
| 36. |
S0508653
|
[4] |
BOLT
|
|
| 37. |
S5102303
|
[4] |
. WASHER
|
|
| 37. |
S5102503
|
[4] |
. WASHER
|
|
| 38. |
S5010313
|
[4] |
WASHER
|
|
| 38. |
S5010513
|
[4] |
WASHER
|
|
| 39. |
864-06001
|
[3] |
GROMMET
|
|
| 4. |
2114-1058D29
|
[5] |
WASHER
|
|
| 40. |
864-06002
|
[3] |
GROMMET
|
2161-2462
|
| 40. |
2161-2462
|
[3] |
GROMMET
|
|
| 41. |
41301-01310
|
[1] |
GROMMET
|
|
| 42. |
30869-02030
|
[1] |
RUBBER TRIM
|
2161-1744
|
| 42. |
2161-1744
|
[1] |
RUBBER
|
|
| 43. |
2621-3257A
|
[1] |
COVER
|
|
| 44. |
S0504553
|
[2] |
BOLT
|
|
| 45. |
S5102303
|
[2] |
. WASHER
|
|
| 46. |
S5010313
|
[2] |
WASHER
|
|
| 47. |
2123-2104
|
[1] |
PIN ASS'Y
|
|
| 48. |
2123-2105
|
[1] |
PIN
|
|
| 49. |
S4012733
|
[1] |
NUT
|
|
| 5. |
2114-1756
|
[5] |
COLLAR
|
|
| 50. |
2731-1016
|
[1] |
BAR
|
|
| 51. |
2123-2106
|
[1] |
PIN;CREVICE
|
|
| 52. |
S5000213
|
[1] |
. WASHER
|
|
| 53. |
S5735051
|
[1] |
PIN;SPLIT
|
|
| 54. |
2191-3807
|
[1] |
PLATE
|
|
| 55. |
S0511853
|
[2] |
BOLT
|
|
| 56. |
S5102603
|
[2] |
. WASHER
|
|
| 57. |
S0511853
|
[2] |
BOLT
|
|
| 58. |
S5102603
|
[2] |
. WASHER
|
|
| 59. |
S5010613
|
[2] |
WASHER
|
|
| 6. |
2512-1115B
|
[1] |
BOX;SEAT
|
|
| 6. |
2512-1115C
|
[1] |
BOX;SEAT
|
|
| 60. |
30869-02013
|
[1] |
RUBBER TRIM
|
|
| 60. |
2160-1330
|
[1] |
BUSHING;RUBBER
|
|
| 7. |
S0508853
|
[5] |
. BOLT
|
|
| 8. |
S5102503
|
[5] |
. WASHER
|
|
| 9. |
S5010513
|
[5] |
WASHER
|
|
