斗山零件查询FRAME SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
318 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

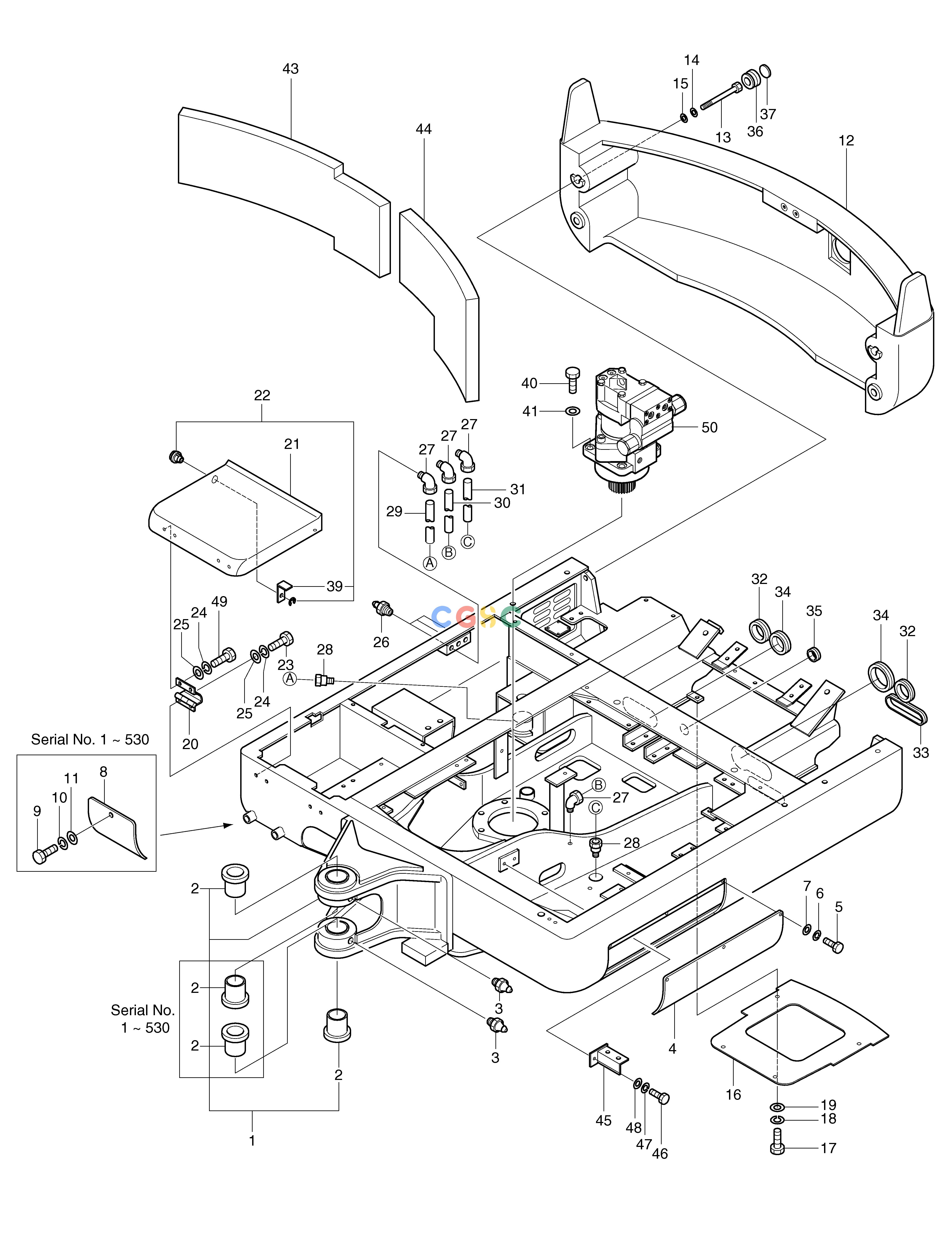

2603-7027
|
[-] |
MAIN FRAME
|
|
| 1. |
2603-1424B
|
[1] |
FRAME;MAIN
|
2603-1424C
|
| 1. |
2603-1424C
|
[1] |
FRAME;MAIN
|
|
| 1. |
2603-1424E
|
[1] |
FRAME;MAIN
|
|
| 1. |
2603-1424G
|
[1] |
FRAME;MAIN
|
|
| 1. |
2603-1424H
|
[1] |
FRAME;MAIN
|
|
| 1. |
2603-1424J
|
[1] |
FRAME;MAIN
|
|
| 1. |
2603-1424K
|
[1] |
FRAME;MAIN
|
2603-1424L
|
| 1. |
2603-1424L
|
[1] |
FRAME;MAIN
|
|
| 1. |
2603-1424M
|
[1] |
FRAME;MAIN
|
2603-1424N
|
| 1. |
2603-1424N
|
[1] |
FRAME;MAIN
|
2603-1424P
|
| 1. |
2603-1424P
|
[1] |
FRAME;MAIN
|
2603-1424Q
|
| 1. |
2603-1424Q
|
[1] |
FRAME;MAIN
|
2603-1424R
|
| 1. |
2603-1424R
|
[1] |
FRAME;MAIN
|
|
| 1. |
2603-1424S
|
[1] |
FRAME;MAIN
|
603-00114
|
| 1. |
603-00114
|
[1] |
FRAME;MAIN
|
|
| 10. |
S5102603
|
[1] |
. WASHER
|
|
| 11. |
S5010613
|
[1] |
WASHER
|
|
| 12. |
2624-1087
|
[1] |
WEIGHT;COUNTER
|
|
| 12. |
2624-1087A
|
[1] |
WEIGHT;COUNTER
|
|
| 13. |
S0764661
|
[4] |
BOLT M14X1.5X140
|
|
| 14. |
S5102803
|
[4] |
WASHER
|
|
| 15. |
2114-1755
|
[4] |
WASHER
|
|
| 16. |
2621-3250A
|
[1] |
COVER;UNDER
|
|
| 16. |
2621-3250B
|
[1] |
COVER;UNDER
|
|
| 17. |
S0508853
|
[4] |
. BOLT
|
|
| 18. |
S5102503
|
[4] |
. WASHER
|
|
| 19. |
2114-1058D29
|
[4] |
WASHER
|
|
| 2. |
2110-1285
|
[4] |
BUSH
|
|
| 2. |
110-00127
|
[2] |
BUSH
|
|
| 20. |
02002-00680
|
[2] |
HINGE
|
2171-1116
|
| 20. |
2171-1116
|
[2] |
HINGE
|
|
| 21. |
2621-3251C
|
[1] |
COVER;BATTERY
|
|
| 21. |
2621-3251E
|
[1] |
COVER;BATTERY
|
|
| 22. |
41302-00004
|
[1] |
KEY ASS'Y
|
2172-9033
|
| 22. |
2172-9033
|
[1] |
KEY ASS'Y
|
|
| 23. |
S0508653
|
[4] |
BOLT
|
|
| 24. |
S5102503
|
[8] |
. WASHER
|
|
| 25. |
S5010513
|
[8] |
WASHER
|
|
| 26. |
S6710040
|
[3] |
NIPPLE;GREASE
|
|
| 27. |
30551-68106
|
[4] |
ELBOW;CONNECTOR 90`
|
2181-9098
|
| 27. |
2181-9098
|
[4] |
ELBOW
|
|
| 28. |
2181-1295A
|
[2] |
NIPPLE;CONNECTOR
|
|
| 29. |
2185-1006D47
|
[1] |
TUBE;GREASE 4.54-350
|
|
| 3. |
S6710040
|
[2] |
NIPPLE;GREASE
|
|
| 30. |
2185-1006D49
|
[1] |
TUBE;GREASE 4.54-950
|
|
| 31. |
2185-1006D48
|
[1] |
TUBE;GREASE 4.54-1300
|
|
| 32. |
864-06001
|
[1] |
GROMMET
|
|
| 33. |
30869-02037
|
[1] |
RUBBER;TRIM
|
2161-1744
|
| 33. |
2161-1744
|
[1] |
RUBBER
|
|
| 34. |
30869-02026
|
[2] |
REFLECTOR
|
2161-1744
|
| 34. |
2161-1744
|
[2] |
RUBBER
|
|
| 35. |
41301-01910
|
[1] |
GROMMET
|
|
| 35. |
41301-01310
|
[1] |
GROMMET
|
|
| 36. |
2161-2134
|
[2] |
HOUSING
|
|
| 37. |
6535-6001
|
[2] |
REFLECTOR
|
|
| 39. |
HCA2-23002
|
[1] |
KEY PLATE
|
|
| 4. |
2191-3806A
|
[1] |
COVER (A)
|
2191-3806B
|
| 4. |
2191-3806B
|
[1] |
COVER (A)
|
|
| 40. |
S0515753
|
[4] |
BOLT M12X1.75X55
|
|
| 41. |
S5102901
|
[4] |
. WASHER;SPRING
|
|
| 43. |
2161-2132A
|
[1] |
URETHAN FORM
|
2161-2132B
|
| 43. |
2161-2132B
|
[1] |
URETHAN FORM
|
|
| 44. |
2161-2133A
|
[1] |
URETHAN FORM
|
2161-2133B
|
| 44. |
2161-2133B
|
[1] |
URETHAN FORM
|
|
| 45. |
2197-1407
|
[1] |
BRACKET
|
2197-1407A
|
| 45. |
2197-1407A
|
[1] |
BRACKET
|
|
| 45. |
2197-1407B
|
[1] |
BRACKET
|
|
| 45. |
2197-1407C
|
[1] |
BRACKET
|
|
| 46. |
S0508753
|
[2] |
BOLT M8X1.25X18
|
|
| 47. |
S5102503
|
[2] |
. WASHER
|
|
| 48. |
S5010513
|
[2] |
WASHER
|
|
| 49. |
S3640653
|
[2] |
SCREW
|
|
| 5. |
S0508853
|
[6] |
. BOLT
|
|
| 50. |
2401-9217
|
[1] |
SWING MOTOR
|
|
| 6. |
S5102503
|
[6] |
. WASHER
|
|
| 7. |
S5010513
|
[6] |
WASHER
|
|
| 8. |
2621-3300A
|
[1] |
COVER (B)
|
|
| 9. |
S0511853
|
[1] |
BOLT
|
|
