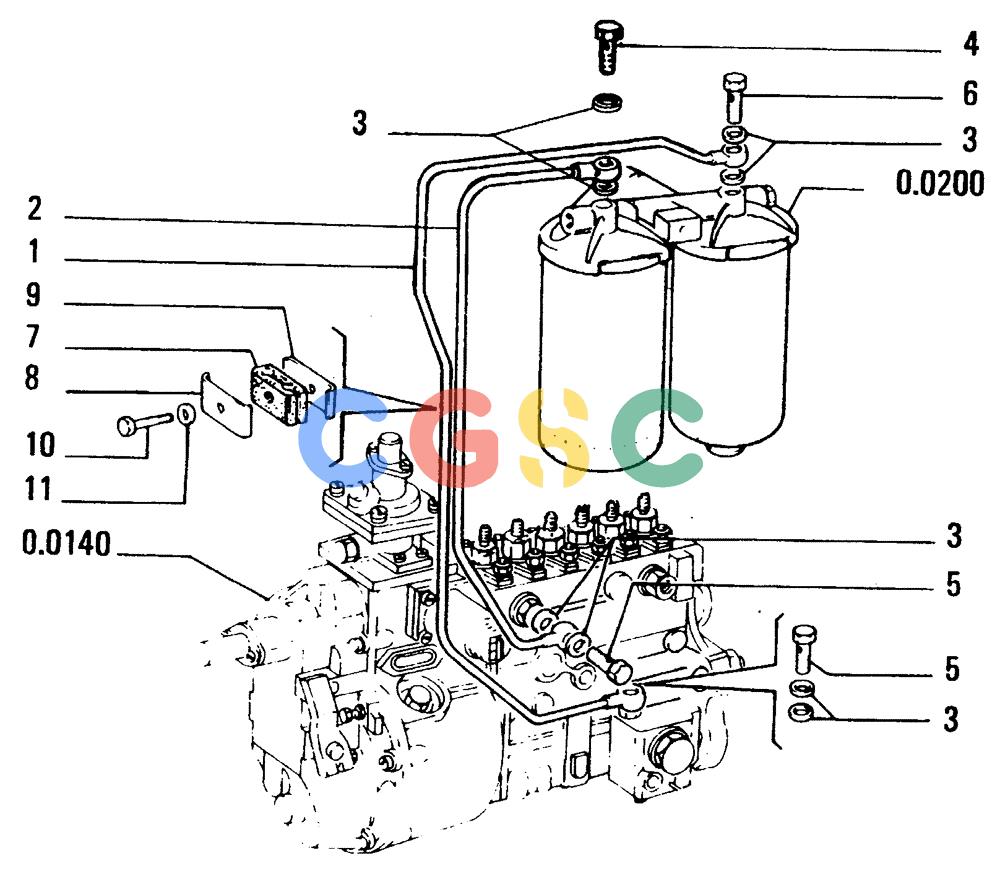

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0200[001]) - PIPING-INJECTION EQUIPMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
436 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4807719 | [1] | RIGID TUBE | BRETUBE |
| 2. | 4807721 | [1] | RIGID TUBE | BRETUBE |
| 3. | 10280060 | [8] | SEAL,M14.2 x 20 x 1.5 | TTFGASKET 14,2x20 Superseded by part number: 4858608 |
| 4. | 770057 | [1] | BANJO BOLT | BREFITTING |
| 5. | 10184317 | [2] | BANJO BOLT,M14 x 1.5 x 27mm | BHBFITTING 14x1,5x27 Superseded by part number: 10184311 |
| 6. | 10184311 | [1] | BANJO BOLT,M14 x 1.5 x 27mm | LECFITTING 14x1,5x27 Superseded by part number: 4864083 |
| 7. | 4871771 | [1] | HOSE CLIP | MODBLOCK |
| 8. | 4871773 | [1] | CLAMP | MODCLIP |
| 9. | 4871774 | [1] | CLAMP | MODCLIP |
| 10. | 10902621 | [1] | SCREW,Hex, M6 x 25mm, Cl 8.8 | TTFBOLT, Hex, M6 x 25, 8.8 Superseded by part number: 10902624 |
| 11. | 11197771 | [1] | LOCK WASHER | TTFLOCKWASHER 6,4x12 Superseded by part number: 17088474 |
