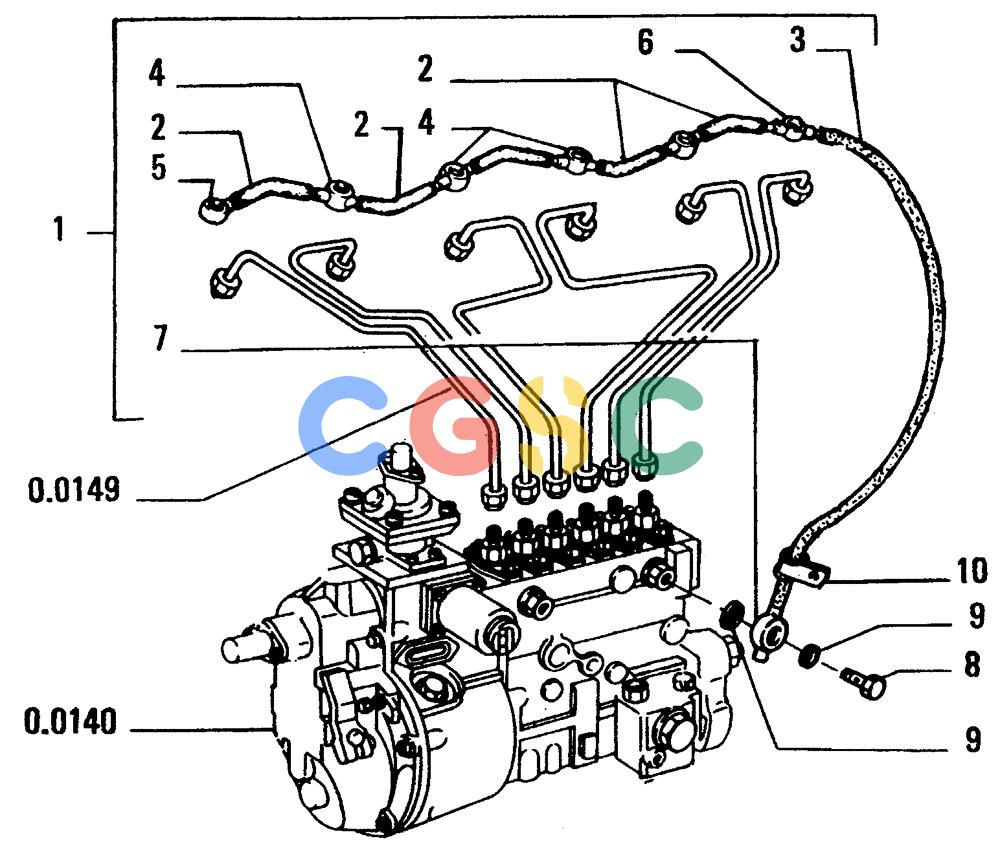

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0203[001]) - PIPING-INJECTION EQUIPMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
211 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4808232 | [1] | RIGID TUBE | LECHOSE-ASSEMBLY Superseded by part number: 4850597, 4850599 |
| 2. | 8830409 | [5] | HYD. TUBE | MODHOSE Superseded by part number: 19052982 |
| 3. | 4808233 | [1] | FLEXIBLE HOSE | LECHOSE |
| 4. | 4647658 | [4] | HYD CONNECTOR | LECFITTING Superseded by part number: 4647659 |
| 5. | 4647661 | [1] | HYD CONNECTOR | MODFITTING |
| 6. | 4805697 | [1] | HYD CONNECTOR | LECFITTING |
| 7. | 4792383 | [1] | HYD CONNECTOR | LECFITTING |
| 8. | 10184311 | [1] | BANJO BOLT,M14 x 1.5 x 27mm | LECFITTING 14x1,5x27 Superseded by part number: 4864083 |
| 9. | 10280060 | [2] | SEAL,M14.2 x 20 x 1.5 | TTFGASKET 14,2x20 Superseded by part number: 4858608 |
| 10. | 10450090 | [1] | CLAMP,8mm, Coat, 9mm Bolt Hole, P Type | IMO8 x 9 |
