纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0270[001]) - FILLER CAP-OIL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
452 次

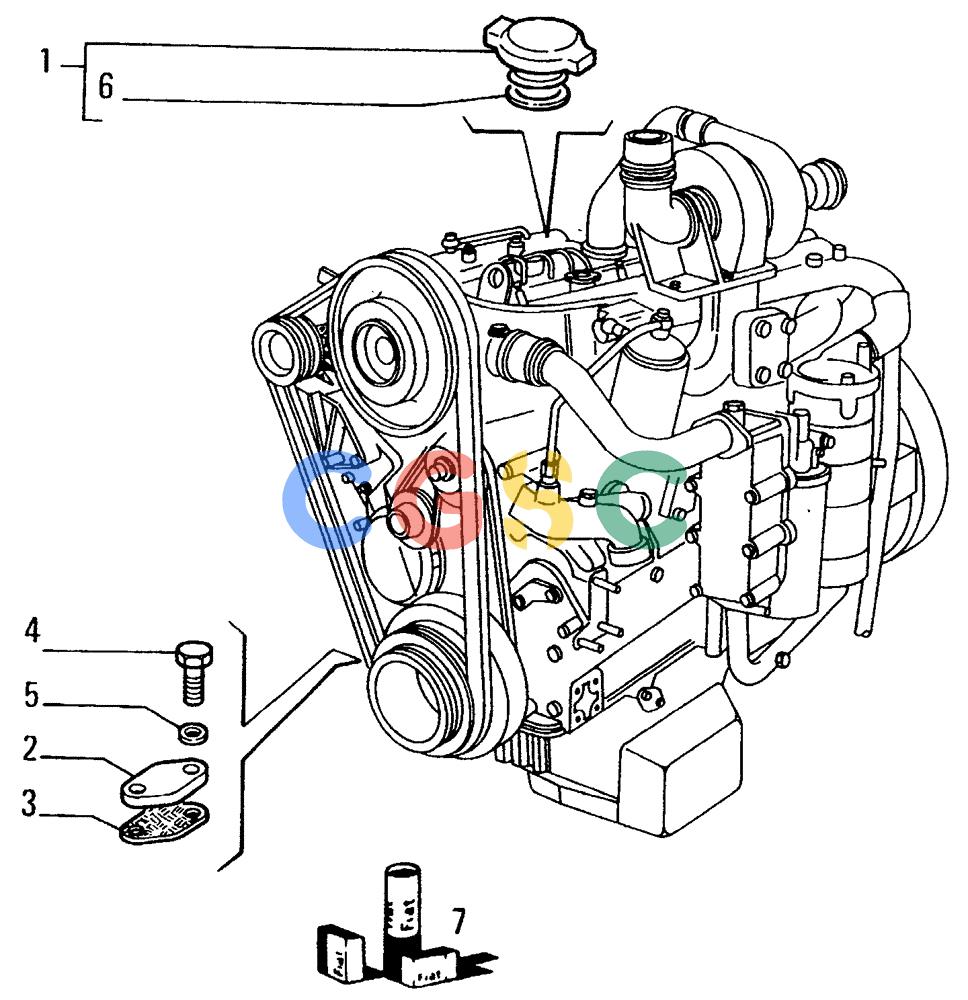

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4232606 | [1] | PLUG | TORFILLER CAP-ASSEMBLY Superseded by part number: 98418980 |
| 2. | 4726341 | [1] | COVER | BRE |
| 3. | 4723428 | [1] | GASKET | MOD Superseded by part number: 4858225 |
| 4. | 16043821 | [2] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd | BASBOLT, Hex, M8 x 30, 8.8 Superseded by part number: 16605724 |
| 5. | 11193871 | [2] | BELLEVILLE WASHER,Belleville, M8.4 | TTFLOCKWASHER 8,4x16 Superseded by part number: 11193874 |
| 6. | 4161222 | [1] | SEAL | MOD Superseded by part number: 98418978 |
| 7. | 79037375 | [1] | KIT | LECSEE PAGE 32 Superseded by part number: 76033060 |
| 7. | 79037448 | [1] | ENGINE GASKET KIT | LECKIT SEE PAGE 32 Superseded by part number: 75127433 |
