纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0300[001]) - OIL PUMP-ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
394 次

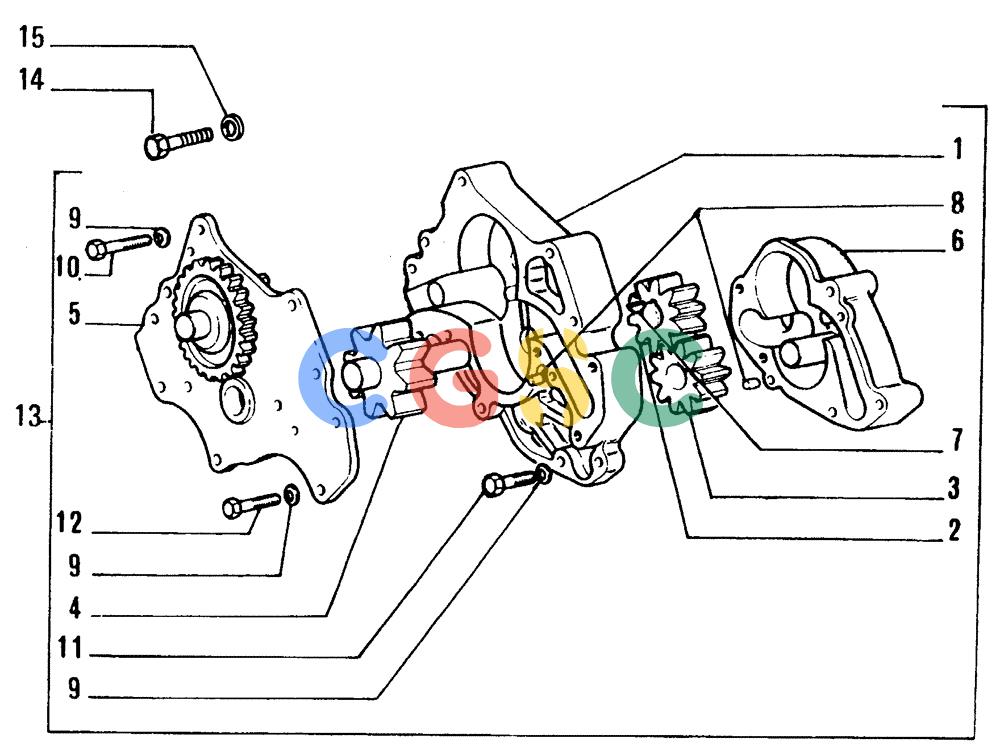

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4720886 | [1] | BODY | LEC Superseded by part number: 4721103 |
| 2. | 4721106 | [1] | DRIVING GEAR | MODGEAR |
| 3. | 4721107 | [1] | DRIVEN GEAR | MODGEAR Superseded by part number: 4721103 |
| 4. | 4721108 | [1] | SHAFT | MOD |
| 5. | 4721109 | [1] | COVER | MOD |
| 6. | 4721110 | [1] | BODY | MODCOVER |
| 7. | 10205920 | [1] | WOODRUFF KEY,5mm x 9mm x 21.63mm | MKTKEY 9x5 Superseded by part number: 17221220 |
| 8. | 10839510 | [4] | DOWEL,M6 x 9 | TTF Superseded by part number: 17275310 |
| 9. | 11198071 | [10] | BELLEVILLE WASHER,Belleville, M8.4 | TORWASHER, SPRING, Belleville, M8.4 Superseded by part number: |
| 10. | 16043421 | [5] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTFBOLT, Hex, M8 x 20, 8.8 Superseded by part number: 16043424 |
| 11. | 16043821 | [2] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd | BASBOLT, Hex, M8 x 30, 8.8 Superseded by part number: 16605724 |
| 12. | 16044221 | [3] | SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8 | TTFBOLT, Hex, M8 x 50, 8.8 Superseded by part number: 16606121 |
| 13. | 4721103 | [1] | ENGINE OIL PUMP | MODOIL PUMP-ASSEMBLY |
