纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0302[002]) - OIL FILTER-HEAT EXCHANGER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
698 次

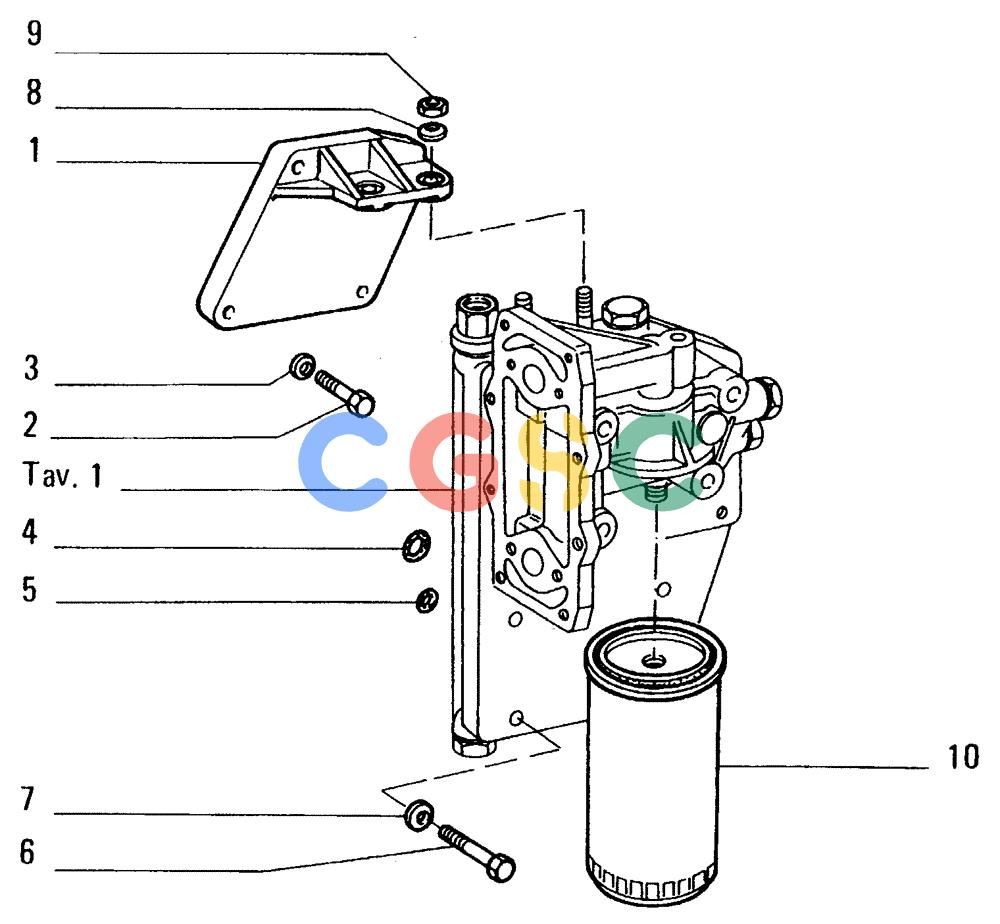

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4720881 | [1] | SUPPORT | BREBRACKET |
| 2. | 11307021 | [3] | BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd | TTF Superseded by part number: 11307024 |
| 3. | 11198379 | [3] | SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk | TTFLOCKWASHER 10,5x20 Superseded by part number: 11198374 |
| 4. | 14458081 | [2] | O-RING,1.112" ID x 0.103" Width | TTF-122, Cl 7, 1.112" ID x .103" Thk |
| 5. | 14457681 | [1] | O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro | TTF-118, Cl 7, .862" ID x .103" Thk |
| 6. | 15541121 | [4] | SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8 | TTF12x1,25x65 Superseded by part number: 15541134 |
| 7. | 11198771 | [4] | BELLEVILLE WASHER,Belleville, M13 | MKTLOCKWASHER 13x30 |
| 8. | 11198671 | [2] | BELLEVILLE WASHER,Belleville, M13 | MKTLOCKWASHER 13x24 Superseded by part number: 17091174 |
| 9. | 16101511 | [2] | NUT,M12 x 1.25, Cl 8 | TTF12x1,25x10 - IN ALTERNATIVE Superseded by part number: |
