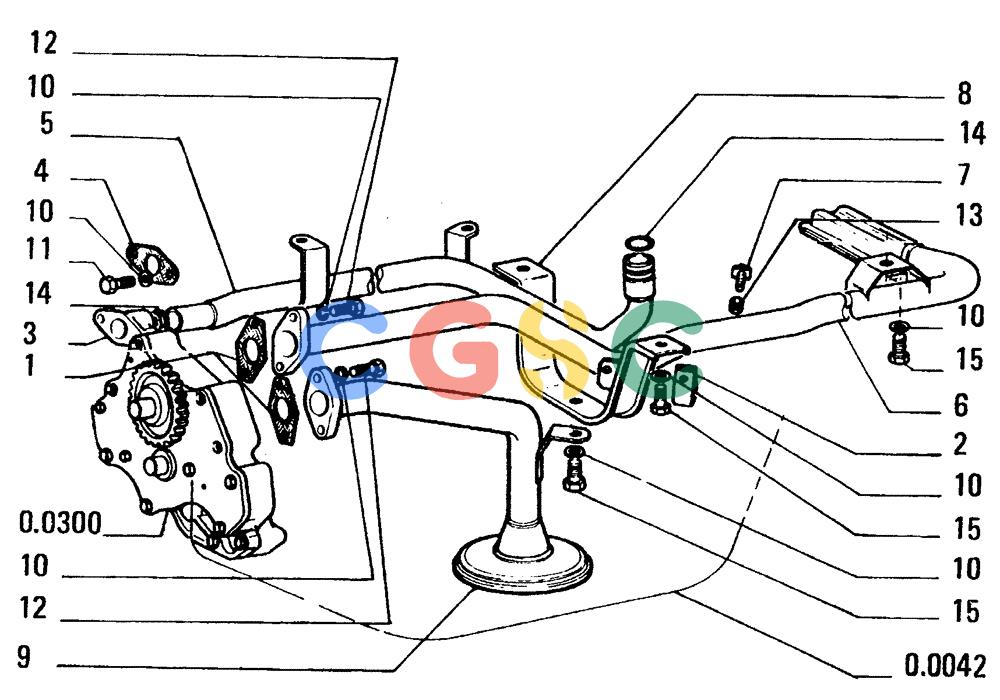

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0305[001]) - PIPING-OIL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
830 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4527400 | [2] | GASKET | MOD Superseded by part number: 98412164 |
| 2. | 4684881 | [1] | RETAINER | MODCLIP Superseded by part number: 4760226 |
| 3. | 4692711 | [1] | HYD CONNECTOR | MODFITTING |
| 4. | 38830379 | [1] | GASKET | MKT Superseded by part number: 98412165 |
| 5. | 4724228 | [1] | RIGID TUBE | MODTUBE |
| 6. | 4724237 | [1] | RIGID TUBE | MODTUBE |
| 7. | 4736313 | [1] | SCREW | LEC |
| 8. | 4737249 | [1] | BRACKET | MODCLIP |
| 9. | 4774760 | [1] | RIGID TUBE | LECTUBE |
| 10. | 11193870 | [12] | BELLEVILLE WASHER | LECLOCKWASHER 8,4x22 Superseded by part number: 11193874 |
| 11. | 16044024 | [2] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8 | TTFBOLT, Hex, M8 x 40, 8.8 |
| 12. | 16043624 | [4] | SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | TTFBOLT, Hex, M8 x 25, 8.8, Full Thd |
| 13. | 14048227 | [1] | LOCK NUT,M8 x 1.25, Cl 10 | LECNUT 8x1,25x8,8 |
| 14. | 14457581 | [4] | O-RING,0.799" ID x 0.103" Width | TTF-117, Cl 7, .799" ID x .103" Thk |
| 15. | 16043324 | [6] | BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd | TTFBOLT, Hex, M8 x 18, 8.8, Full Thd |
