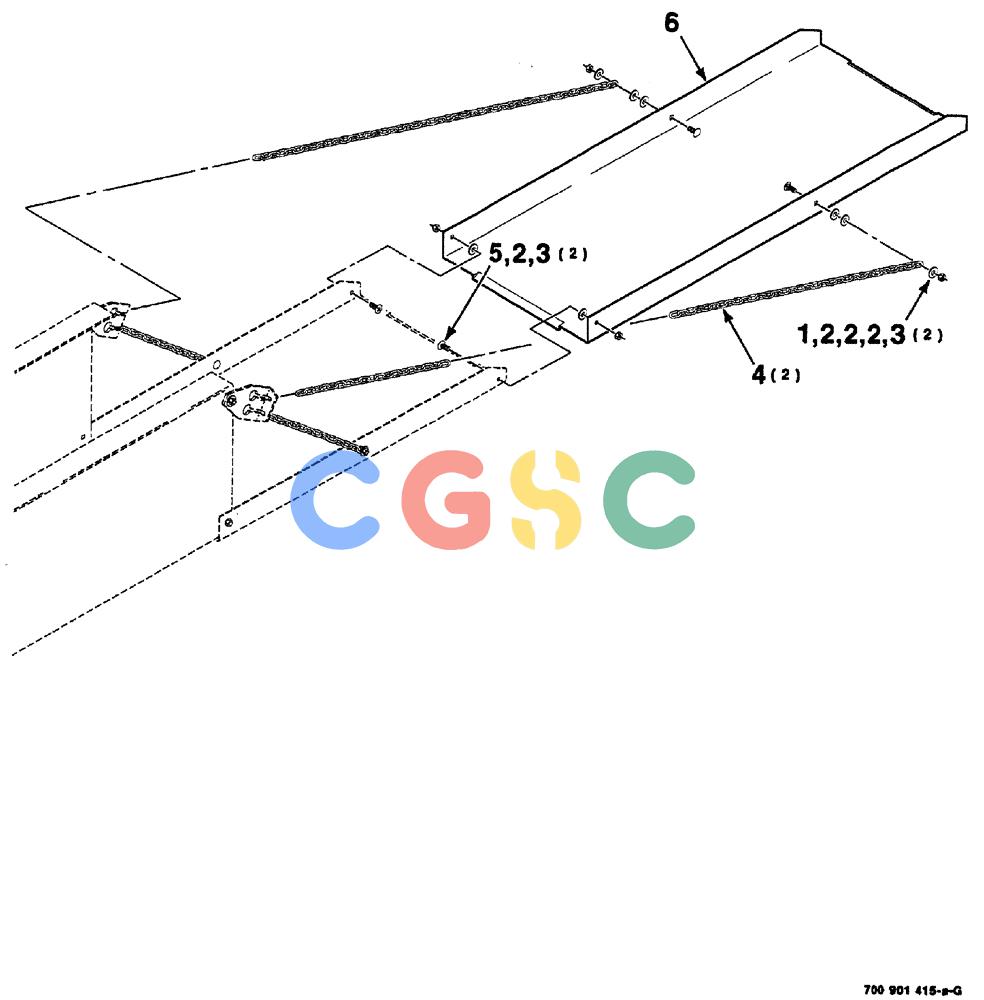

凯斯零件查询(8555) - CASE IH RECTANGULAR BALER (1/90-12/99) (09-20) - BALE CHUTE EXTENSION KIT, HK40417, TO BE ORDERED THROUGH WHOLEGOODS ONLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
371 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK40417
|
[1] |
CHUTE (DOWNWARD)
|
ATT
KIT bale extension, complete
|
| 1. |
433-620
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 86508773
|
| 2. |
495-21044
|
[8] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 3. |
232-5316
|
[4] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
lock hex flange top, 3/8-16, GR/G Superseded by part number: 86521609
|
| 4. |
6559504
|
[2] |
CHAIN (AG)
|
CAS
|
| 5. |
440-13812
|
[2] |
SCREW,Cross Pan Hd, 3/8"-16 x 3/4"
|
CAS
cross recess pan head thread machine, 3/8-16 x 3/4 Superseded by part number: 86511946
|
| 6. |
6559512
|
[1] |
CHUTE (DOWNWARD)
|
CAS
TABLE bale
|
