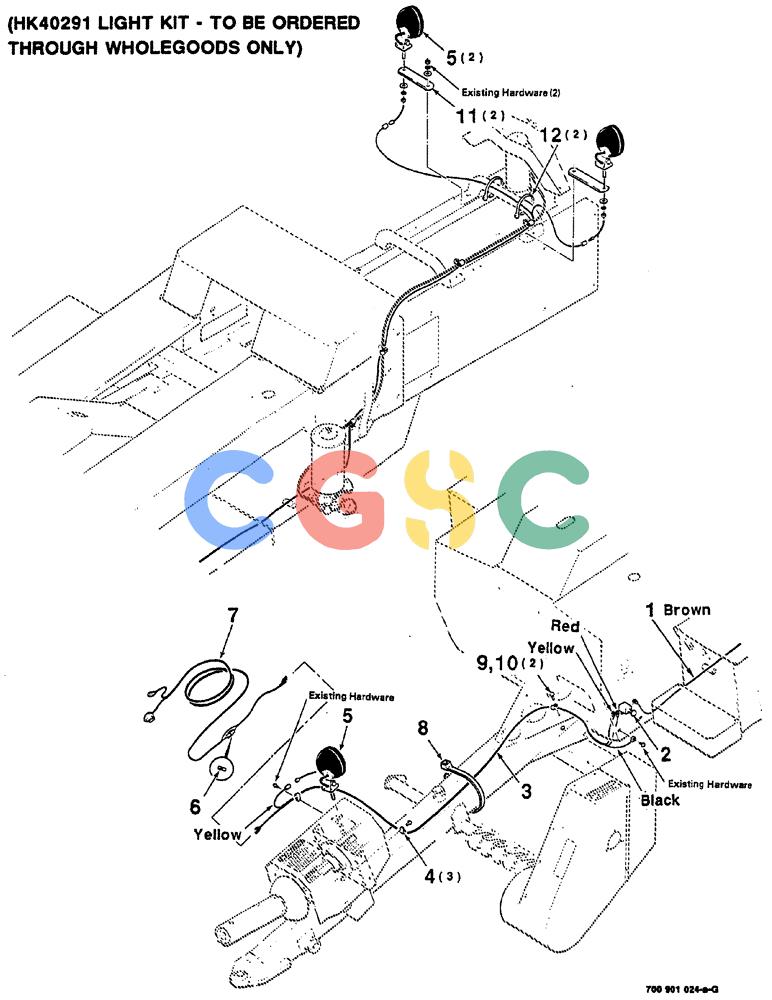

凯斯零件查询(8555) - CASE IH RECTANGULAR BALER (1/90-12/99) (09-22) - LIGHT KIT, HK40291 TO BE ORDERED THROUGH WHOLEGOODS ONLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK40291
|
[1] |
KIT light, complete
|
|
| 1. |
700704526
|
[1] |
WIRE HARNESS
|
CAS
wiring, rear lamps
|
| 2. |
80041137
|
[1] |
|
FRAME
|
| 3. |
700704525
|
[1] |
WIRE HARNESS
|
CAS
, Serial Range: wiring-switch
|
| 4. |
515-2363
|
[3] |
CLAMP,M6.3, Insul, 3/8" Bolt
|
CAS
line Superseded by part number: 675162
|
| 5. |
CAS41624
|
[3] |
LAMP
|
CAS
ASSEMBLY head
|
| 6. |
9426333
|
[1] |
FUSE,15 Amp, Type 3AG
|
IH
15 amp Superseded by part number: 590420
|
| 7. |
2700179
|
[1] |
ELECTRICAL WIRE
|
CAS
WIRE harness
|
| 8. |
386170C1
|
[1] |
CABLE TIE,.30" x 27 1/2"
|
IH
CABLE STRAP CABLE tie Superseded by part number: 435437A1
|
| 9. |
409-7612
|
[2] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 10. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 11. |
700108708
|
[2] |
STRAP
|
CAS
mounting lamp
|
| 12. |
L18337
|
[2] |
CABLE TIE,9.95"-12.1" lg
|
CAS
CABLE STRAP CABLE tie Superseded by part number: 529070
|
