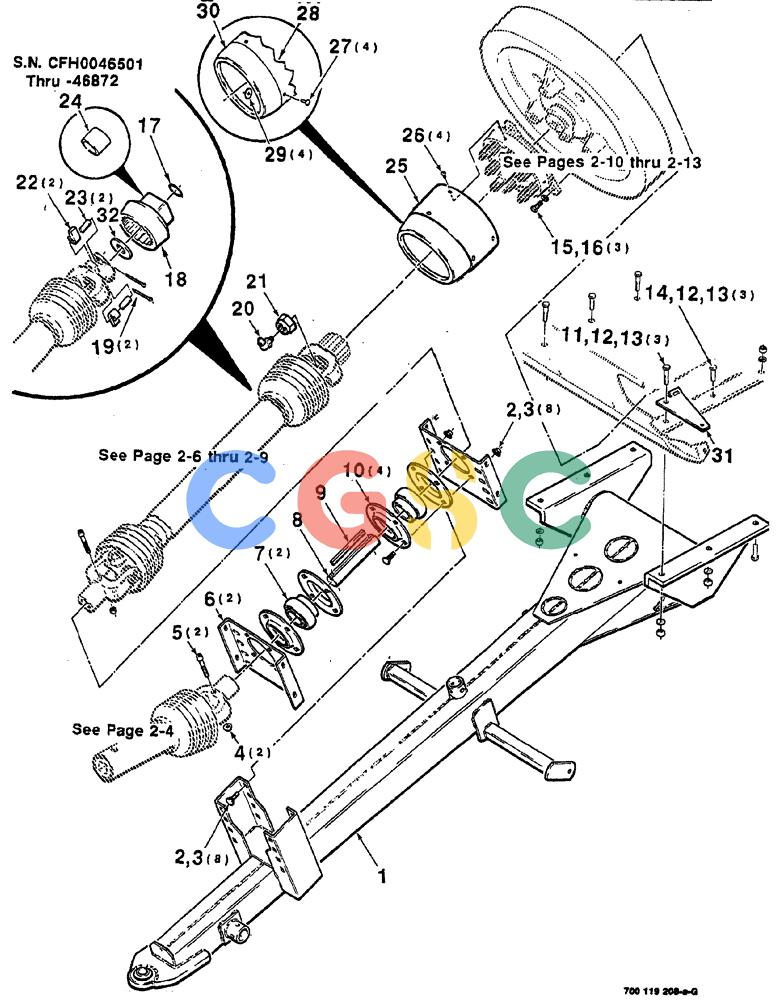

| 1. |
700108378
|
[1] |
TOW BAR
|
HFI
TONGUE, WA
|
| 2. |
433-816
|
[16] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
|
CAS
BOLT round head, square neck, 1/2-13 x 1 Superseded by part number: 280486
|
| 3. |
231-5148
|
[16] |
FLANGE NUT,Flg, USR, 1/2"-13
|
CAS
Superseded by part number: 72187069, 86512371
|
| 4. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
lock hex flange top, 3/8-16, GR/G Superseded by part number: 86521609
|
| 5. |
61-33848
|
[2] |
HEX SOC SCREW,3/8"-16 x 3"
|
CAS
SCREW cap, hex socket head, 3/8-16 x 3, SPL Superseded by part number: 82067
|
| 6. |
700108525
|
[2] |
SUPPORT
|
HFI
bearing
|
| 7. |
700704263
|
[2] |
SPHERICAL BEARING,55.562 mm ID x 100 mm OD x 48.4 mm
|
CAS
spherical Superseded by part number: 76451
|
| 8. |
700108507
|
[1] |
SHAFT
|
CAS
intermediate
|
| 9. |
700108529
|
[1] |
KEY
|
CAS
5/16 x 5.315
|
| 10. |
714360
|
[4] |
FLANGED BEARING
|
IH
flange
|
| 11. |
413-1032
|
[3] |
BOLT,Hex, 5/8" - 11 x 2", Gr 5
|
CAS
Superseded by part number: 86505999
|
| 12. |
492-11062
|
[6] |
BEARING WASHER,5/8"
|
CAS
Superseded by part number: 86729275
|
| 13. |
425-1010
|
[6] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 14. |
413-1028
|
[3] |
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5
|
CAS
SCREW hex cap, 5/8-11 x 1-3/4 Superseded by part number: 9627896
|
| 15. |
413-820
|
[3] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| 16. |
80679
|
[3] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 17. |
238-6225
|
[1] |
O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro
|
CAS
|
| 18. |
700124095
|
[1] |
HOUSING
|
CAS
clutch
|
| 19. |
432-828
|
[2] |
COTTER PIN,1/8" x 1 3/4"
|
CAS
Superseded by part number: 87673
|
| 20. |
219-36
|
[1] |
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
|
CAS
Zerk, 1/8-27 x 90° Superseded by part number: 80717
|
| 21. |
131-73
|
[1] |
NUT,3/4"-16
|
CAS
light hex stop, 3/4-16, Serial Range: CFH-0046501-CFH-0046872
|
| . . |
231-46112
|
[1] |
LOCK NUT,3/4"-16, GB
|
CAS
lock hex top, 3/4-16, Start Serial: CFH-0046873
|
| 22. |
6522924
|
[2] |
CLUTCH
|
CAS
pawl
|
| 23. |
6522916
|
[2] |
PIN
|
CAS
pawl
|
| 24. |
700122631
|
[1] |
BRONZE BUSHING
|
CAS
bronze
|
| 25. |
700119204
|
[1] |
SHIELD
|
HFI
ASSEMBLY, Includes: Ref. 27 - 30, Serial Range: CFH-0046501-CFH-0046872
|
| . . |
700130425
|
[1] |
SHIELD
|
HFI
ASSEMBLY, Start Serial: CFH-0046873
|
| 26. |
70417
|
[4] |
BOLT
|
CAS
SCREW cross recess pan head machine, 1/4-20 x 1/2
|
| 27. |
64642
|
[4] |
RIVET
|
CAS
pop
|
| 28. |
700119205
|
[1] |
SHIELD
|
HFI
clutch, Serial Range: CFH-0046501-CFH-0046872
|
| . . |
700130426
|
[1] |
SHIELD
|
HFI
clutch, Serial Range: CFH-0046501-CFH-0046872
|
| 29. |
700703962
|
[4] |
WASHER
|
HFI
|
| 30. |
700108691
|
[1] |
CAP
|
HFI
shield
|
| 31. |
700108427
|
[1] |
SUPPORT
|
HFI
|
| 32. |
740522
|
[1] |
WASHER
|
CAS
|
