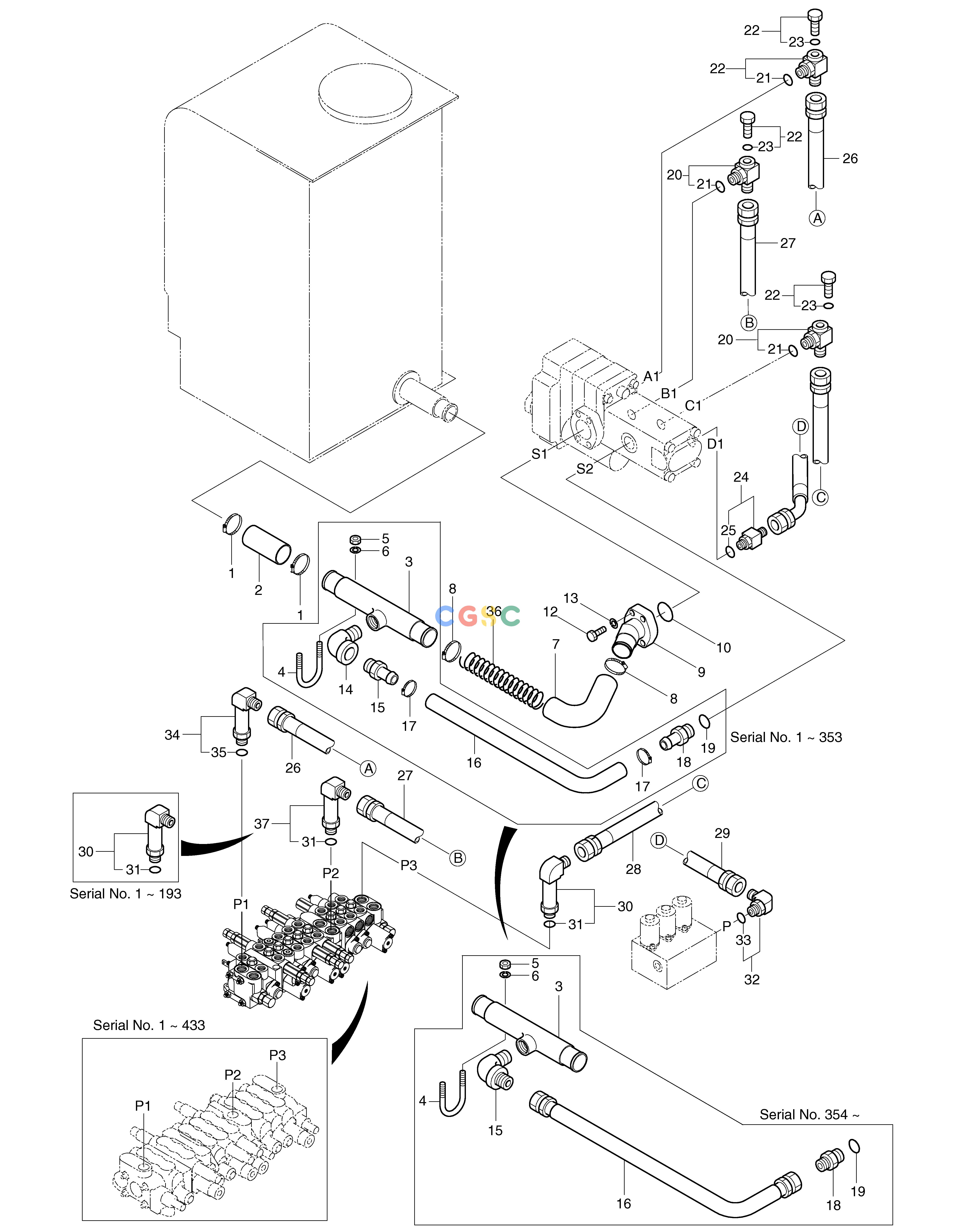

斗山零件查询HYDRAULIC PIPING(1) SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
662 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-7092
|
[-] |
MAIN PIPING
|
|
| 1. |
S8450044
|
[2] |
CLAMP;HOSE
|
|
| 10. |
2180-1026D23
|
[1] |
O-RING
|
|
| 12. |
S2212361
|
[4] |
BOLT;SOCKET M10X1.5X35
|
|
| 13. |
S5110611
|
[4] |
WASHER;SPRING M10
|
|
| 14. |
2181-1104D4
|
[1] |
ELBOW PT3/4-3/4
|
|
| 15. |
2181-2580
|
[1] |
ADAPTER PT3/4
|
|
| 15. |
2181-1111D4
|
[1] |
ELBOW
|
|
| 16. |
2185-1002D92
|
[1] |
HOSE 19-600L
|
|
| 16. |
2184-1026D235
|
[1] |
HOSE
|
|
| 17. |
S8450018
|
[2] |
CLAMP;HOSE
|
|
| 18. |
2181-2104D6
|
[1] |
ADAPTER
|
|
| 18. |
2181-1126D88
|
[1] |
ADAPTER PFO1/2-PF3/4
|
|
| 19. |
S8000181
|
[1] |
O-RING
|
8202-014
|
| 2. |
2185-1002D25
|
[1] |
HOSE
|
|
| 20. |
2181-2576D1
|
[3] |
TEE
|
|
| 21. |
S8000181
|
[3] |
O-RING
|
8202-014
|
| 22. |
2181-2047A
|
[3] |
PLUG
|
|
| 23. |
S8000111
|
[3] |
O-RING
|
8202-009
|
| 24. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 25. |
S8000141
|
[1] |
O-RING
|
8202-011
|
| 26. |
2184-1026D292
|
[1] |
HOSE PF1/2-1500L
|
|
| 26. |
2184-1026D321
|
[1] |
HOSE PF1/2X1420L
|
|
| 26. |
2184-1026D292
|
[1] |
HOSE PF1/2-1500L
|
|
| 27. |
2184-1026D361
|
[1] |
HOSE PF1/2-1200L
|
|
| 28. |
2184-1026D197
|
[1] |
HOSE PF1/2-900L
|
|
| 29. |
2184-1060D7
|
[1] |
HOSE;ST-45 550L
|
|
| 3. |
2193-1324A
|
[1] |
PIPE;SUCTION
|
2193-1324B
|
| 3. |
2193-1324B
|
[1] |
PIPE;SUCTION
|
|
| 30. |
2181-1702D53
|
[2] |
ELBOW
|
|
| 30. |
2181-1702D53
|
[1] |
ELBOW
|
|
| 31. |
S8000181
|
[2] |
O-RING
|
8202-014
|
| 32. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 32. |
2471-1147
|
[1] |
FILTER;ADAPTER
|
|
| 33. |
S8000111
|
[1] |
O-RING
|
8202-009
|
| 34. |
2181-1702D33
|
[1] |
ELBOW
|
|
| 34. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 34. |
2181-1702D33
|
[1] |
ELBOW
|
|
| 35. |
S8000181
|
[1] |
O-RING
|
8202-014
|
| 36. |
2129-1425
|
[1] |
SPRING
|
|
| 37. |
2181-1702D15
|
[1] |
ELBOW
|
|
| 4. |
2120-1413D9
|
[2] |
BOLT;U
|
|
| 5. |
S4012633
|
[4] |
NUT
|
|
| 6. |
S5102603
|
[4] |
. WASHER
|
|
| 7. |
2185-1002D86
|
[1] |
HOSE 400L
|
|
| 8. |
S8450044
|
[2] |
CLAMP;HOSE
|
|
| 9. |
2193-1384
|
[1] |
PIPE;SUCTION(A)
|
|
