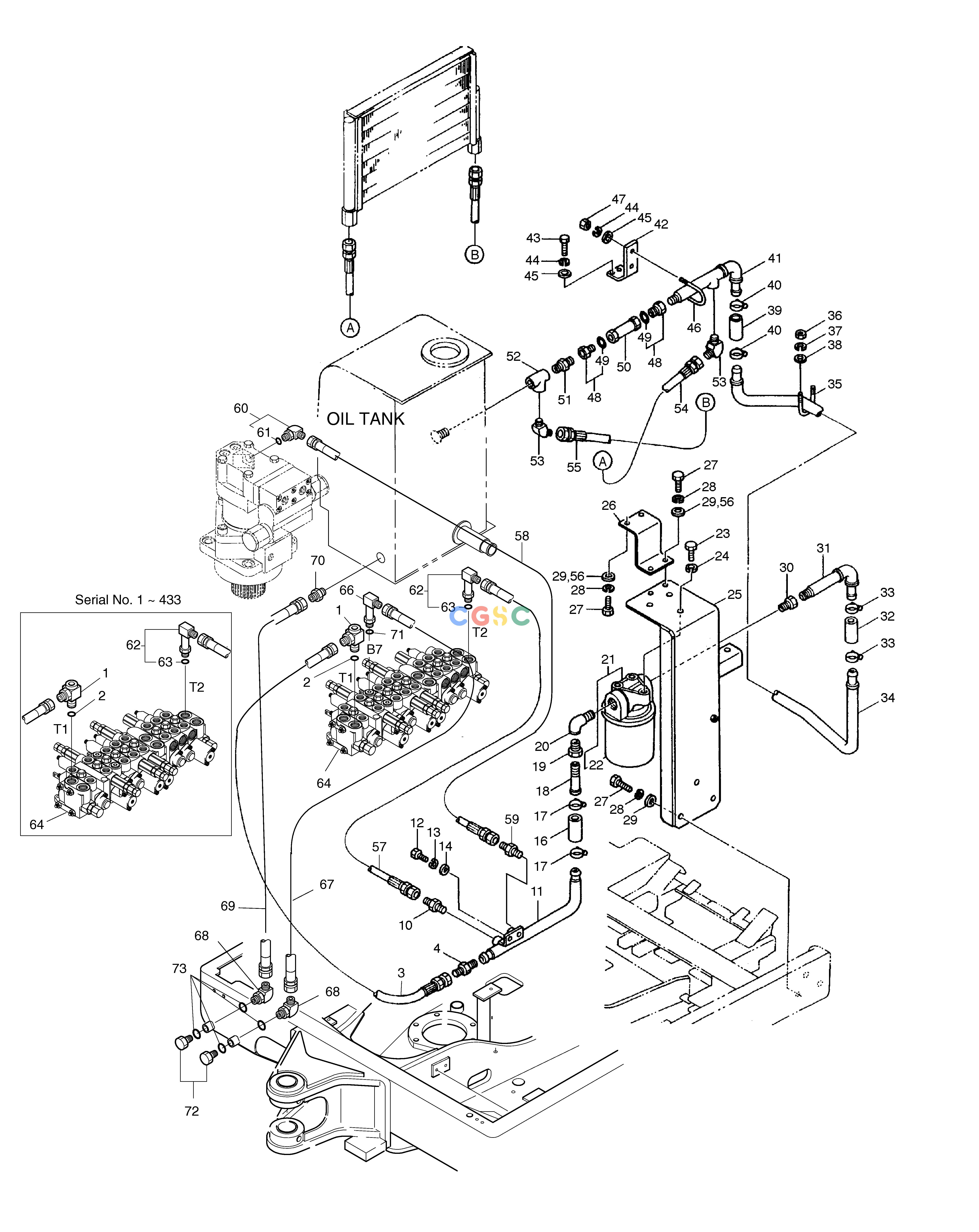

斗山零件查询HYDRAULIC PIPING(2) SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-7091
|
[-] |
LOW PIPING
|
|
| 1. |
2181-1702D50
|
[1] |
ELBOW
|
|
| 1. |
2181-1702D15
|
[1] |
ELBOW
|
|
| 1. |
2181-1702D50
|
[1] |
ELBOW
|
|
| 10. |
2181-1110D3
|
[1] |
. ADAPTER
|
|
| 11. |
2182-1612
|
[1] |
MANIFOLD
|
2182-1612A
|
| 11. |
2182-1612A
|
[1] |
MANIFOLD
|
|
| 12. |
S0512053
|
[2] |
BOLT
|
|
| 13. |
S5102603
|
[2] |
. WASHER
|
|
| 14. |
S5010613
|
[2] |
WASHER
|
|
| 16. |
2185-1003D35
|
[1] |
HOSE
|
|
| 17. |
S8450044
|
[2] |
CLAMP;HOSE
|
|
| 18. |
2193-1327
|
[1] |
PIPE;RETURN(A)
|
|
| 19. |
2181-1113D15
|
[1] |
REDUCER PT1 1/4XPT1
|
|
| 2. |
S8000181
|
[1] |
O-RING
|
8202-014
|
| 20. |
30553-31000
|
[1] |
ELBOW PT3/4
|
S7001060
|
| 20. |
S7001060
|
[1] |
ELBOW
|
|
| 21. |
562-03100
|
[1] |
LINE FILTER ASS'Y
|
|
| 22. |
562-03400
|
[1] |
ELEMENT;LINE FILTER
|
|
| 23. |
S0515053
|
[3] |
BOLT M12X1.75X25
|
|
| 24. |
S5102703
|
[3] |
WASHER
|
|
| 25. |
2197-1266A
|
[1] |
BRACKET;FILTER
|
|
| 26. |
2197-1376A
|
[1] |
BRACKET;SUPPORT
|
2197-1376B
|
| 26. |
2197-1376B
|
[1] |
BRACKET;SUPPORT
|
|
| 27. |
S0511853
|
[7] |
BOLT
|
|
| 28. |
S5102603
|
[7] |
. WASHER
|
|
| 29. |
S5010613
|
[3] |
WASHER
|
|
| 3. |
2184-1026D197
|
[1] |
HOSE PF1/2-900L
|
|
| 30. |
2181-1113D15
|
[1] |
REDUCER PT1 1/4XPT1
|
|
| 31. |
2140-1157A
|
[1] |
PIPE;RETURN(B)
|
|
| 32. |
2185-1003D35
|
[1] |
HOSE
|
|
| 33. |
S6450044
|
[4] |
CLAMP;HOSE
|
|
| 34. |
2193-1328A
|
[1] |
PIPE;RETURN(B)
|
2193-1328B
|
| 34. |
2193-1328B
|
[1] |
PIPE;RETURN(B)
|
|
| 35. |
2120-1413D10
|
[2] |
BOLT;U M10X1.5
|
|
| 36. |
S4012633
|
[4] |
NUT
|
|
| 37. |
S5102603
|
[4] |
. WASHER
|
|
| 38. |
S5010613
|
[4] |
WASHER
|
|
| 39. |
2185-1002D87
|
[1] |
HOSE
|
|
| 4. |
2181-1110D3
|
[1] |
. ADAPTER
|
|
| 40. |
S8450044
|
[4] |
CLAMP;HOSE
|
|
| 41. |
2193-1329
|
[1] |
PIPE;RETURN(D)
|
|
| 41. |
2193-1329A
|
[1] |
PIPE;RETURN(D)
|
|
| 42. |
2191-3947
|
[1] |
BRACKET;PIPE
|
2191-3947A
|
| 42. |
2191-3947A
|
[1] |
BRACKET;PIPE
|
|
| 43. |
S0512053
|
[2] |
BOLT
|
|
| 44. |
S5102603
|
[4] |
. WASHER
|
|
| 45. |
2114-1058D10
|
[4] |
WASHER
|
|
| 46. |
2120-1413D10
|
[1] |
BOLT;U M10X1.5
|
|
| 47. |
S4012633
|
[2] |
NUT
|
|
| 48. |
2181-2577D4
|
[2] |
REDUCER
|
|
| 49. |
S8000291
|
[2] |
O-RING
|
8202-023
|
| 50. |
40501-00340
|
[1] |
VALVE;CHECK
|
|
| 51. |
2181-1114D10
|
[1] |
ADAPTER PT1XPT1
|
|
| 52. |
30554-62002
|
[1] |
TEE
|
2181-2705
|
| 52. |
2181-2705
|
[1] |
TEE
|
2181-9120
|
| 52. |
2181-9120
|
[1] |
TEE
|
|
| 53. |
2181-1187D3
|
[4] |
ELBOW 45 PF,PT1/2
|
2181-1187D4
|
| 53. |
2181-1187D4
|
[4] |
ELBOW;HOSE PT3/4.45'
|
|
| 54. |
2184-1268D1
|
[1] |
HOSE 600L
|
2184-1268D3
|
| 54. |
2184-1268D3
|
[1] |
HOSE 600L
|
|
| 55. |
2184-1268D2
|
[1] |
HOSE 450L
|
2184-1268D4
|
| 55. |
2184-1268D4
|
[1] |
HOSE 450L
|
|
| 56. |
2114-1058D10
|
[4] |
WASHER
|
|
| 57. |
2184-1026D95
|
[1] |
HOSE PF1/2-450L
|
|
| 58. |
2184-1026D324
|
[1] |
HOSE PF3/8-900L
|
|
| 59. |
2181-1110D13
|
[1] |
ADAPTER PT1/2-PF3/8
|
|
| 60. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 61. |
S8000141
|
[1] |
O-RING
|
8202-011
|
| 62. |
2181-1702D50
|
[1] |
ELBOW
|
|
| 63. |
S8000181
|
[1] |
O-RING
|
8202-014
|
| 64. |
2420-9393
|
[1] |
CONTROL VALVE
|
|
| 64. |
426-00021
|
[1] |
CONTROL VALVE
|
|
| 66. |
2181-1702D35
|
[1] |
ELBOW
|
|
| 67. |
2184-1026D258
|
[1] |
HOSE PF1/2-2000L
|
|
| 68. |
2181-1702D2
|
[2] |
ELBOW
|
|
| 69. |
2184-1026D313
|
[1] |
HOSE PF1/2-750L
|
|
| 70. |
2181-1110D10
|
[1] |
ADAPTER
|
|
| 71. |
S8000141
|
[1] |
O-RING
|
|
| 72. |
2181-1950D3
|
[2] |
PLUG
|
|
| 73. |
S8000181
|
[4] |
O-RING
|
|
