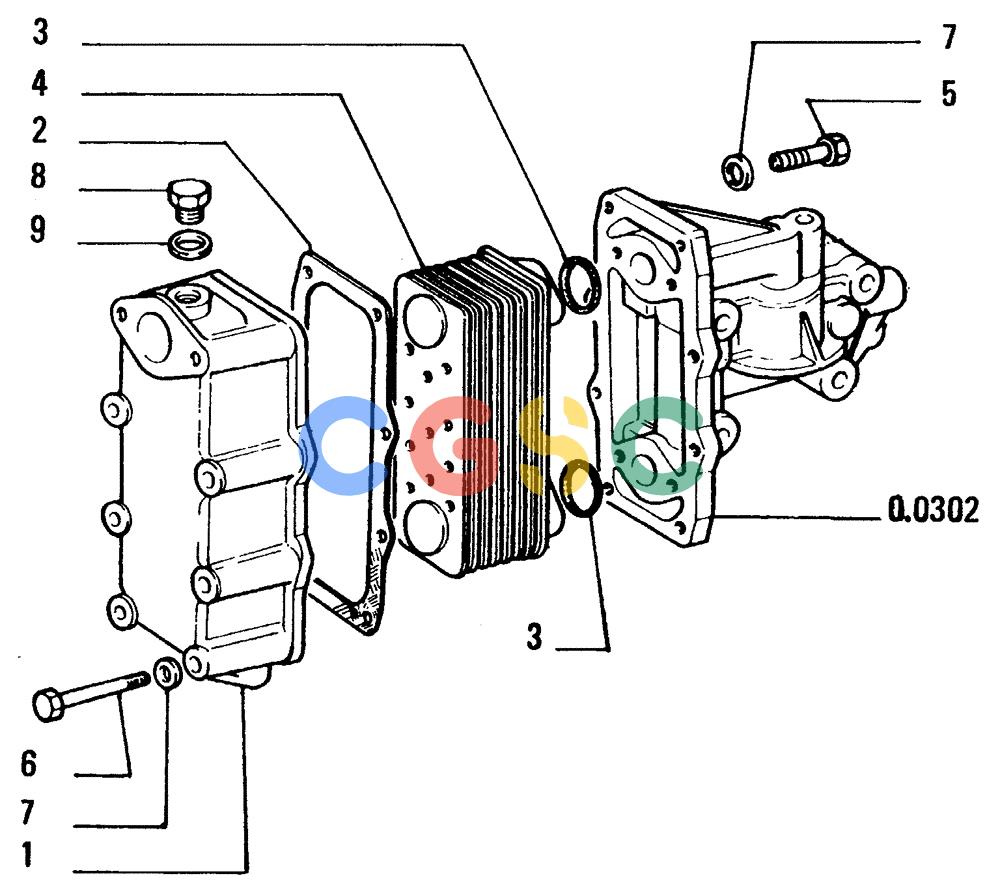

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0310[001]) - HEAT EXCHANGER-ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
389 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4754653 | [1] | BOX | BRECASE |
| 2. | 98412166 | [1] | GASKET,0.8mm Thk | LEC |
| 3. | 14459081 | [2] | O-RING,1.737" ID x 0.103" Width | IMO-132, Cl 7, 1.737" ID x .103" Thk (M44.12 ID x 2.62 Thk) |
| 4. | 4754590 | [1] | HEAT EXCHANGER | BRE Superseded by part number: 98415256 |
| 4. | 4814893 | [1] | HEAT EXCHANGER | LEC Superseded by part number: 4754590 |
| 4. | 61689530 | [1] | HEAT EXCHANGER | BRE Superseded by part number: 98415256 |
| 5. | 16043921 | [4] | BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8 | TTF8x1,25x35 Superseded by part number: 16625734 |
| 6. | 16045421 | [6] | BOLT,Hex, M8 x 110mm, Cl 8.8 | JESBOLT, Hex, M8 x 110, 8.8 |
| 7. | 11193974 | [10] | BELLEVILLE WASHER,Belleville, M8.4 | TTFLOCKWASHER 8,4x22 |
| 8. | 4595833 | [1] | PLUG | MOD |
| 9. | 10263360 | [1] | SEAL,20.3mm ID x 26mm OD x 1mm Thk | TTFWASHER, SEALING, , Copper M20.3 x 26 x 1 |
