纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0313[001]) - HEAT EXCHANGER-TOTQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
574 次

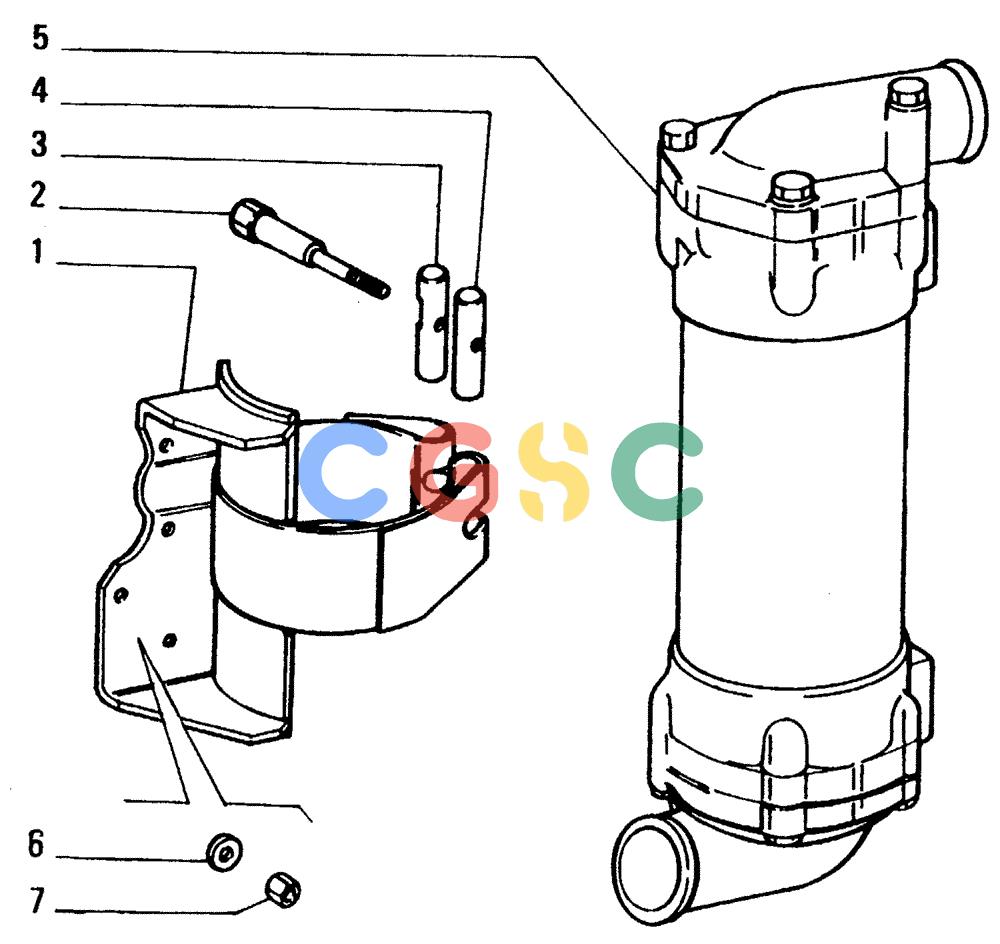

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4773266 | [1] | BRACKET | LECSUPPORT |
| 2. | 4722722 | [1] | SCREW | LEC |
| 3. | 4950479 | [1] | BLOCK | LEC |
| 4. | 4950480 | [1] | BLOCK | LEC |
| 5. | 4845309 | [1] | HEAT EXCHANGER | LEC- ASSEMBLY SEE TAV.2 Superseded by part number: 98417310 |
| 6. | 11198379 | [4] | SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk | TTFWASHER, SPRING, Belleville, M10.5 Superseded by part number: 11198374 |
| 7. | 12164711 | [4] | NUT,M10 x 1.25, Cl 8 | TTF Superseded by part number: 12164714 |
