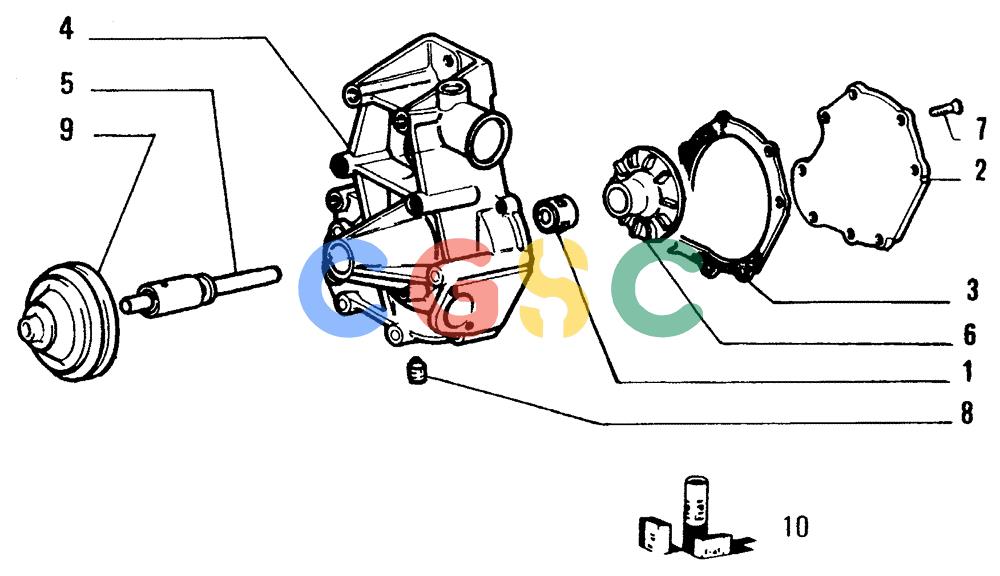

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7302756 | [1] | GASKET | TORBUSHING - IN ALTERNATIVE Superseded by part number: 98487547 |
| 1. | 7302776 | [1] | BRAKE LINING | LECBUSHING - IN ALTERNATIVE |
| 2. | 4711702 | [1] | COVER | BREINTAKE MANIFOLD |
| 3. | 4851441 | [1] | GASKET | LEC Superseded by part number: 4858226 |
| 4. | 4807114 | [1] | BODY | LEC |
| 5. | 4808079 | [1] | BEARING ASSY | TORSHAFT - IN ALTERNATIVE |
| 5. | 4808080 | [1] | BEARING ASSY | TORSHAFT - IN ALTERNATIVE Superseded by part number: 1940105, 1940105, 76030102 |
| 6. | 4807116 | [1] | IMPELLER | LEC |
| 7. | 10356111 | [3] | BOLT | TTF8x1,25x16 Superseded by part number: 13303311 |
| 8. | 13739911 | [1] | SCREW,Hex, M8 x 1.25 x 16mm | LECDOWEL 8x1,25x18 |
| 9. | 4807395 | [1] | PULLEY | LEC |
| 10. | 79094075 | [1] | KIT | LECSEE PAGE 32 Superseded by part number: 76030102 |
