纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0320[001]) - WATER PUMP-ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
905 次

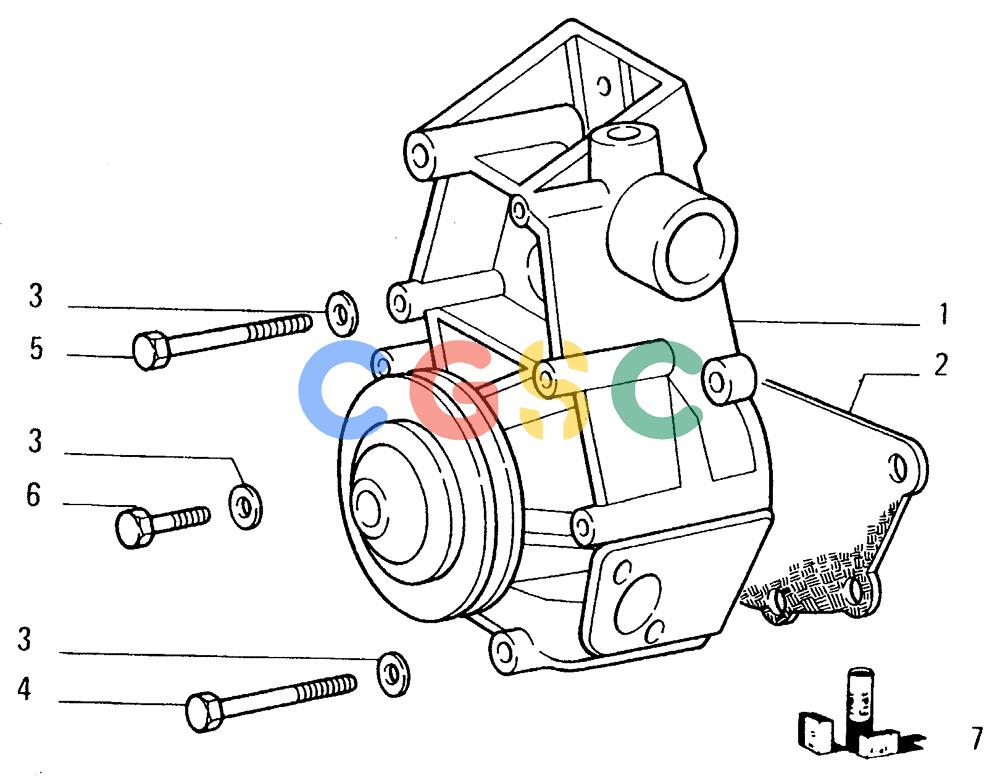

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4807113 | [1] | WATER PUMP | LEC- ASSEMBLY SEE TAV.2 Superseded by part number: 98410023 |
| 2. | 82849265 | [1] | GASKET,0.8mm Thk | LEC |
| 3. | 11198379 | [4] | SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk | TTFLOCKWASHER 10,5x20 Superseded by part number: 11198374 |
| 4. | 15972224 | [1] | SCREW,Hex, M10 x 1.25 x 120mm | MKT10x1,25x120 Superseded by part number: 15972221 |
| 5. | 11343724 | [2] | BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8 | TTFSCREW 10x1,25x65 |
| 6. | 15971924 | [1] | SCREW | MKT10x1,25x105 Superseded by part number: 15971921 |
| 7. | 79094075 | [1] | KIT | LECSEE PAGE 32 Superseded by part number: 76030102 |
