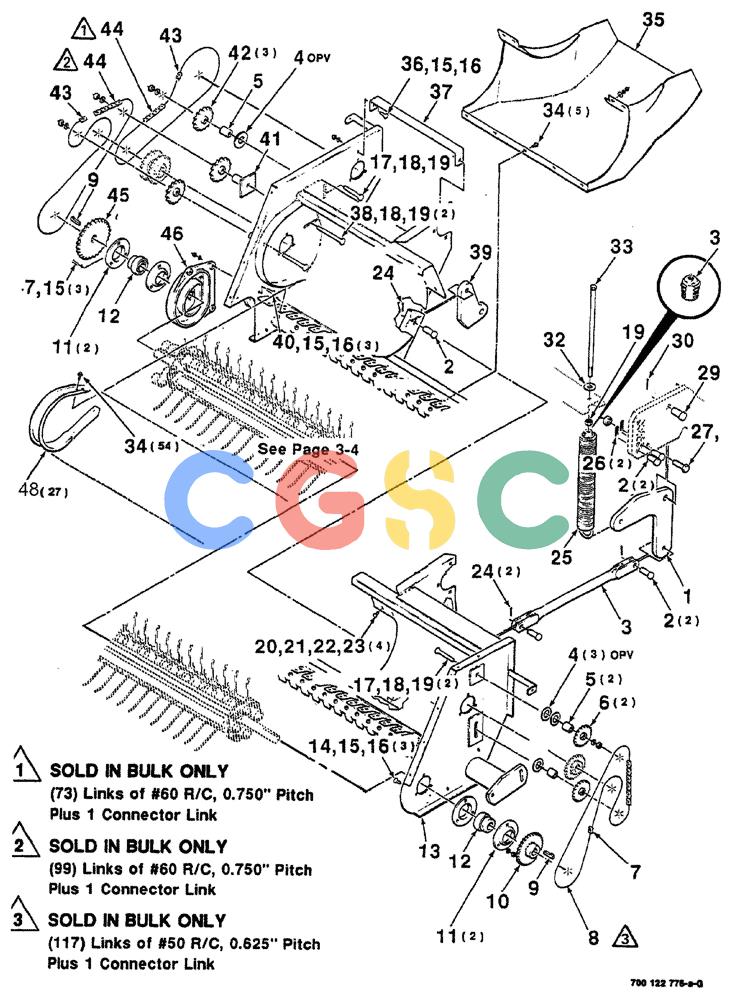

| 1. |
700108643
|
[1] |
SUPPORT
|
HFI
|
| 2. |
A35113
|
[5] |
PIN
|
CAS
clevis 3/4 x 2 inch
|
| 3. |
700108640
|
[1] |
STRUT
|
HFI
WA
|
| 4. |
52175
|
[4] |
BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L
|
CAS
5/8 x 18 gauge NRMB
|
| 5. |
6176655
|
[3] |
BUSHING
|
CAS
|
| 6. |
211623C91
|
[2] |
SPROCKET
|
IH
idler 50B17
|
| 7. |
241-1315
|
[1] |
LINK, CONNECTING
|
CAS
#50 r/c Superseded by part number: 87034815
|
| 8. |
1791D
|
[1] |
CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm
|
IH
roller #50 (10 foot bulk)
|
| 9. |
Q3929
|
[2] |
KEY,Gib, 5/16" Sq x 1 1/2"
|
IH
gib
|
| 10. |
700108635
|
[1] |
SPROCKET ASSY.
|
CAS
WA 50B28
|
| 11. |
617863R1
|
[4] |
FLANGED BEARING
|
IH
bearing
|
| 12. |
700708091
|
[2] |
SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm
|
CAS
spherical Superseded by part number: 47577188, 47066
|
| 13. |
700108576
|
[1] |
FRAME
|
HFI
WA
|
| 14. |
433-612
|
[3] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 15. |
492-11038
|
[10] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 16. |
425-106
|
[7] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 17. |
433-1056
|
[3] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5
|
CAS
5/8-11 x 3-1/2 Superseded by part number: 280563
|
| 18. |
492-11062
|
[5] |
BEARING WASHER,5/8"
|
CAS
Superseded by part number: 86729275
|
| 19. |
425-1010
|
[6] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 20. |
433-512
|
[4] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 21. |
496-21034
|
[4] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 22. |
492-11031
|
[4] |
LOCK WASHER,5/16"
|
CAS
Superseded by part number: 83990583
|
| 23. |
425-105
|
[4] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 24. |
432-820
|
[3] |
COTTER PIN,1/8" x 1 1/4"
|
CAS
Superseded by part number: 87395, 87778232
|
| 25. |
6522700
|
[1] |
SPRING
|
CAS
|
| 26. |
T54573
|
[2] |
PIN
|
IH
0.120 wire Superseded by part number: 87421748
|
| 27. |
413-1232
|
[1] |
BOLT,Hex, 3/4" - 10 x 2", Gr 5
|
CAS
Superseded by part number: 88557
|
| 28. |
230-42112
|
[1] |
LOCK NUT,3/4"-10, GA
|
CAS
3/4-10 Hex
|
| 29. |
480255R1
|
[1] |
HEADED PIN,1" x 2 3/16"
|
IH
clevis 1 x 2
|
| 30. |
432-1224
|
[1] |
COTTER PIN,3/16" x 1-1/2"
|
CAS
Superseded by part number: 80754
|
| 31. |
6845879
|
[1] |
PLUG
|
CAS
spring
|
| 32. |
396-21066
|
[1] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
5/8" bolt size Superseded by part number: 87613283
|
| 33. |
7701808
|
[1] |
BOLT,Hex, 5/8" - 11 x 17", Grade 5
|
CAS
special 5/8-11 x 17
|
| 34. |
409-7512
|
[59] |
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
|
CAS
Superseded by part number: 145913, 72187186
|
| 35. |
700108600
|
[1] |
CHUTE ASSY.
|
HFI
WA
|
| 36. |
434-616
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 37. |
700108683
|
[1] |
SUPPORT
|
HFI
brace
|
| 38. |
433-1080
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5
|
CAS
carriage 5/8-11 x 5
|
| 39. |
700108638
|
[1] |
LINK
|
HFI
hydraulic
|
| 40. |
413-620
|
[3] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187207, 88011
|
| 41. |
700108636
|
[1] |
SUPPORT
|
CAS
WA
|
| 42. |
541857R92
|
[3] |
SPROCKET,15T
|
IH
idler 15T
|
| 43. |
241-1316
|
[2] |
LINK,19.05mm Pitch
|
CAS
connector #60 R/C
|
| 44. |
611362R91
|
[2] |
CHAIN (AG)
|
IH
roller #60 (10 foot bulk) Superseded by part number: 611362R91X
|
| 45. |
6859821
|
[1] |
SPROCKET ASSY.
|
CAS
WA 60B28
|
| 46. |
700108672
|
[1] |
CAM
|
CAS
track Superseded by part number: 700116125
|
| 46. |
700116125
|
[1] |
HOUSING
|
CAS
track
|
| 47. |
413-616
|
[3] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 48. |
700108607
|
[27] |
ANTI-WRAP PLATE
|
CAS
wrapper
|
