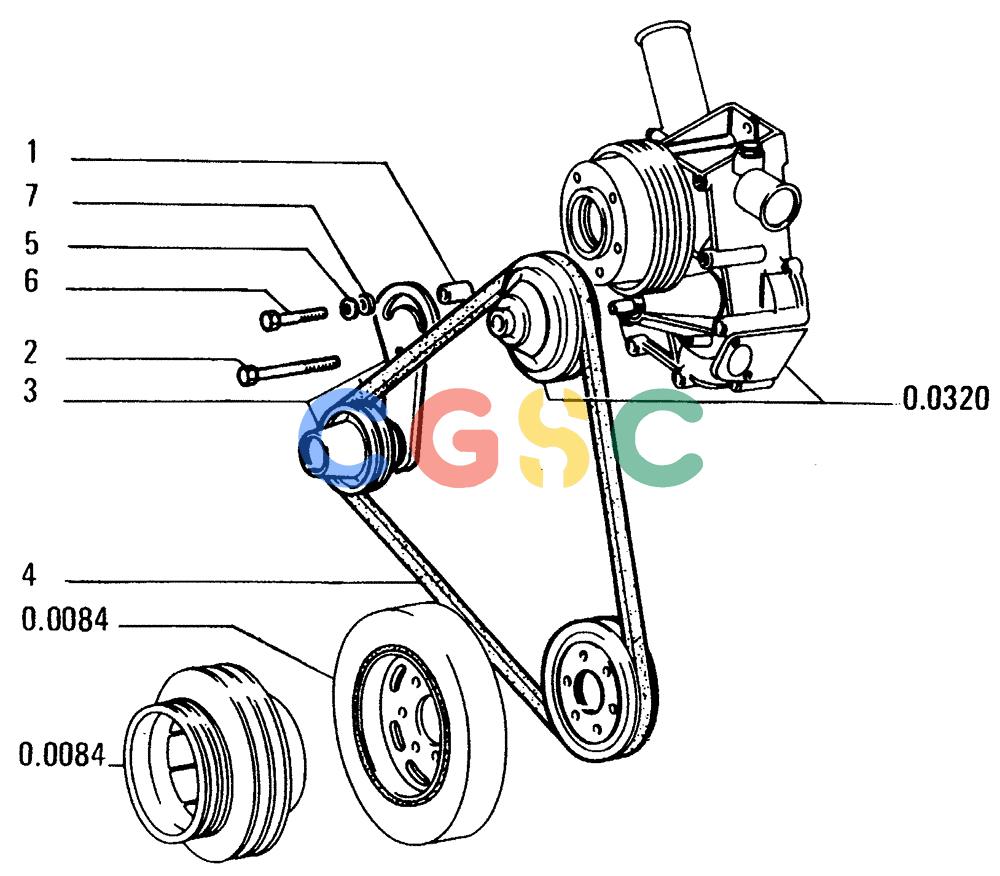

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0340[001]) - CONTROL-WATER PUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
908 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4722301 | [1] | SPACER | LEC |
| 2. | 4735379 | [1] | SCREW | LEC |
| 3. | 4735638 | [1] | BELT TENSIONER | LEC |
| 4. | 4819721 | [1] | BELT | LEC Superseded by part number: 73128581 |
| 5. | 11198379 | [1] | SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk | TTFLOCKWASHER 10,5x20 Superseded by part number: 11198374 |
| 6. | 11288021 | [1] | BOLT,Hex, M10 x 1.25 x 60, 8.8 | HFI Superseded by part number: 11288024 |
| 7. | 12646824 | [1] | WASHER,10.2mm ID x 25mm OD x 2mm Thk | TTFLOCKWASHER 10,2x25 |
