纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0345[001]) - CONTROL-FAN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
162 次

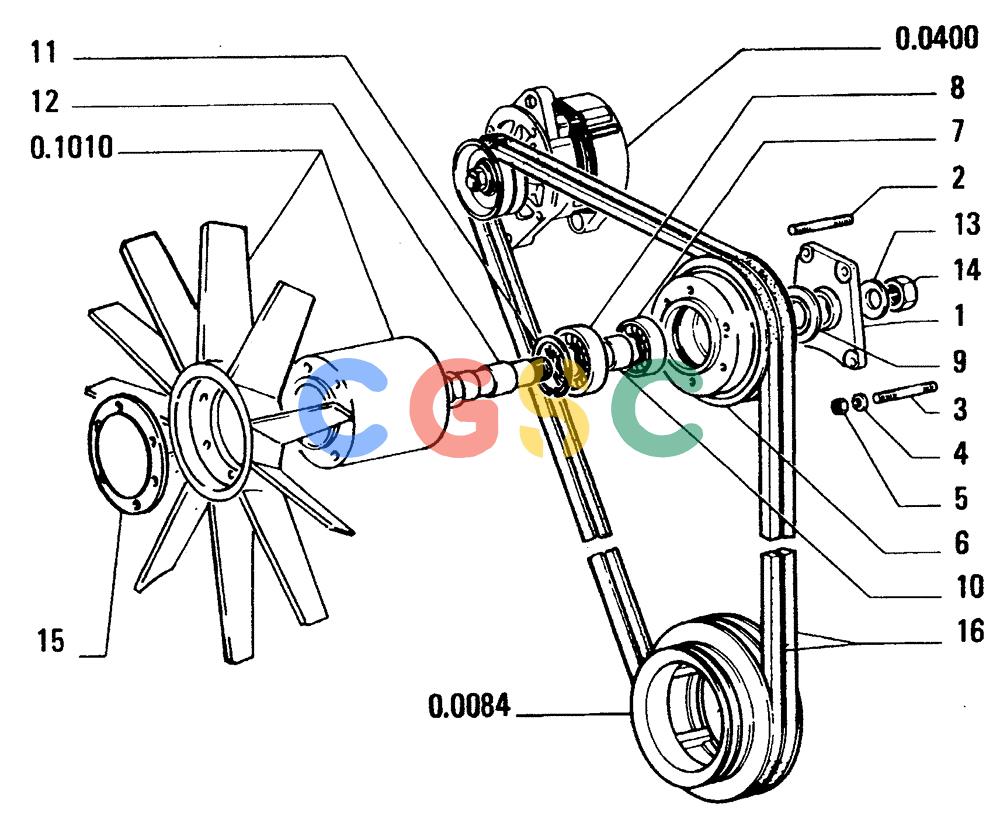

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4721389 | [1] | SUPPORT | LEC |
| 2. | 13449521 | [2] | STUD | MKT10x1,25x40 Superseded by part number: 13449524 |
| 3. | 13449821 | [2] | STUD | MKT10x1,25x50 Superseded by part number: 13449830 |
| 4. | 11198371 | [4] | BELLEVILLE WASHER,Belleville, M10.5 | MKTLOCKWASHER 10,5x20 Superseded by part number: 11198374 |
| 5. | 12164711 | [4] | NUT,M10 x 1.25, Cl 8 | TTF Superseded by part number: 12164714 |
| 6. | 4726907 | [1] | PULLEY | LEC |
| 7. | 4821900 | [1] | BEARING ASSY | LECBEARING Superseded by part number: 28996530 |
| 8. | 4821901 | [1] | BEARING ASSY | LECBEARING Superseded by part number: 28996680 |
| 9. | 4721391 | [1] | SPACER | LEC |
| 10. | 4721392 | [1] | SPACER | LEC |
| 11. | 4727399 | [1] | RING | LECSNAP RING |
| 12. | 4721387 | [1] | PIN,30mm OD x 131mm L | LECSHAFT |
| 13. | 11200471 | [1] | LOCK WASHER | MKTWASHER 21x38 Superseded by part number: 17092874 |
| 14. | 12164421 | [1] | NUT,M22 x 1.5, Cl 10 | MKT22x1,5x18 Superseded by part number: 12164411 |
| 15. | 4722298 | [1] | COVER | LEC |
| 16. | 4813560 | [1] | SET OF BELTS | LECBELT - IN ALTERNATIVE |
| 16. | 4813562 | [1] | BELT | LEC- IN ALTERNATIVE Superseded by part number: 4813560 |
